RADIO 12ZHP FASST 2.4GHZ 6014HS FUTK9301

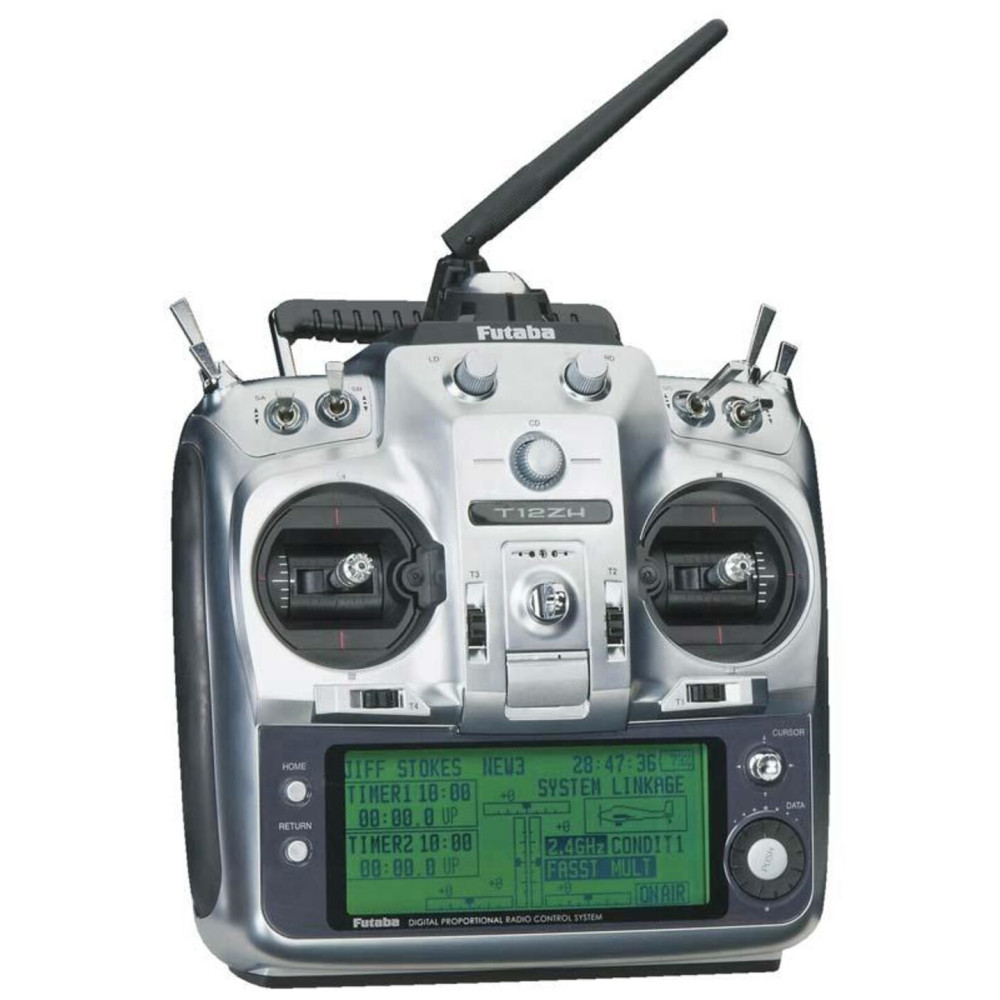

This is the FASST 2.4GHz Futaba 12ZHP Computer Radio on Mode 2 with the R6014FS Synthesized 14-Channel Receiver.

Does not include servos.

This is the helicopter version which will default to heli settings when powered up and does not have a ratcheted throttle stick.

If your transmitter's region code is something other than the United States,the TM-14 Module sold in the United States is not compatible with this transmitter. As such, it is necessary to purchase the TM-14 module which matches the region code of the transmitter.

The Futaba 12ZHP shares many features with the 14MZ such as Dual Internal Processors, Real-Time Response with 2048PCM, Fully Synthesized Receiver, Servo Grouping, Variable Dual Rates and Quad-Bearing Gimbals

**** While you can obtain a 50MHz module for this radio, it can only be ****

******* purchased through the service center at 217-398-8970 opt 2 *******

**Additional Technical Info Will Be Added When It Becomes Available.**

FASST FEATURES:

Futaba's FASST (Futaba Advanced Spread Spectrum Technology) shifts very quickly virtually eliminating signal conficts and interruptions unlike other 2.4GHz systems that only stay on one or two frequencies

Dual antenna diversity enables FASST system to automatically and seamlessly select the best reception between the two antennas built into the receiver ensuring that the aircraft stays under constant control of transmitter regardless of altitude

Pre-Vision Packet Screening technology scans incoming data for potential problems and applies sophisticated error correction techniques for solid impenetrable link with model

Easy Link system features a unique ID code in the transmitter that links to the receiver insuring that receiver only follows commands from this transmitter-with over 134 million possible codes there is no chance for a conflict

No hassle Fail Safe programmed through transmitter-no complicated set-up steps or binding plugs

When performing a ground check, the Power Down function allows modeler to reduce power from up to 50+ paces away-like retracting the antenna on a conventional transmitter

Purpose built custom IC chips for key functions; no off-the-shelf IC chip

GENERAL FEATURES:

Dial-N-Key jog dial with joy stick button allows cursor movement in four directions for very user friendly programming

PCM G3 2048 resolution is "backwards compatible" with 1024 PCM, and FM/PPM

Supports 13 different wing types, 3 tail types and 3 motor types

Supports eight flight conditions (seven plus the default)

Stores memory for up to twenty-five models 245 model memory available with optional 32MB Compact Flash Card

Six factory-set Variable Dual Rate (VDR) curves can be assigned to any function in any flight condition configuration

Variable Dual Rates (VDR) and Expo can be combined so they are automatically activated when a function is activated, no program mixing required

Dual Internal Processors allow one processor to be devoted to flying functions while the other processor focuses on non-flight functions such as input and communications

7.4V 2200mAh Lithium Ion transmitter battery for long operating times

R6014FS Receiver;

Retains G3 2048 resolution and Futaba Real Time Response from the 72MHz version.

Simple one-touch binding - no plugs to mess with or lose

A full range system for all aircraft from giant scale to

Park Flyer applications-no need to buy separate receiver for specific aircraft

Dual Antenna Diversity allows 2.4GHz FASST Futaba transmitter to select the best reception between the two receiver antennas with no signal loss

Rubber grommets installed where antennas exit to eliminate stress and fraying of the two antenna wires

Servo Grouping;

Multiple servos controlling a single function can be set up through the transmitter and then plugged into differently adjustable receiver channels (even non-consecutively) without needing a separate servo synchronizer for mixing.

Quad-Bearing Gimbals for smoothest motion and response, stick tension and detent are adjustable

Seven color LED indicator

INCLUDES:

12ZHP Synthesized Transmitter (not available separately)

FASST TM-14 Module

R6014FS Receiver

FLT2F2200 7.4V 2200mAh Lithium Ion Transmitter Battery

LBC-1D5 Lithium Ion Transmitter Battery Charger

NR4F NiCd 1500mAh Receiver Battery

FBC-32B Wall Charger for Receiver Battery

DSC Cable

Switch Harness with Charge Cord

Padded Aluminum Case with two Keys (not available separately)

Woven Orange Neck Strap

One each 1.5mm and 2.5mm Hex Wrenches

Instruction Manual

REQUIRES:

Charging batteries before use

Servos of modeler's choice, suggested servos for use with the 12Z include the Futaba S9154 Digital High Speed Servo and the Futaba S9255 Hi-Torque Heli Digital Servo

SPECS:

Transmitter;

Operating System: 2-stick, 12 channels, PCM-G3 synthesizer system

Modulation: PCM-G3, PCM 1024, or FM/PPM switchable

Power Supply: 7.4V FLT2F2200 Li-Ion Battery

Current Drain: 500mA average

R6014FS Receiver;

COMMENTS:

This system can also be operated on 72MHz or 50MHz by purchasing the Transmitter Antenna, and the 72MHz Module (#HSP78899) or the 50MHz Module (#HSP79189)-both must be purchased through Hobby Services) and using a compatible receiver.
