RADIO 10CH 72MHZ R3110DPS HELI FUTJ9151

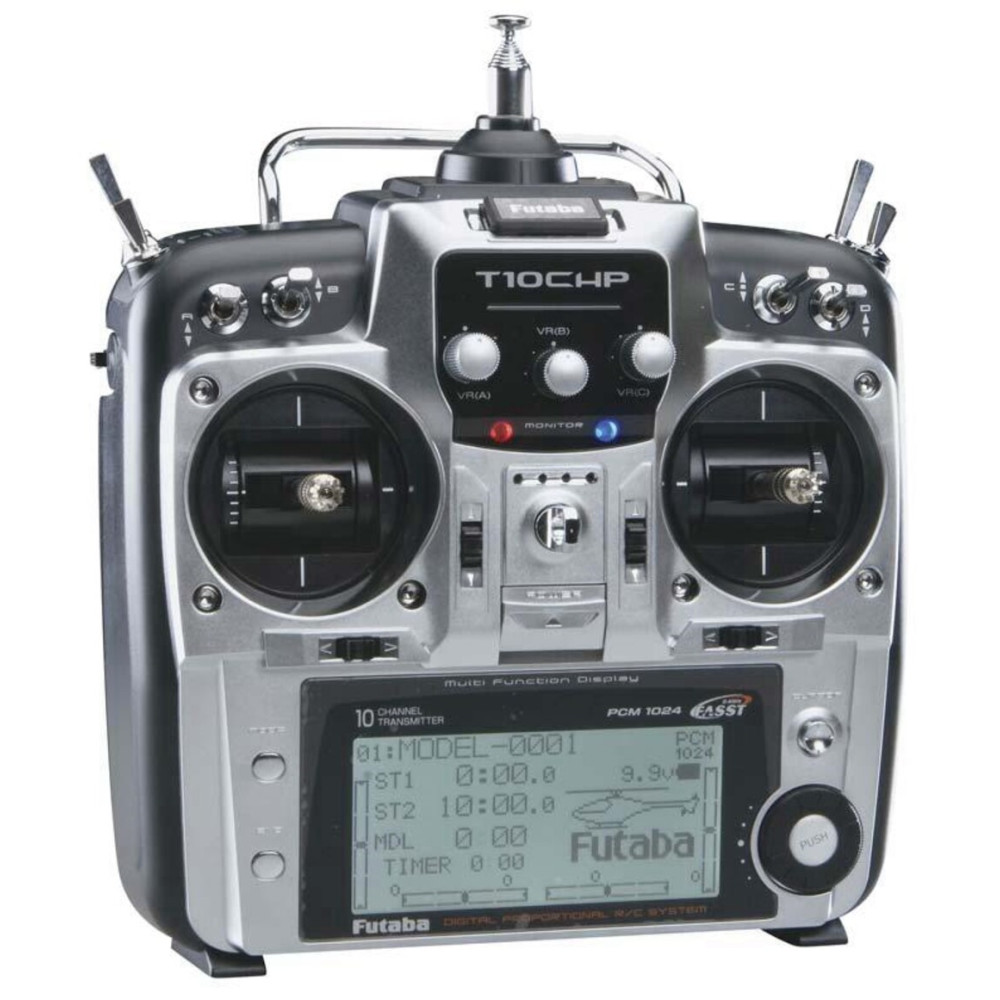

This is the Futaba 10 CH 10 Channel RC System with the R3110DPS Receiver.
No servos included.

This version is Mode 2-Left Hand Throttle and Right Hand Elevator, USA Standard

This is the helicopter version which will default to helicopter settings, with mode 2 stick operation when powered up and has a non-ratcheted throttle stick.

FEATURES:

Futaba's FASST (Futaba Advanced Spread Spectrum Technology) shifts very quickly virtually eliminating signal conficts and interruptions unlike other 2.4GHz systems that only stay on one or two frequencies

Enhanced airplane, heli and glider software

Big 160 x 72 LCD with backlighting, adjustable contrast and auto-off 15 model memory (expandable with optional camPACs)

Smart Switch Technology (SST) logic switches allows activation of a functon when specific switch and/or stick positions occur

Modes 1-4 selectable, modes 3-4 programmable

Assignable functions/switches

Six programmable mixes (4 linear/(2) w/5-point curves

Accepts separate gyro sensitivity, governor speed and servo travel rates for up to 4 flight modes and automatically changes all three when flight mode changes

Eight factory defined mixes: Hover-Throttle, Hover-Pitch, Throttle-

Needle, Governor, Offset, Revo (5pt) Delay and Throttle Mix (ail/ ele/rdr)

Gyro menu

Eight swash plate types with graphics

Swash Plate AFR

Four 7-point throttle curves and five (including throttle hold)

7-point pitch curves

Adjustable High/Low pitch setting

Two independent gyro settings

Three adjustable Idle-up conditions

"Full Functionality" trainer system (trainer cord not included)

One year limited warranty

INCLUDES:

10C Transmitter

TP-FSM RF Module

R3110 DPS 10 channel Receiver

NT8S700B 700mAh Transmitter Battery

FBC-19B4 120V AC TX, RX Wall Charger

Switch Harness

9" Aileron Extension

Neck Strap

Screwdriver

REQUIRES:

Servos depending on type of aircraft

SPECS:

Transmitter;

Power Supply: 9.6V NT8S700B NiCd battery

Receiver;

Intermediate Frequency: 10.7MHz & 455kHz

Power Requirement: 4.8V NiCd battery

Current Drain: 40mA

Size: 1.27 x 2.17 x 0.80" (32.2 x 55.2 x 20.3mm)

Weight: 1.25oz (35.5g)

Channels: 10

COMMENTS:

This radio is also available in airplane default mode
