AVMAP ENGIBOX EMS ROTAX UX0EMS10AM

The EMS for ROTAX engines:

• Engine Monitor + Mobile App + Instant Support Service*
• With an update rate of five times per second, Engibox measures and displays the engine parameters to warn you instantly if any measurement exceeds the engine limits.
• Data are recorded and stored in the internal memory (up to 160 hours). Download the free Engibox mobile App to get Instant Support Service*.

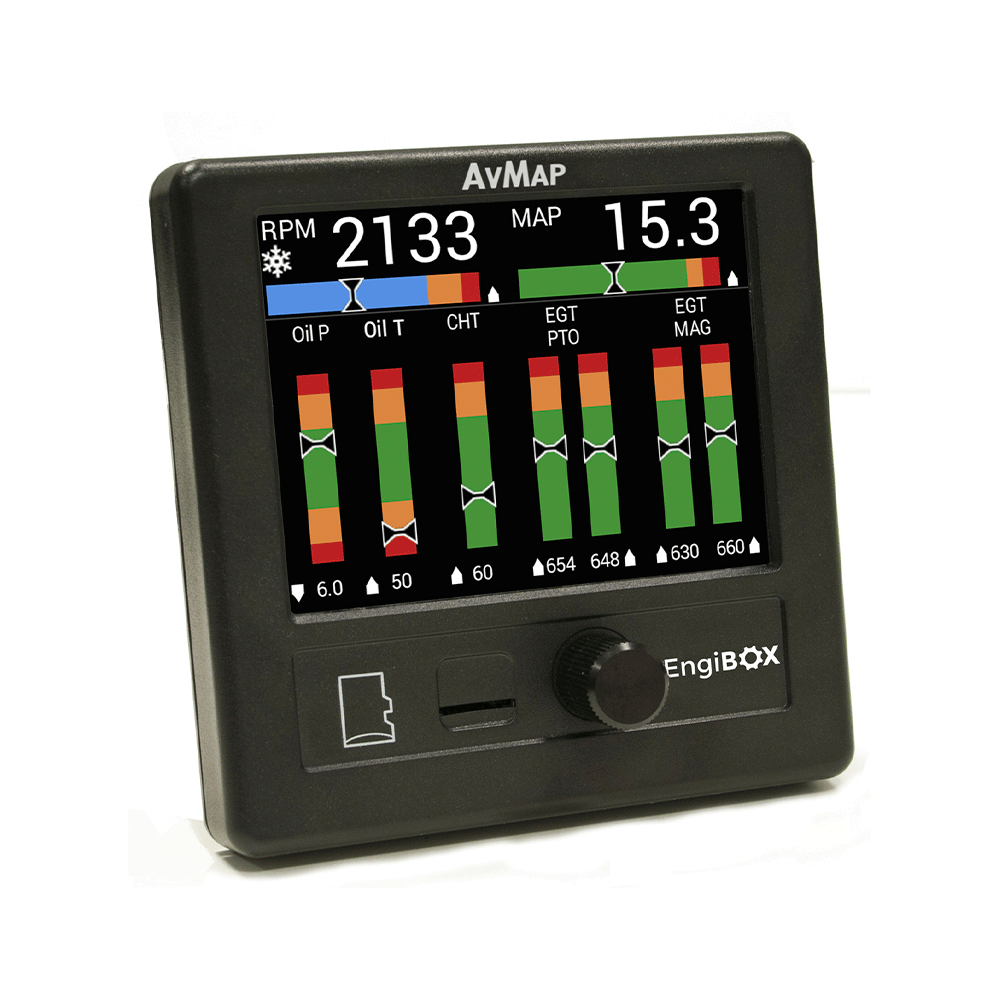

• EngiBOX is a light and compact engine monitor displaying
  Exhaust Gas Temperature (EGT)
• Revolutions per Minute (RPM)
• Manifold Pressure (MAP)
• Oil Pressure
• Oil Temperature / Air Temperature
• Cylinder Head Temperature (CHT) / Coolant Temperature (CT)
• *Instant Support Service is currently offered by Luciano Sorlini SPA in: Albania, Bosnia and Herzegovina, Croatia, Cyprus, Gibraltar, Greece, Israel, Italy, Lybia, Malta, Pakistan, Portugal, San Marino, Serbia, Spain, Turkey, Vatican City

EngiBOX is compatible with the following sensor probes:

• 4 x INPUT Thermocouple (type K)
• Exhaust Gas Temperature (EGT) (2 Stroke / 4 Stroke)
• Cylinder Head Temperature (CHT) (2 Stroke)
• 2 x INPUT Thermoresistance (PT-100)
• Air Temperature, Coolant Temperature (2 Stroke)
• Oil Temperature, Cylinder Head Temperature / Coolant Temperature (4 Stroke)
• 1 x INPUT Oil Pressure pick-up (4-20 mA Rotax 456-180 or equivalent)
• Oil Pressure (4 Stroke)
• Note: Measuring range: 0.75 to 10.75 bar
• 1 x RPM pick-up
• Measuring range: 100 to 9990 rpm
• 1 x INPUT Manifold Pressure
• Measuring range: 200 to 2500 hPa
• Note: sensor present on EngiBOX

Specifications:

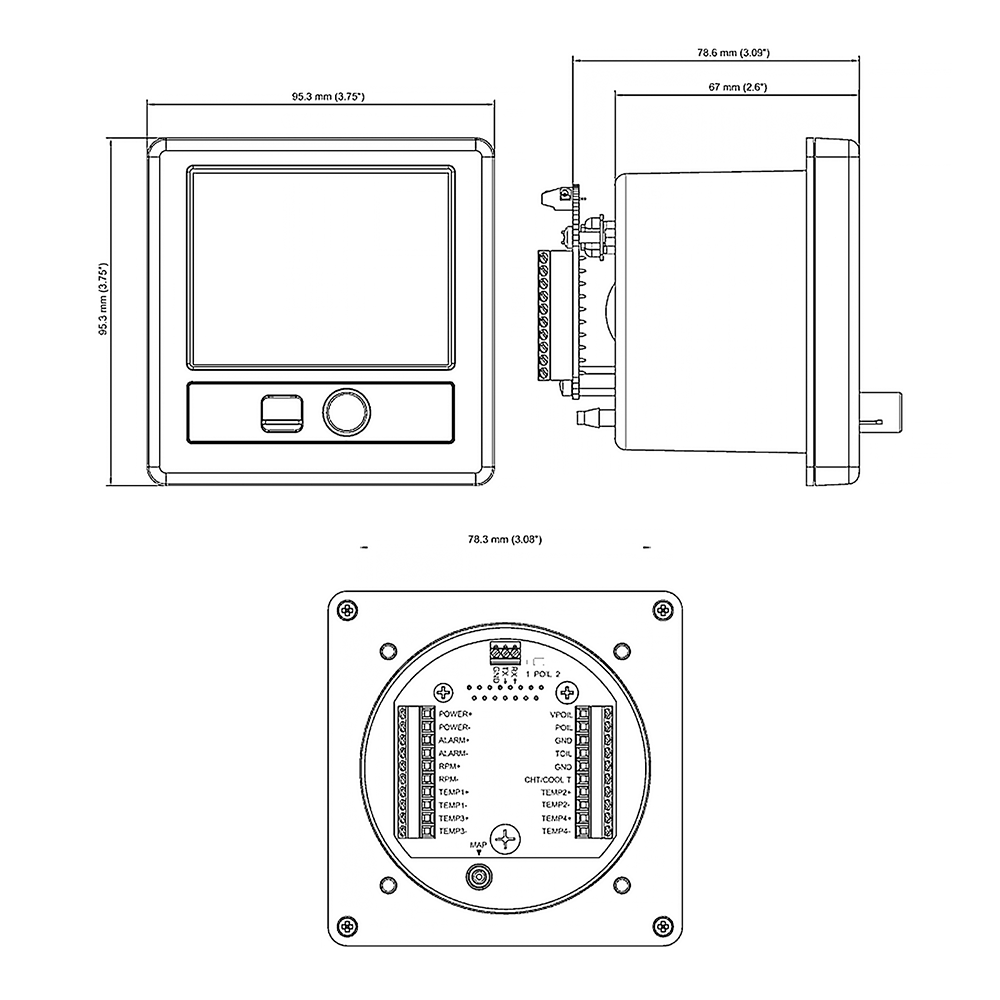

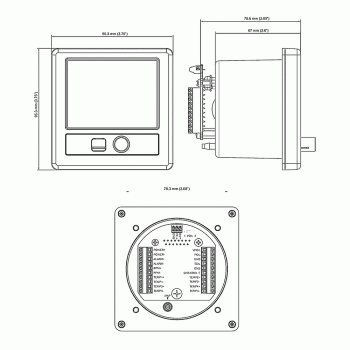

• Dimensions 95 x 95 x 88 mm
• Fitting standard 3-1/8" panel hole
• Weight: 250 g
• Display: 3.5” colour LCD, with anti reflective coat 320×240 pixels, 500 cm/m2
• Micro SD slot
• Real Time Clock
• DB15 connector with antivibration lock system to support: 4 x Thermocouples sensor
• 2 x PT100 sensor 1 x 4-20 mA pressure sensor 1 x RPM 1 x Serial connection (Probes Not Included)
• Manifold pressure sensor
• Bluetooth Low Energy
• Power Input range: 10-35 VDC
• Current consumption @ 12VDC: 150 mA MAX
• Operating Temperature range: -20°C / +70°C

Software:

• Wizard driven engine Initialization
• Engine data displayed in two alternative views
• Graph page for each engine parameter
• Clock page including flight time, total lifetime, time since overhaul
• Data registration on internal memory and data export to micro SD or EngiBOX mobile App

Compatible Engines:

• 2 Stroke Air cooled Rotax 447 UL SCDI Rotax 503 UL DCDI
• 2 Stroke Liquid cooled Rotax 582 UL DCDI Rotax 618 UL DCDI
• 4 Stroke Liquid cooled Rotax 912 DCDI series Rotax 912S DCDI series Rotax 914 DCDI series
