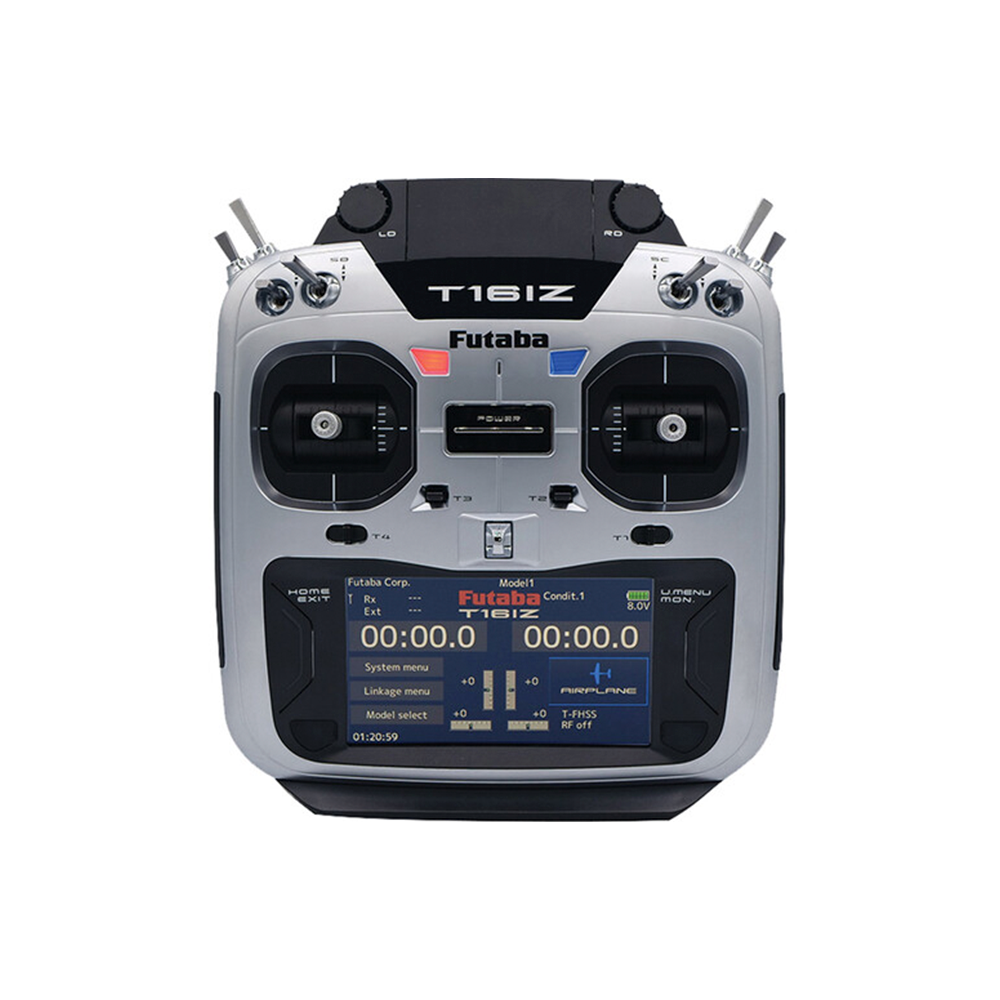

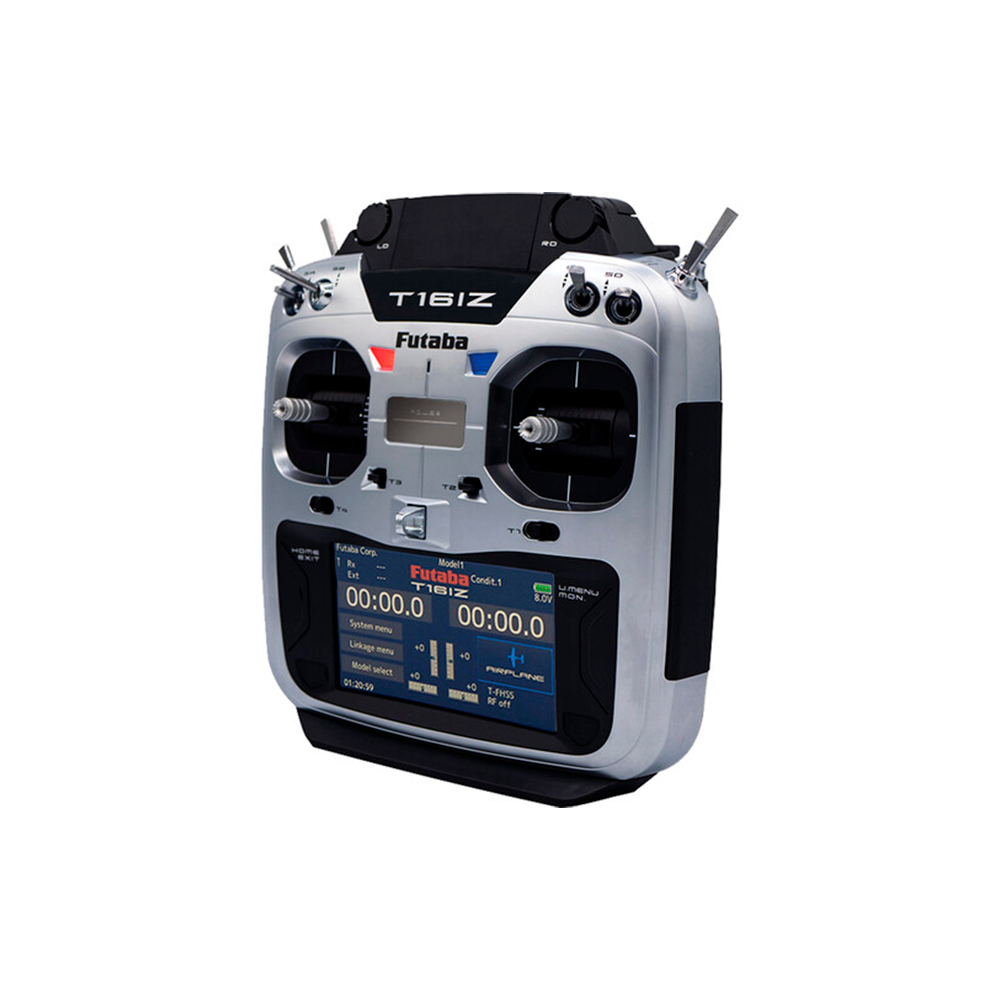

RADIO 16IZH TX ONLY 2.4GHZ HELI 01102349-1

FASTEST SYSTEM:

The 16IZ transmitter adopted the "FASSTest" two-way communication system. Receiver data can be verified on your transmitter. FASSTest is a dedicated 2.4GHz system with a maximum of 18 channels (16 linear channels + 2 channel switch).

S.BUS2 SYSTEM:

When using the S.Bus2 system, various servos, gyroscopes and telemetry sensors are easily installed with a minimum of cables.

CONTROL

FROM USB SIMULATOR: The T16IZ offers USB C compatibility for simulator control when used with the Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:

T16IZ has an upgraded 4.3 inch HVGA backlit color LCD touch screen. The screen is transflective, which allows for indoor and outdoor visibility.

MULTI SUPPORT:

T16IZ supports multiple near antenna/charging port. It allows accessories to be mounted using an M3 type screw.

Voice telemetry:

The T16IZ allows audible telemetry data to be read aloud to facilitate understanding of crucial parameters during flight.

SECURE DATA (SD CARD):

Model data, music files, voice files and image files can be stored on the optional microSD card. The microSD card is also used when updating the T16IZ software/features.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):

High capacity 2S Lithium Polymer battery provides longer flight time.

EDITION:

The touch panel and two enter keys let you edit your template in whatever way is easiest for you.

FUNCTIONS:

The internal response time processor. Most mixing functions are operated by curves which provide very precise settings.

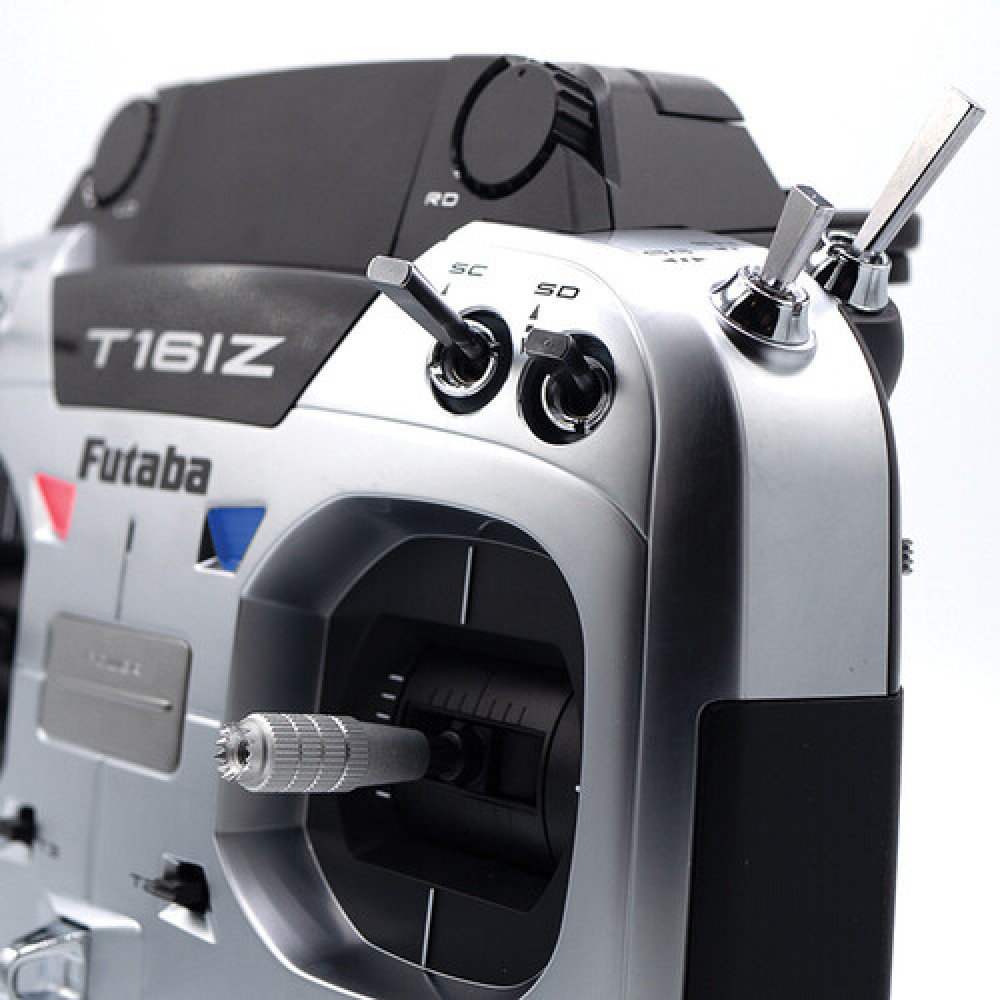

STICK :

Each stick features our reliable single ball bearing for each axle. With our high cycle potentiometer, this allows for finer, more accurate operation.

VIBRATION FUNCTION:

Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7108SB:

The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver with two-way communication.

CONTENTS

YOUR T16IZ (PACKAGESTED WITH A S.BUS RECEIVER)

TRANSMITTER SPECIFICATIONS

TRANSMITTER FREQUENCY:

2.4 GHz band

OPERATING SYSTEM: System

2-Stick, 18 channels, 2.4GHz FASSTest / FASST / T-FHSS / S-FHSS

POWER SUPPLY:

LT2F2000B 7.4V lithium polymer battery

R7108SB

SIZE:

24.9mm x 47.3mm x 14.3mm

WEIGHT:

12.0 g
