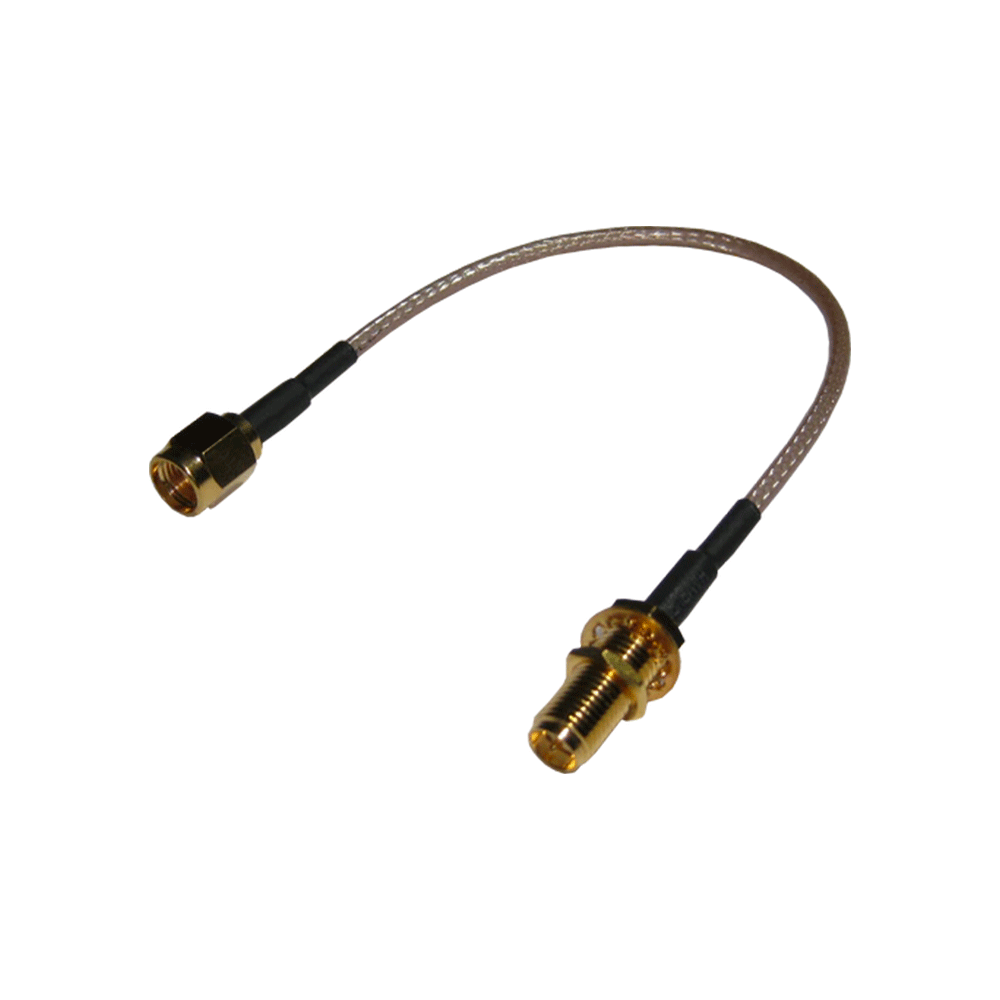

HEX RF EXTENSION CABLE - RPSMA(M)-RPSMA(F) 15CM RF021

This is an RF extension cable with RPSMA male/female terminations.

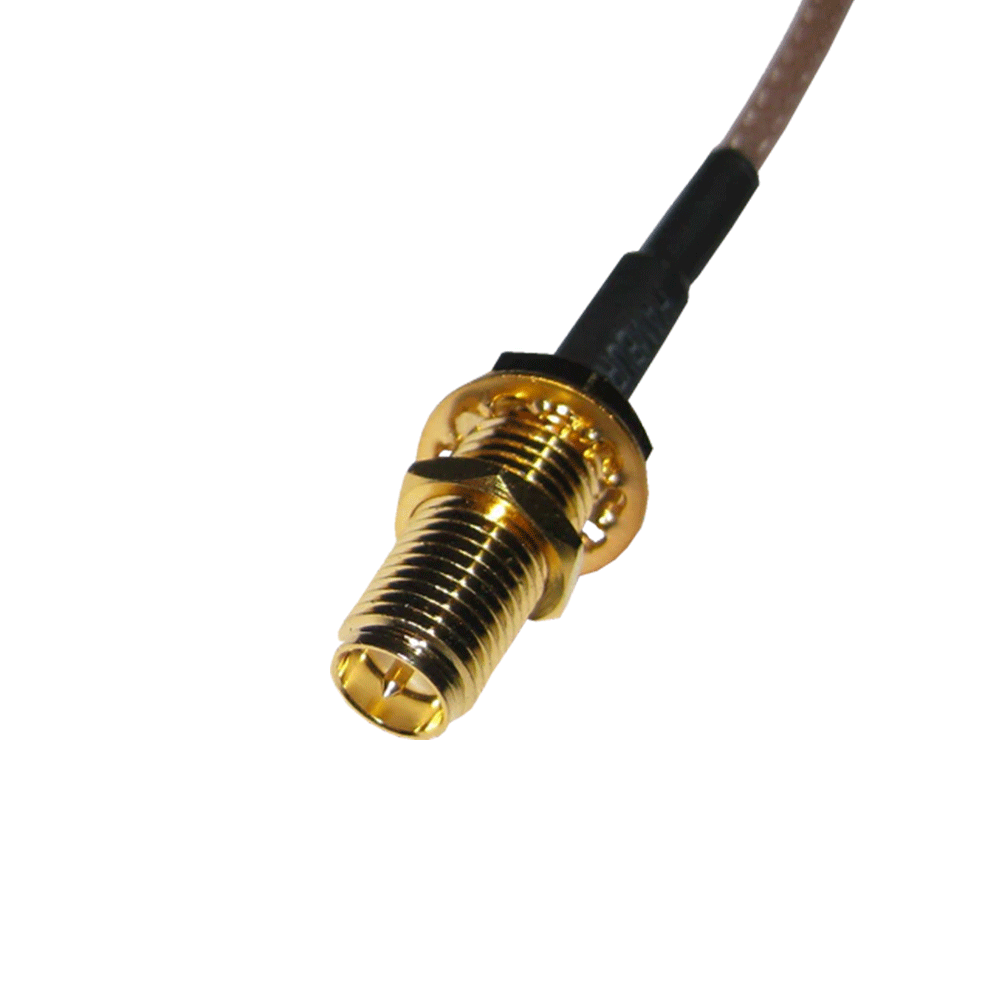

It has a bulkhead fitting on the RPSMA(F) end to allow mounting through panels to get the best antenna location.

The bulkhead fitting will allow approximately a 6mm thick wall to be penetrated, with allowance for the lock washer, nut and terminating cable/antenna to be connected on the other side.

They can be connected end to end to make custom lengths (losses will be added together on subsequent cable lengths.

Specifications:

• Total length: 17.7 cm ( 6.96 in )
• Insertion loss @ 915 MHz : 0.25 dB - typical
• Insertion loss @ 2450 MHz : 0.4 dB - typical
• Insertion loss @ 5550 MHz : 0.71 dB - typical
• Cable type : RG316
• Cable thickness : 2mm
• Weight : 9.3g ( 0.33 oz )
