Product information "Hex Technology Hexsoon 40A PDB inkl. 5V und 12V BEC"

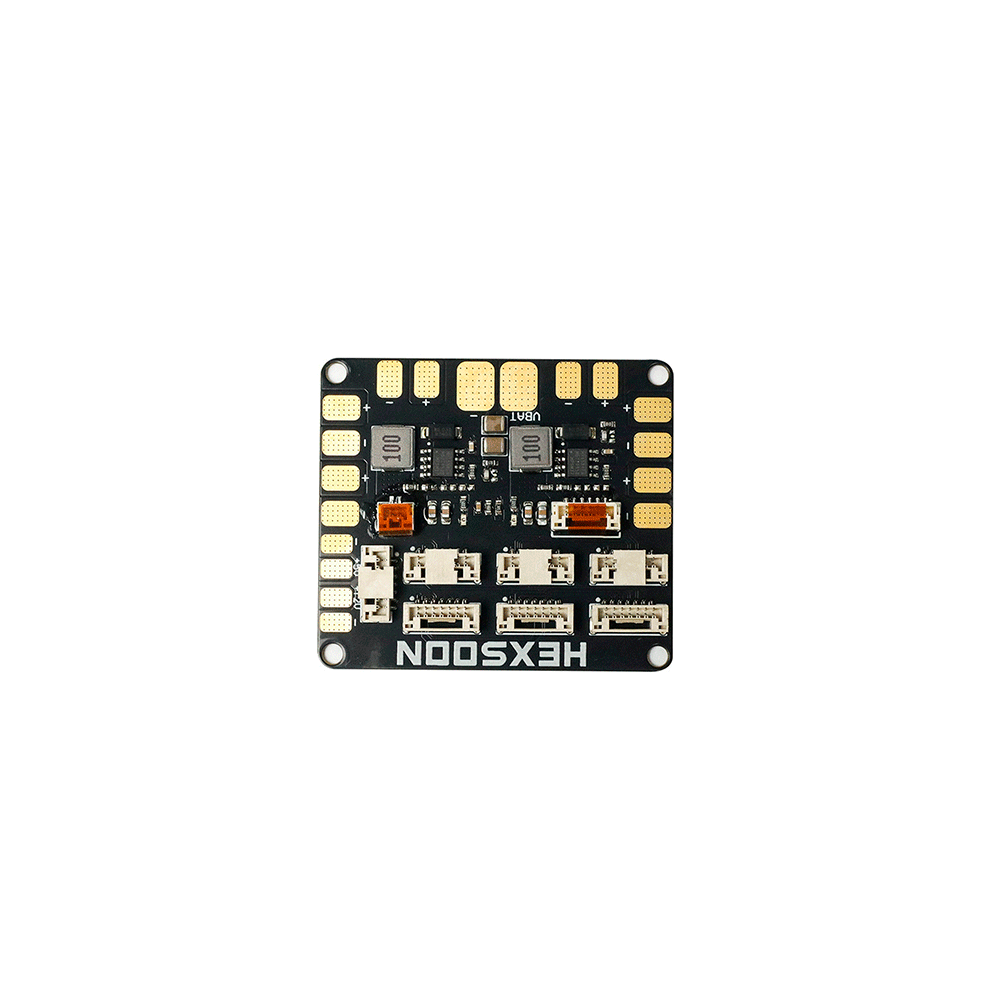

Hex Technology Hexsoon 40A PDB incl. 5V and 12V BEC
Compact PDB with 2x integrated BECs.

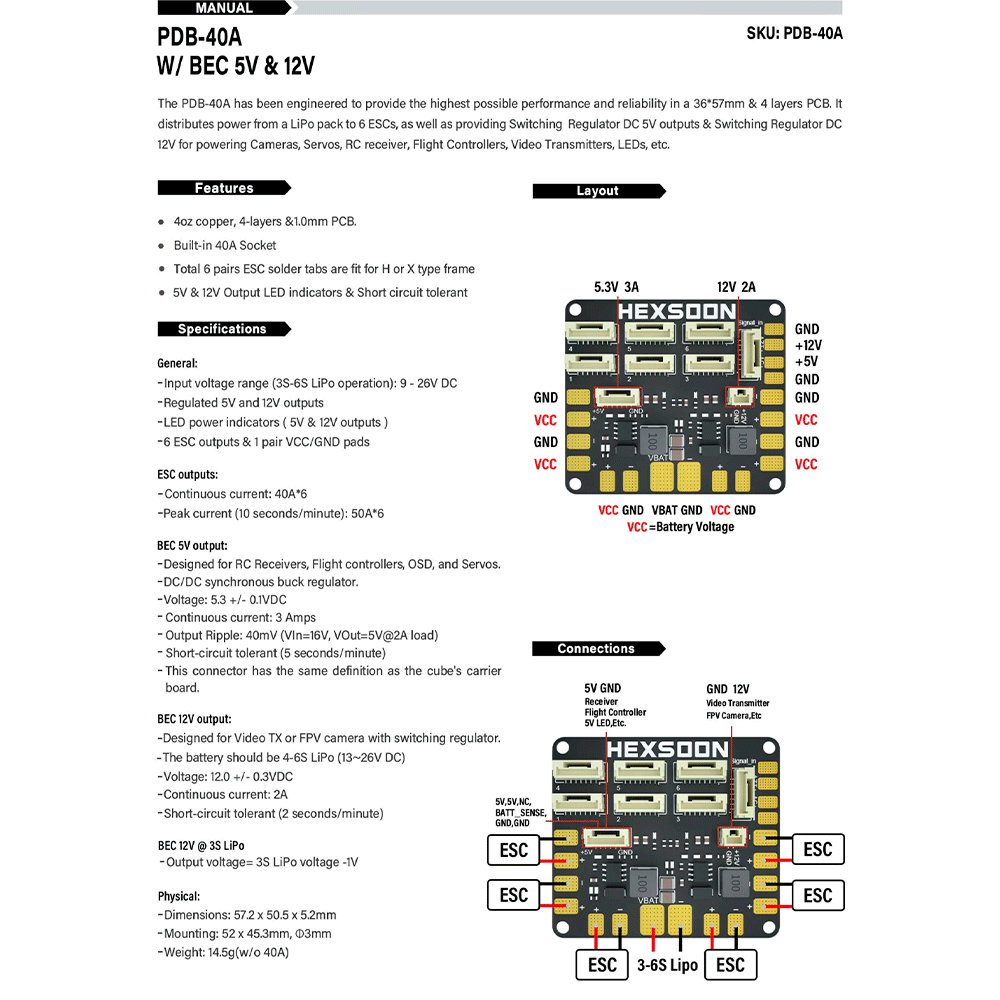

The full technical data can also be found in the figure below.
Technical Data PDB:
- Dimensions: 57.2 x 50.5 x 5.2mm
- Weight: 14.5g
- Continuous load PDB: 6x25A (6x40A peak)
- BEC 5V, max 3A
- BEC 12V, max 2A
Scope of delivery:
1x HS011 PDB (no cables or connectors are included)
