Introduction

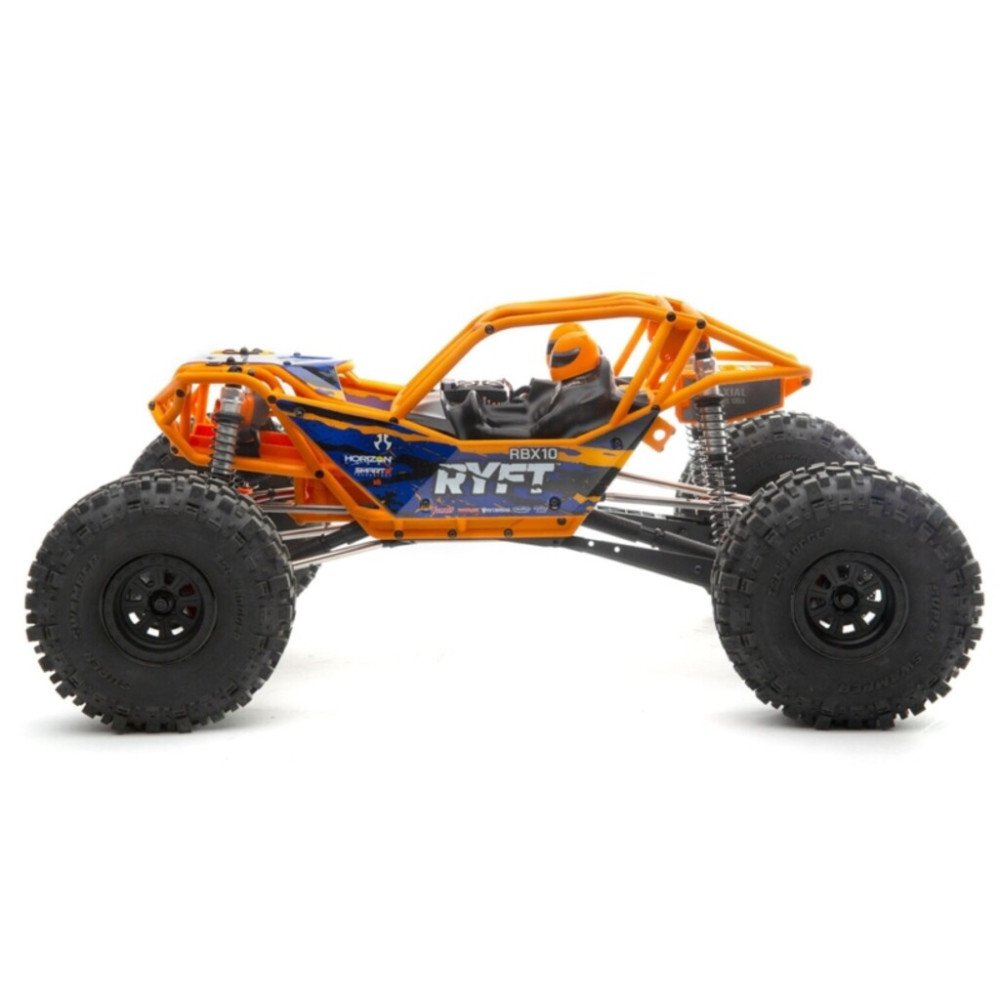

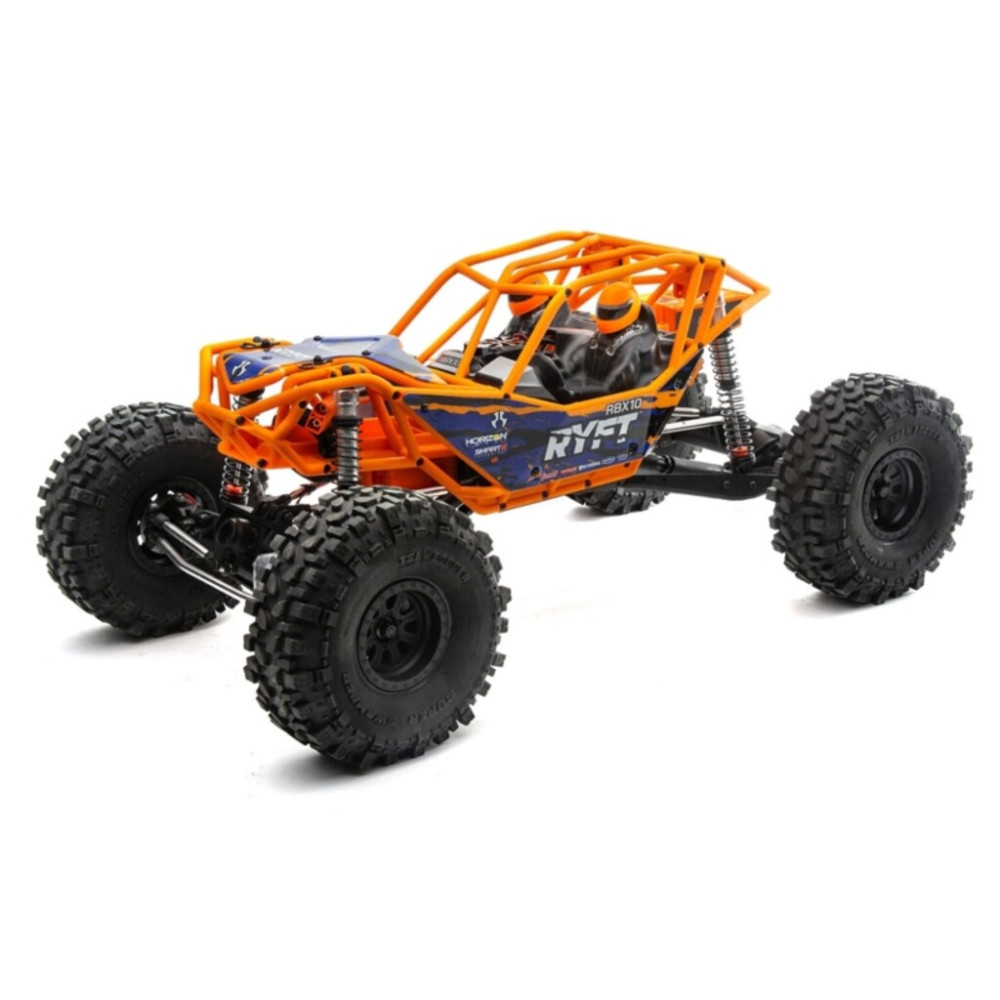

Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD. This ready-to-run vehicle lets any RC driver experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

Features

  • Solid axles front and rear with universal axle joints
  • Robust tube chassis design
  • Strong powertrain with 4S-capable brushless motor
  • Full-time 4WD transmission
  • Licensed Raceline wheels and Interco TSL (Three Stage Lug) Bogger tires
  • Long travel front and rear shocks
  • Waterproof 15kg servo

Overview

The RBX10™ Ryft™ 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at the high speeds produced by a strong powertrain featuring a 4S-capable, 2200Kv brushless motor. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and metal differential cover. Licensed Interco TSL Bogger tires on Raceline wheels, aided by long travel front and rear shocks, do their part to tame wild off-road tracks. These features, along with a full-time 4WD transmission, make the RBX10™ Ryft™ a fun vehicle to send over the trails at full throttle.

Exclusive Spektrum™ technologies, such as Smart telemetry and AVC® traction control, help even new RC drivers enjoy unstoppable performance from the RBX10™ Ryft™ 4WD. Its Spektrum™ DX3™ radio uses DSMR® technology for superior range, response, and interference resistance. The radio is also fully compatible with the Smart telemetry potential of the vehicle's Spektrum™ Firma™ 130A Smart ESC. When using a Spektrum™ Smart LiPo battery, you'll stay aware of on-board battery capacity with only a glance at the transmitter's handy voltage level indicator. When the voltage gets low, an alarm will sound.

The DX3™ radio and SR6100AT receiver also support the on-demand traction control of Spektrum™ AVC® (Active Vehicle Control®) technology — included here for the first time in an Axial® RTR vehicle. With an AVC® system, you can dial in extra stability as needed when climbing hills or launching ledges without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!

The Axial® RBX10™ Ryft™ 4WD is ideal for beginner to intermediate RC enthusiasts who are interested in the rock bouncing style of off-road driving over trails, dirt, gravel, rocks and more. It's available with a striking orange or black factory-applied finish and requires nothing except a battery and charger.

Video Overview



SPEKTRUM DX3 2.4GHz DSMR TRANSMITTER
SPEKTRUM™ DX3™ 2.4GHz DSMR® TRANSMITTER

The included Spektrum™ DX3™ radio features exclusive DSMR® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential of the vehicle's installed Spektrum™ Firma™ 130A Smart ESC. Use a Spektrum™ Smart LiPo battery and you can follow its capacity at a glance on the DX3 transmitter's voltage level indicator. When the battery level gets low, an alarm will sound.



SPEKTRUM<sup>™</sup> FIRMA<sup>™</sup> 130A SMART ESC
SPEKTRUM™ FIRMA™ 130A SMART ESC

The feature-packed, waterproof Firma™ 130A Smart ESC delivers power and intelligence all-in-one — no additional vehicle modules or links required. Compatible with 2S to 4S LiPo input, this brushless ESC gives your RBX10™ Ryft™ the ultimate drive while feeding important telemetry data straight to your DX3™ transmitter in real time.



SPEKTRUM SR6100AT DSMR AVC/TELEMETRY RECEIVER
SPEKTRUM™ SR6100AT DSMR® AVC®/TELEMETRY RECEIVER

Built around frequency-agile DSMR® technology, the Spektrum™ SR6100AT 6-channel receiver delivers superb range and response. It also features patented Spektrum AVC® (Active Vehicle Control) and full-range telemetry capabilities.



AVC<sup>®</sup> (ACTIVE VEHICLE CONTROL)
AVC® (ACTIVE VEHICLE CONTROL®)

The DX3™ radio system supports the on-demand traction control of Spektrum™ AVC® (Active Vehicle Control®) technology. With an AVC® system, you can dial in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!



CUSTOM TUBE CHASSIS
CUSTOM TUBE CHASSIS

The Axial® RBX10™ Ryft™ was designed and styled with the life-size rock bouncers in mind. Its proven, high-strength composite plastic is engineered to withstand the hard knocks of rock bouncing.



FRONT AND REAR SOLID AXLES
FRONT AND REAR SOLID AXLES

The RBX10™ Ryft™ 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles and the metal differential cover.




4-LINK SUSPENSION
4-LINK SUSPENSION

The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications.



Product Specifications

Approximate Assembly Time No assembly required
Ball Bearings Full set
Battery Sold Separately
Battery Input Lead IC5
Body Screen printed with applied decals
Brakes Integral with ESC
Bushing Material Metal
Charger Sold Separately
Chassis Injection molded plastic
Completion Level Ready-To-Run
Differential Bevel gear
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Front Track 12.75" (323.8mm)
Power Type Electric
Gear Pitch 32-pitch
Ground Clearance 3.25" (82.5mm)
Motor Size 3660, 2200Kv
Motor Type Brushless - Sensorless
Pinion 17T
Product Height 8.75" (222 mm)
Product Length 21.5" (546 mm)
Product Weight 7.26lbs (3.29kg)
Product Width 12.75" (324 mm)
Radio Included
Rear Track 12.75" (323.8mm)
Receiver Included
Scale 1/10
Servos Included
Shock Type Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm)
Speed Control Included
Spur Gear 53T
Suspension Solid axle 4-link
Technology AVC
Tire Tread Interco TSL Bogger
Tire Type Off-road
Vehicle Type Rock Racer
Water-Resistant Yes
Wheelbase 15.25" (387.35mm)
Wheel Color Black
Wheel Type Raceline Monster
Wheel Width 1.6 in (40.64mm)
