CARRO TRAXXAS UDR UNLIMITED DESERT RACER 6S 4WD TSM TQI FOX 85086-4

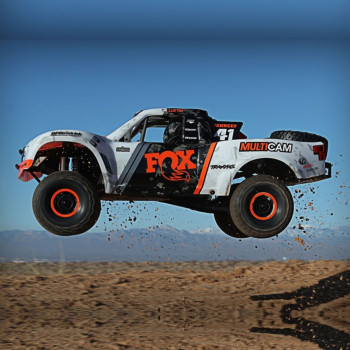

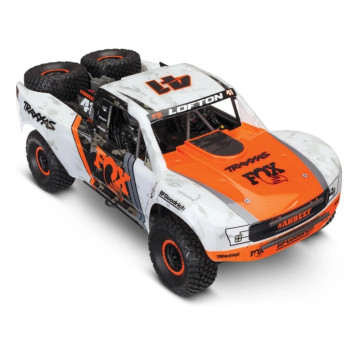

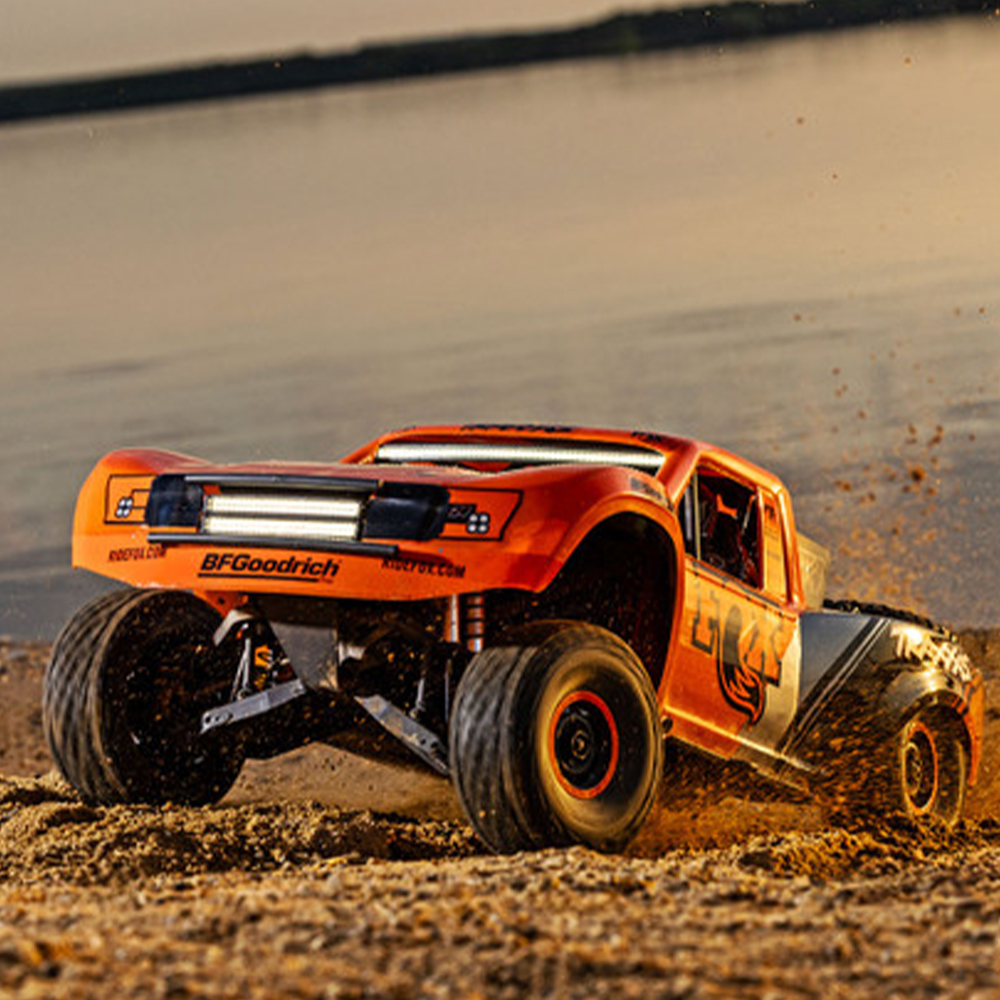

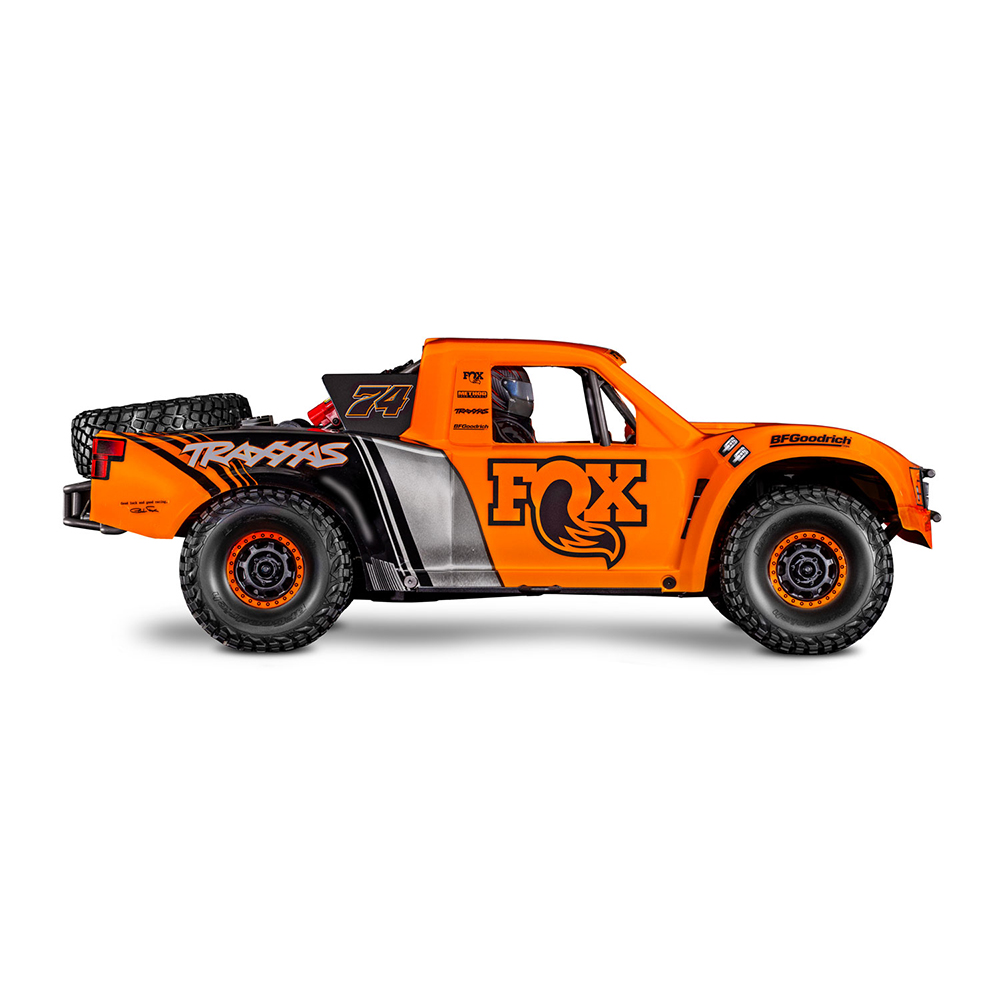

This is the Traxxas Unlimited Desert Racer "Fox" Style UDR 6S RTR 4WD Electric Race Truck, along with TQi 2.4GHz Radio & LED Lights is Race Truck is a true to scale 4-wheel drive desert race truck.

The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function. Attention to detail captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.

The performance of this versatile race truck is now complemented by a high-intensity light from the rugged waterproof LED lighting system. A high-voltage amplifier powers 204 individual LEDs for brilliant light while tightly regulating the voltage to eliminate flickering and dimming. The rear light bar features class lights and smart brake lights that work when brakes are applied in either direction.

Features:

VXL-6s™ Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire

Velineon® 2200kV Brushless Motor

• 4-pole 2200kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation

Up to 50+ mph with Two 3s LiPo Batteries

Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Large Pro-Scale™ Body with Highly Detailed Replica Parts

• Heavy-duty truck body mounts to chassis in multiple locations
• Strong and functional tube frame mimics full-size off-road racers
• Detailed interior cabin with driver figures
• Replica brake calipers and discs with integrated 17mm wheel hubs

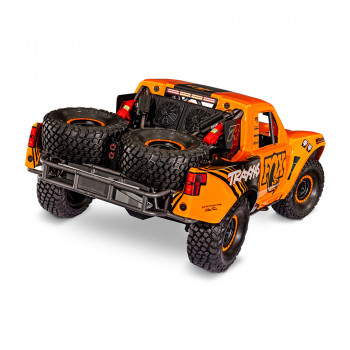

• Two fully-functional spare tires and functional spare driveshaft
• Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
• Realistic side plates mount to tube frame

Chassis

• Composite inverted tub design
  • Makes maintenance easier
  • Lowers center of gravity (CG) for improved handling
  • Allows easy access to components
• Tough skid plates protect critical components
• Fully integrated tube frame for scale appearance and added rigidity
• Reinforced bumpers to absorb impacts
• ESC battery plugs hard mounted to chassis

Innovative Battery Compartment

• Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
• Opens from underneath without removing body
• Fixed oversized battery strap locks batteries securely into place
• Separate skid plate to protect batteries

Suspension

• Provides scale looks and authentic off-road driving dynamics
• Tough independent double-wishbone front suspension with captured rod ends
• Triangulated 4-link rear suspension with solid rear axle (patent pending)
• Tough composite trailing arms
• Steel upper links with 3 optional positions for suspension tuning
• Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
• Realistic and functional front and rear sway bars
• Detailed functional limit straps on rear axle

Steering

• Chassis mounted #2075X metal-gear servo
• Dual bellcrank design with bearings and integrated servo saver
• Solid non-adjustable steering links for rugged durability

Drivetrain

• Steel CVDs (front) with 6mm stub axles
• Steel straight axle (rear)
• Oil-filled limited slip front differential
• Locked steel spool (rear)
• Heavy-duty splined front driveshaft
• Fixed-length steel rear driveshaft

Transmission

• All-steel gear direct drive transmission
• Torque-Biasing Center Drive™
• Removes as a single piece for easy maintenance
• Fixed-pin gear mesh system

Wheels and Tires

• Replica BFGoodrich® KR3 off-road tires
• Beadlock-style 17mm dual-diameter wheels

Sealed Ball Bearings

Hex Hardware with Rust-Resistant Black Oxide Coating

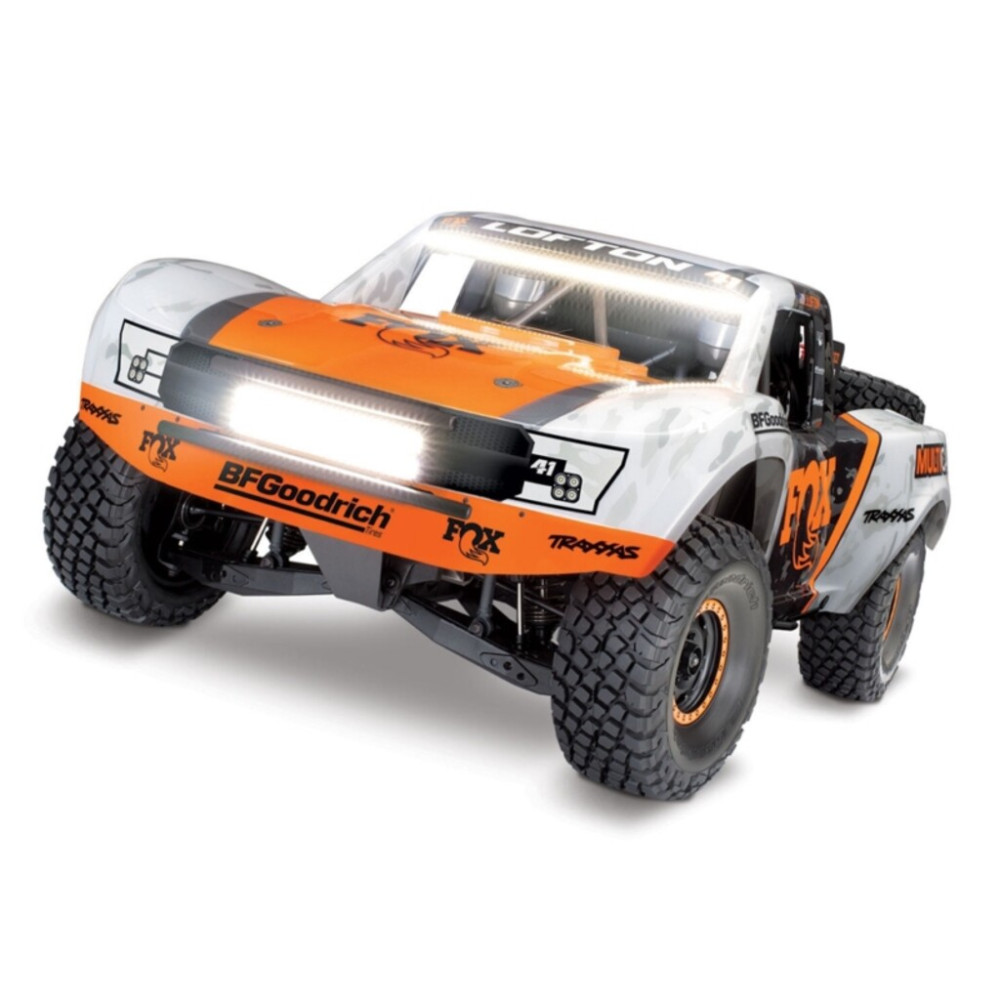

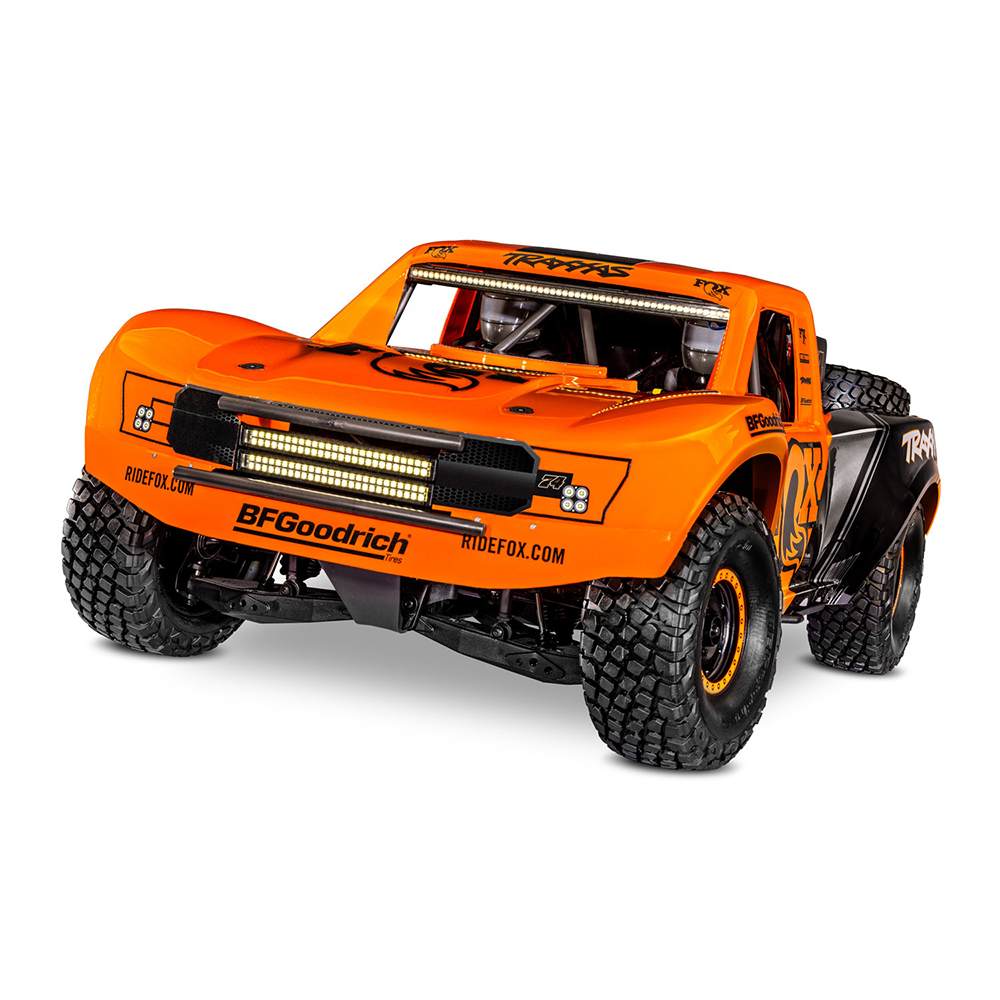

High-Voltage LED Lights

• Dual straight LED bumper-mounted LED light bars (52 LEDs each)
• Curved roof light bar (52 LEDs)
• Multifunction red and amber brake light/class light bar
• High-voltage 8-channel power amplifier for intense, brilliant LED lighting
• Regulated output for stable lighting performance
• (no flickering or dimming as the battery voltage changes)
