SAVOX SERVO SH-0350 6V 2.6KG .16S 12G
- Código: 361798
- Marca: SAVOX
- Estoque: Disponível
-
$14,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
SH-0350
Savox - SH-0350 Digital DC Motor Servo, Composite Gear
Features:
- Leading edge digital servo technology
- Strong 3-Pole Brushed motor
- Accurate and fast response
- Fine resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Composite gears
Technical specifications:
Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V - 6.0V
Servo Type / Size: Mini
Motor Type: Brushed 3-Pole Motor
Gear Material: Composite gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Speed 60°/Sec @ 6.0V: 0.16 Sec/60°
Torque kg/cm @ 6.0V: 2.6 Kg/cm

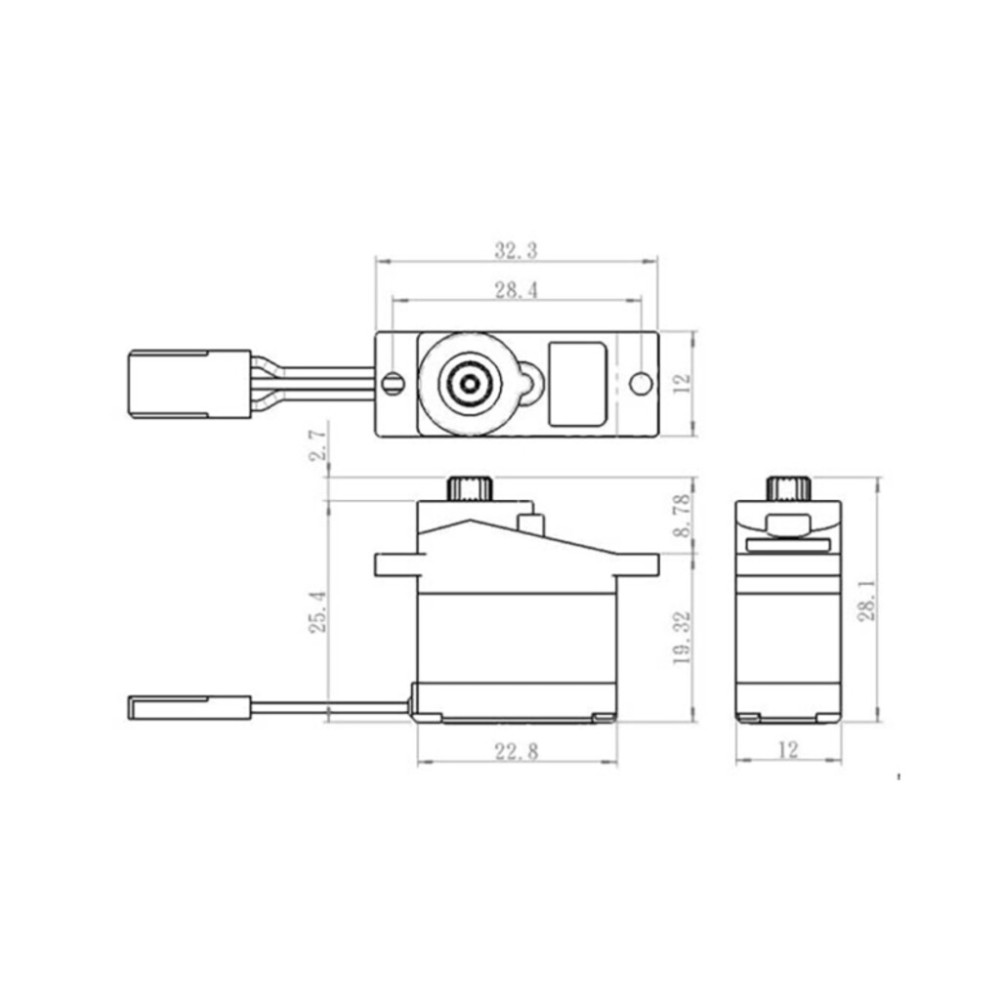

Length (mm): 22.8 mm
Width (mm): 12.0 mm
Height (mm): 25.4 mm
Weight (g): 12.3 g
Connector type: JR
Spline size: 21T Spline
| Servo Technology: | Digital Low Voltage |
| Servo Case: | Aluminium - Composite |
| Input Voltage (V): | 4.8V - 6.0V |
| Servo Type / Size: | Mini |
| Motor Type: | Brushed DC Motor |
| Gear Material: | Composite Gears |
| Ball Beared: | Ball Beared |
| Servo Power - Torque Kg/cm: | 1 - 5 Kg/cm |
| Servo Speed 60°/sec: | 0.16 - 0.20 Sec/60° |
| Length (mm): | 22.8 mm |
| Width (mm): | 12.0 mm |
| Height (mm): | 25.4 mm |
| Weight (g): | 12.3 g |
| Speed 60°/Sec @ 6.0V: | 0.16 Sec/60° |
| Torque kg/cm @ 6.0V: | 2.6 Kg/cm |
| Connector type: | JR |
| Spline size: | 21T Spline |
