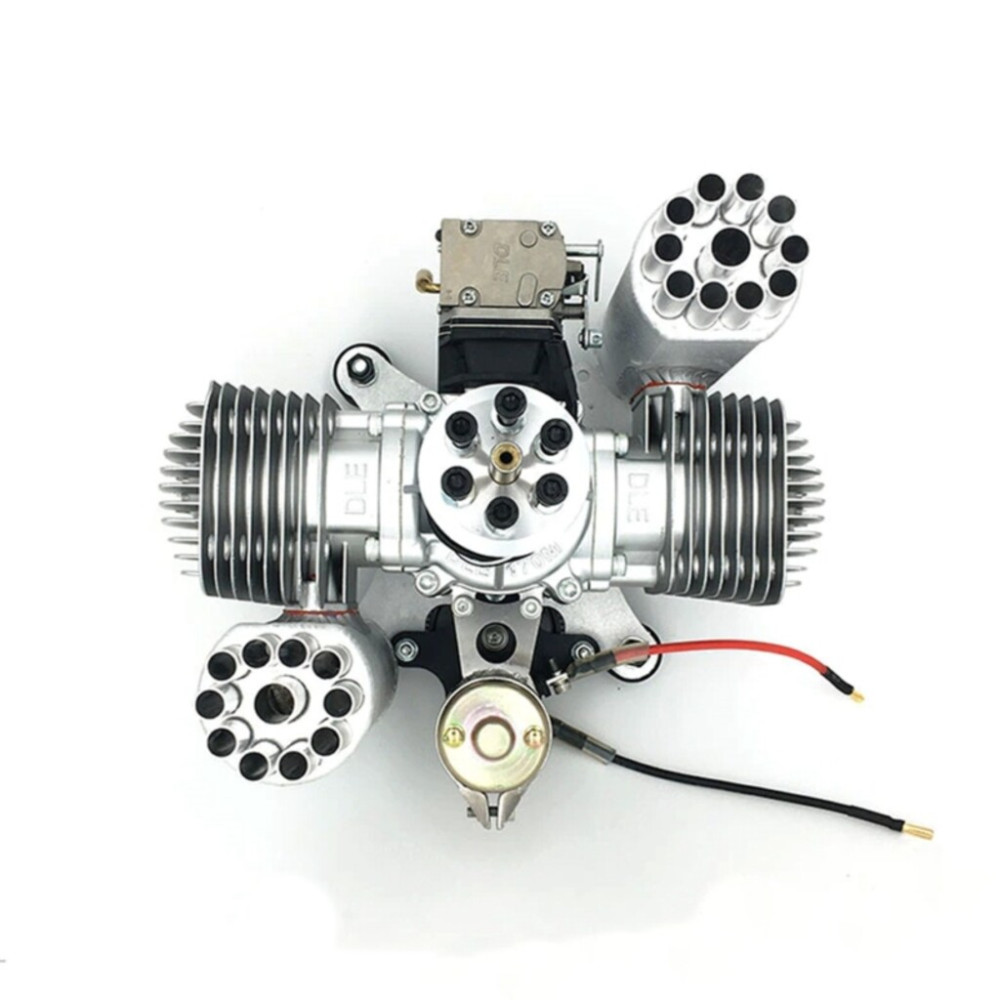

MOTOR DLE ENGINE 170CC PARAMOTOR W/AUTO START DLE170ML

DLE 170cc Information:

This is the latest version (DLE had upgraded the piston and piston ring).

The DLE-170 is an aircraft engine, which combines excellent quality at a very reasonable price. The exceptionally powerful DLE-170 is very well suited to giant scale aircraft.

DLE has anthorised Austars to provide very good after sales support and should any spares be required they are readily available.

Specifications:
Displacement: 170 cc (10.37 cu in)
Bore: 2.05 in (52 mm)
Stroke: 1.57 in (40 mm)
Weight: 9.06 lbs (4.11 kg)
RPM Range: 1,100-9,000
Output: 17.5 hp @ 9,000 rpm
Requires: unleaded petrol, oil, ignition battery & propeller
Includes: electronic ignition, mufflers, mount, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 30 x 12 & 32 x 10

Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulators.)
Compression Ratio: 9.5:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (individual): Engine: 7.83 lbs (3,550 g); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160 g)

Performance:

Static thrust: 35/31.5 kg at 100/1800 meter Altitude.1 year factory warranty covers defects in workmanship and materials.
