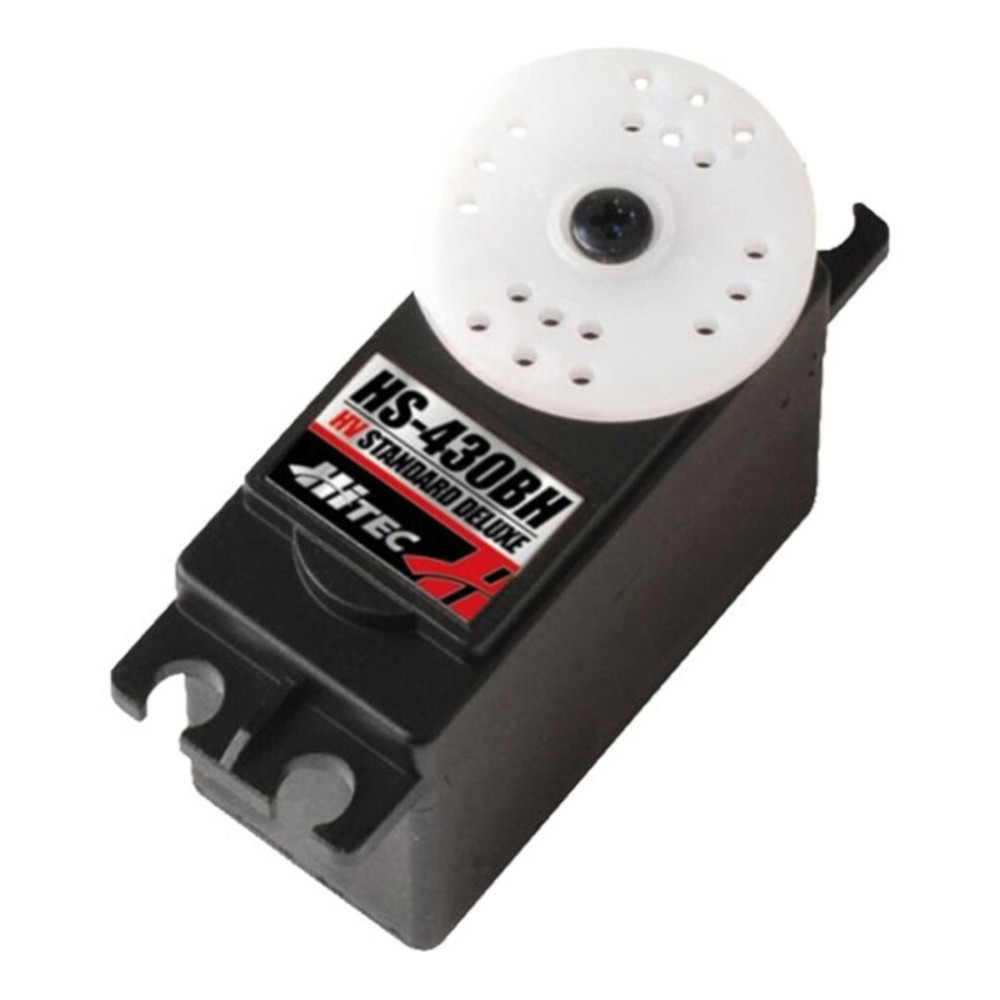

HS 430BH HV DELUXE SERVO HITEC 3HRC31430S
- Código: 360661
- Marca: HITEC
- Estoque: Disponível
-
$19,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Product Description
Based on the popular HS-425BB, our deluxe ball bearing HS-430BH is our budget-minded analog servo capable of 6.0 to 7.4 volt operation. Designed with the novice hobbyist in mind, this low cost servo can be used for control surfaces on beginner airplanes and as a throttle or replacement servo for many ready-to-fly models. Its excellent durability and dependability make it a solid choice for beginner pilots.
Features
- Our Lowest Priced, 7.4v 2-Cell LiPo Capable Servo
- Dual Resin Gear Train
- Dual Ball Bearings
- Durable and Dependable Construction
- High Voltage, High Performance Circuitry
Accessories
- Nylon Gear Set
- Plastic Case Set
- Applicable Horns
HS-430BH Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.16 ~ 0.14 |
| Maximum Torque Range oz. / in. | 57 ~ 69 |
| Maximum Torque Range kg. / cm. | 4.1 ~ 5.0 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 160 mA |
| Stall Current Draw | 850 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.59 x 0.77 x 1.44 |
| Dimensions (Metric) | 40.6 x 19.8 x 36.6 |
| Weight (Ounces) | 1.60 |
| Weight (Gram) | 45.5 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 50 - 64 oz. |
| Sailplane | 2 meters and up |
| 3D Performance | N / A |
| Scale | 50 - 64 oz. |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | < 1 meter |
| Power Boat | 1/10th |
