MOTOR GP38 38CC

  • Código: 356565
  • Marca: GP-ENGINES
  • Estoque: Indisponível

0 comentários / Escreva um comentário

  • $549,00

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.


Another game-changer is coming in 2020, no surprise that GP has developed the most powerful and reliable two-stroke engine in 30c.c. engine for UAV propulsion system and model aircraft!

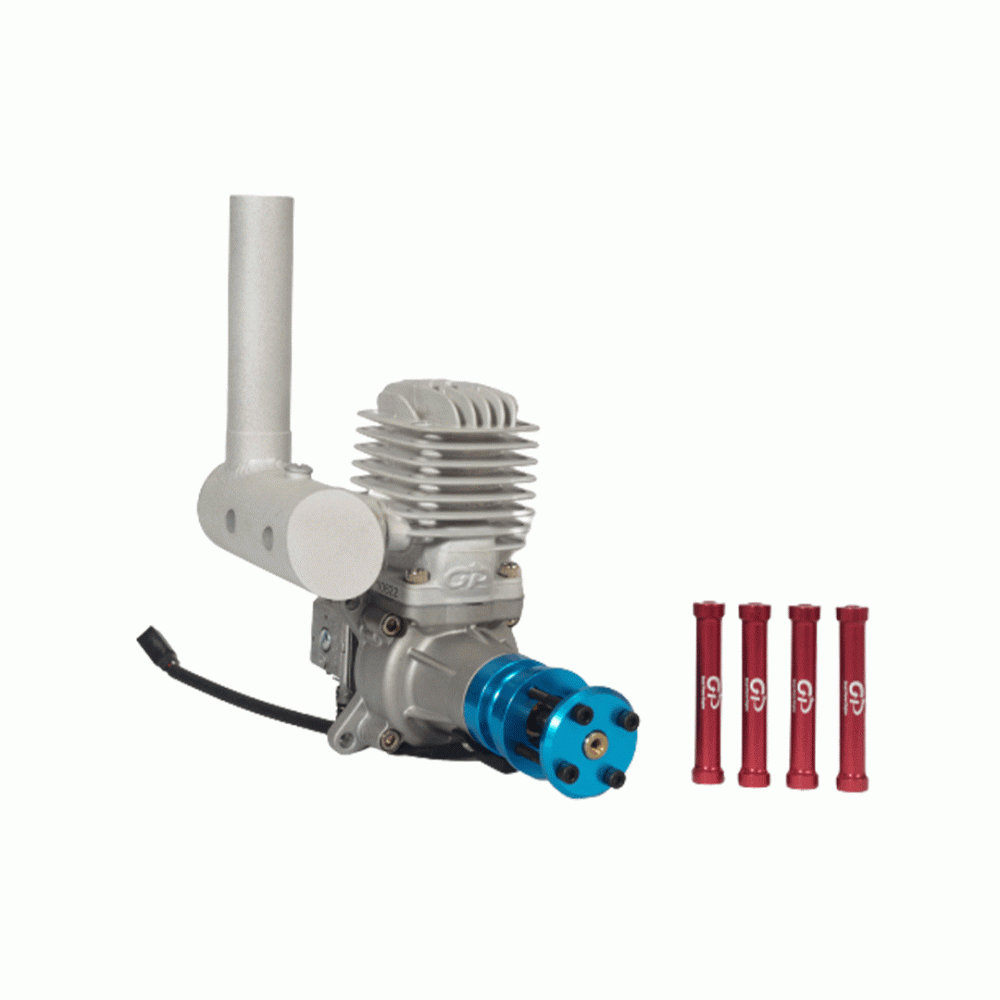

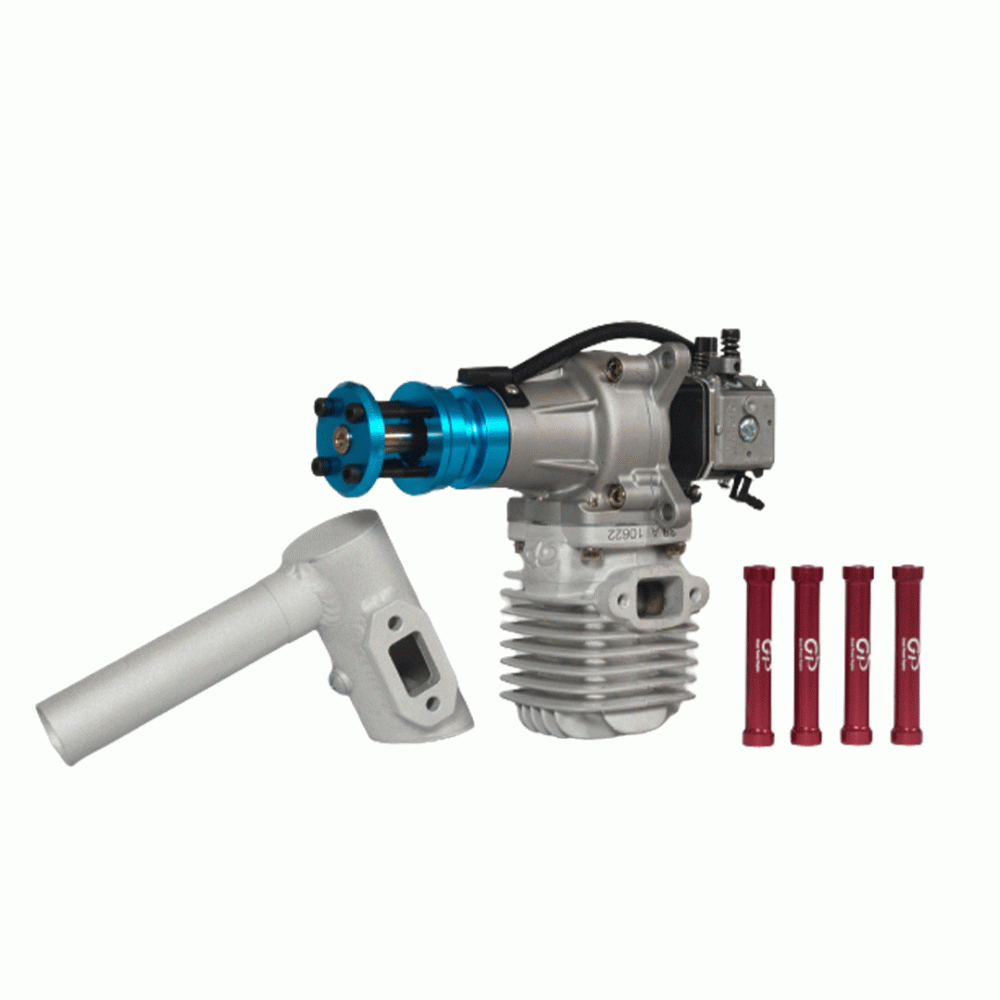

GP38 will come with a stock Pitts Muffler, four Ferrari-red engine stands, CDI, NGK spark plug and screws for the propeller, Pitts muffler and stands.

GP series petrol engines manufactured by the Taiwanese company Great Power Engine excel in excellent workmanship, robust construction of quality materials and especially the use of high quality components such as pistons, piston pins and connecting rods from subcontractors producing for famous motorcycle brands such as Rotax, Yamaha, Honda or Suzuki. The smooth running of the engines is ensured by SKF bearings and a reliable fuel supply by Walbro diaphragm carburettors. The engines are suitable for operation with expansion and tuned mufflers. The well-thought-out design of the GP engines achieved a very good weight / power / price ratio.

GP76 is a newly developed single cylinder with a 38 mm cylinder bore. The crankcase is made of high-quality aluminum alloy; the pistons are equipped with one piston ring, the connecting rod and piston pins pass through needle bearings. The engine is equipped with quality bearings from the Swedish company SKF. Currently the most powerful model engine in the volume class 35-40ccm

The Walbro HDA-246 carburetor is a diaphragm, double-needle, equipped with a choke.

The light expansion exhaust silencer of the Pitts type is made of aluminum with a surface provided with a protective silver coating.

The ignition is electronic designed for power supply from batteries with a nominal voltage of 6.6 - 7.4V. It is possible to use both 6-cell power supply. a NiMH battery (at least 1500mAh) and a 2S battery LiPo (at least 1000mAh) or LiFe. The ignition is supplied with a protective spiral tube, a cable for connecting the battery and, of course, the NGK CM-6 spark plugs.

  • Recommended fuel: run-in 32: 1 (32 parts Natural 95 petrol per 1 part oil), normal operation 40: 1. We recommend using synthetic two-stroke oil Motul 710 2T or Motul 800 2T.
  • Recommended candle: CM-6
  • Recommended propellers: double-bladed: 20x8 “, 20x9“, 20x10 “



Typical speed:

  • 7960 rpm with Falcon propeller 20 x 8
  • 7730 rpm with Falcon 20 x 9 propeller
  • 7420 rpm min with Falcon propeller 20 x 10



The package includes: engine, electronic ignition + spark plug, muffler + exhaust seal, connecting material, spacers and instructions.



Specification:

  • Displacement: 38cc
  • Bore: 38mm
  • RPM Range: 1400-10000
  • Output: 5 Horsepower



Technical Data:

  • Compression Ratio: 9.2:1
  • Weight: Engine: 1000g/ Ignition: 136g/ Muffler: 144g
  • Gasoline: 92 Unleaded
  • Gasoline/Oil Mix Ratio: 40:1
  • Carburetor: Walbro HAD 246
  • Spark Plug: NGK CM-6
