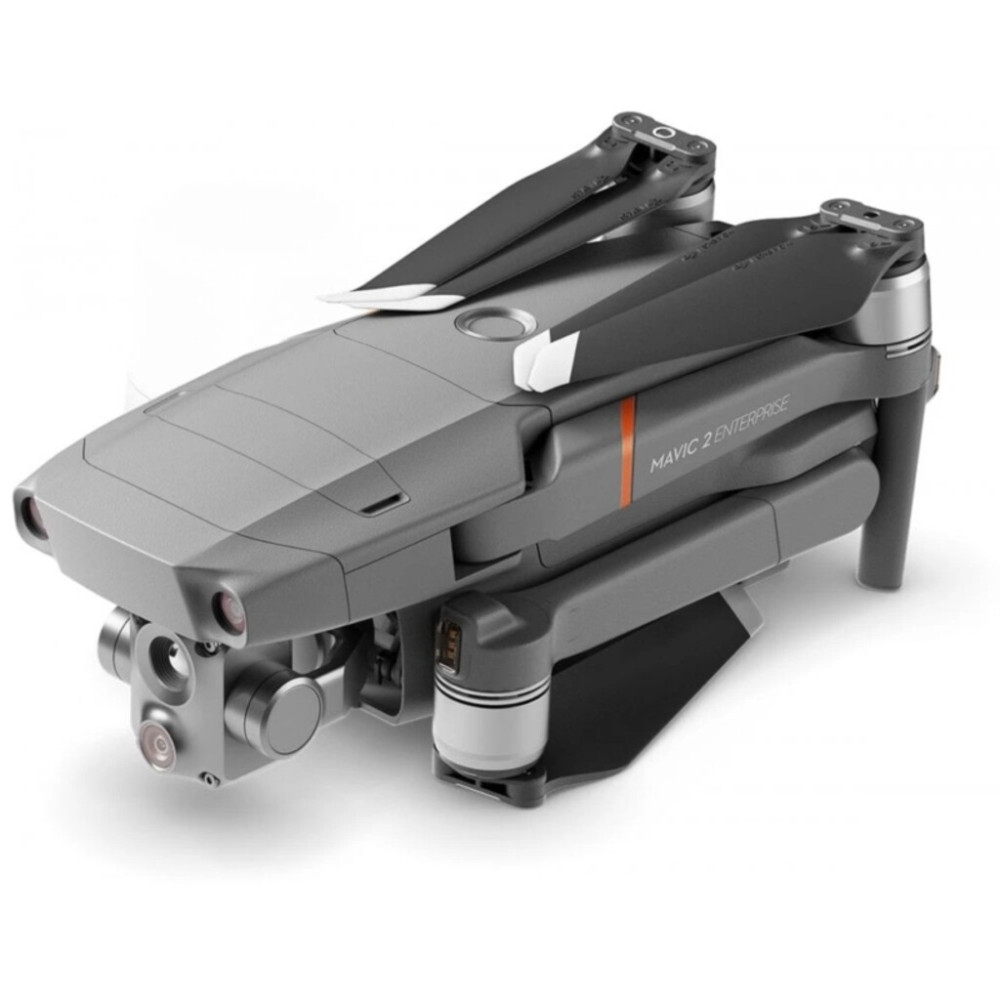

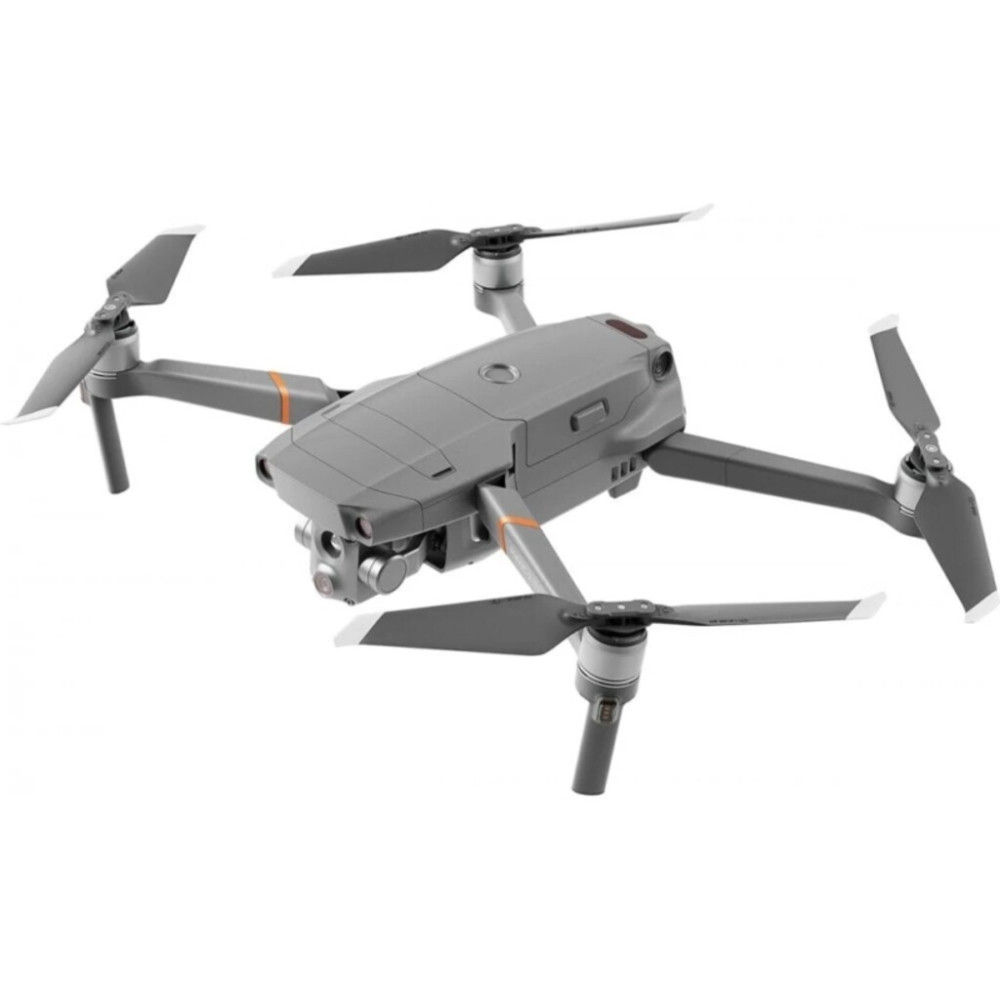

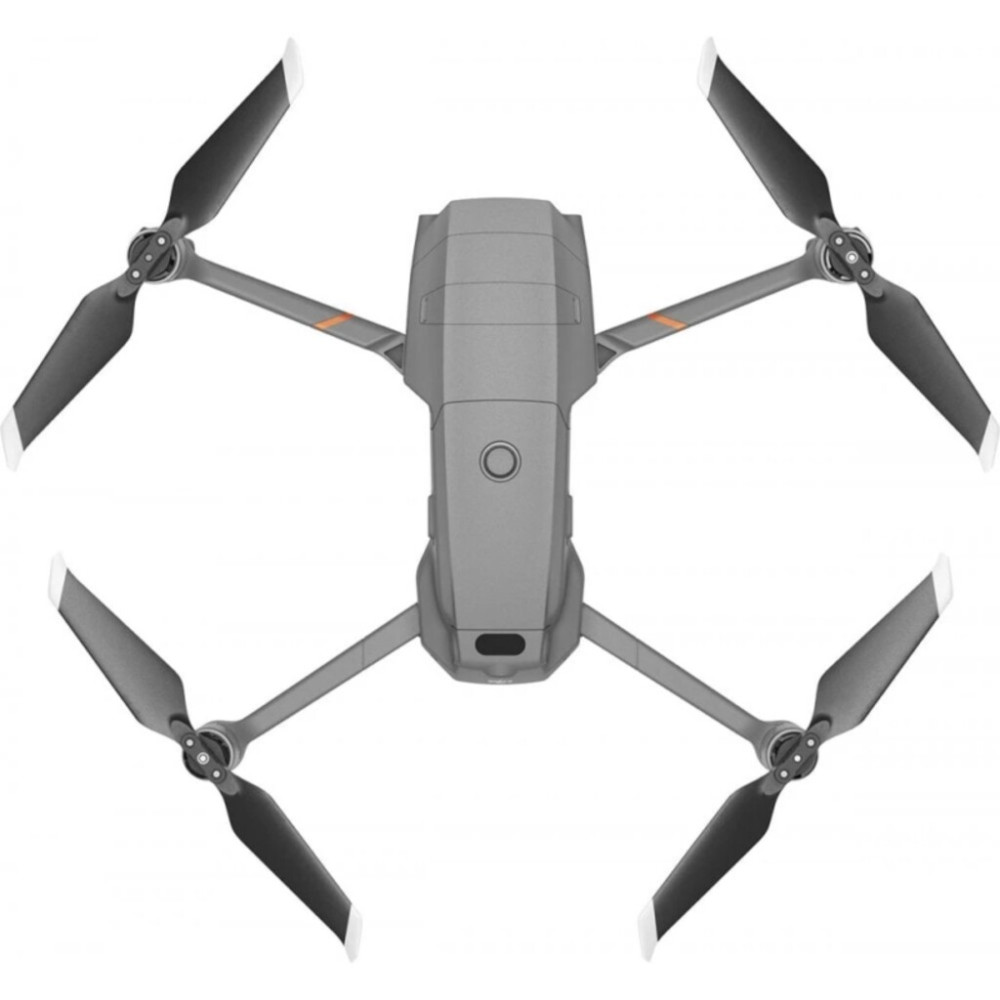

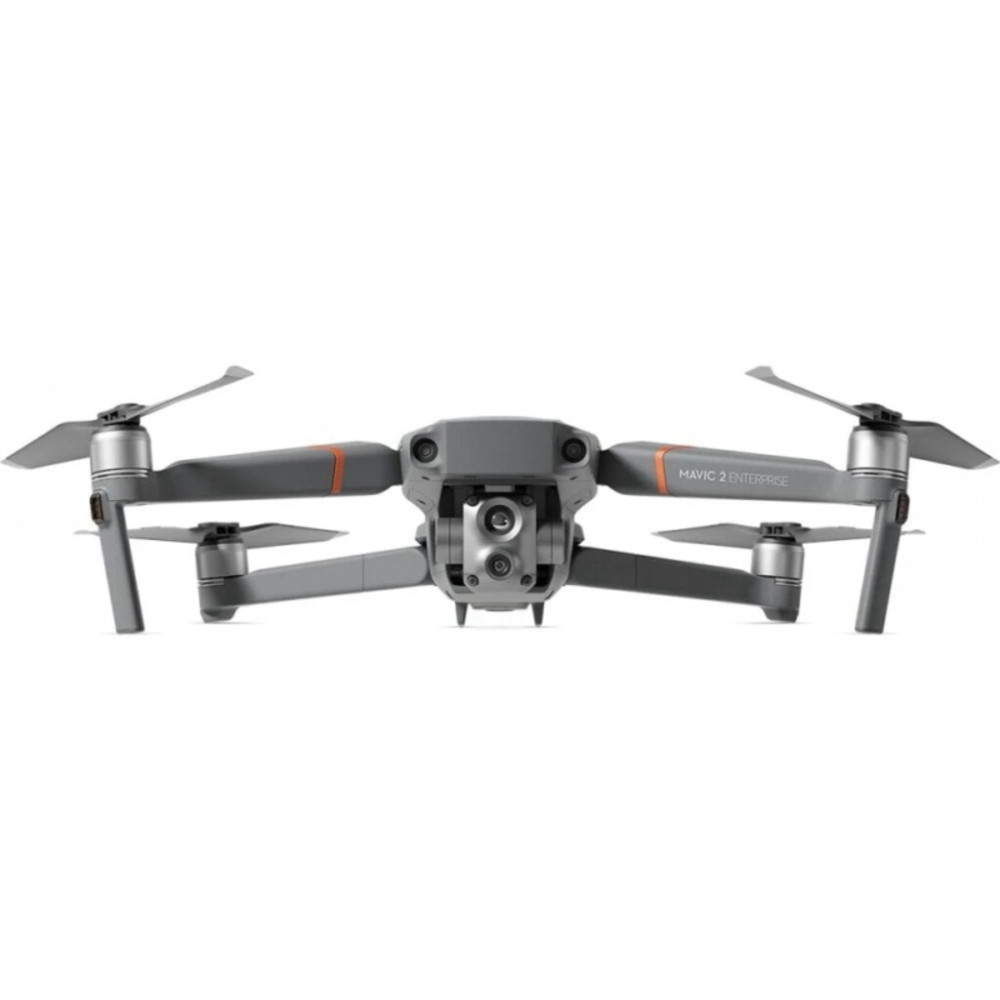

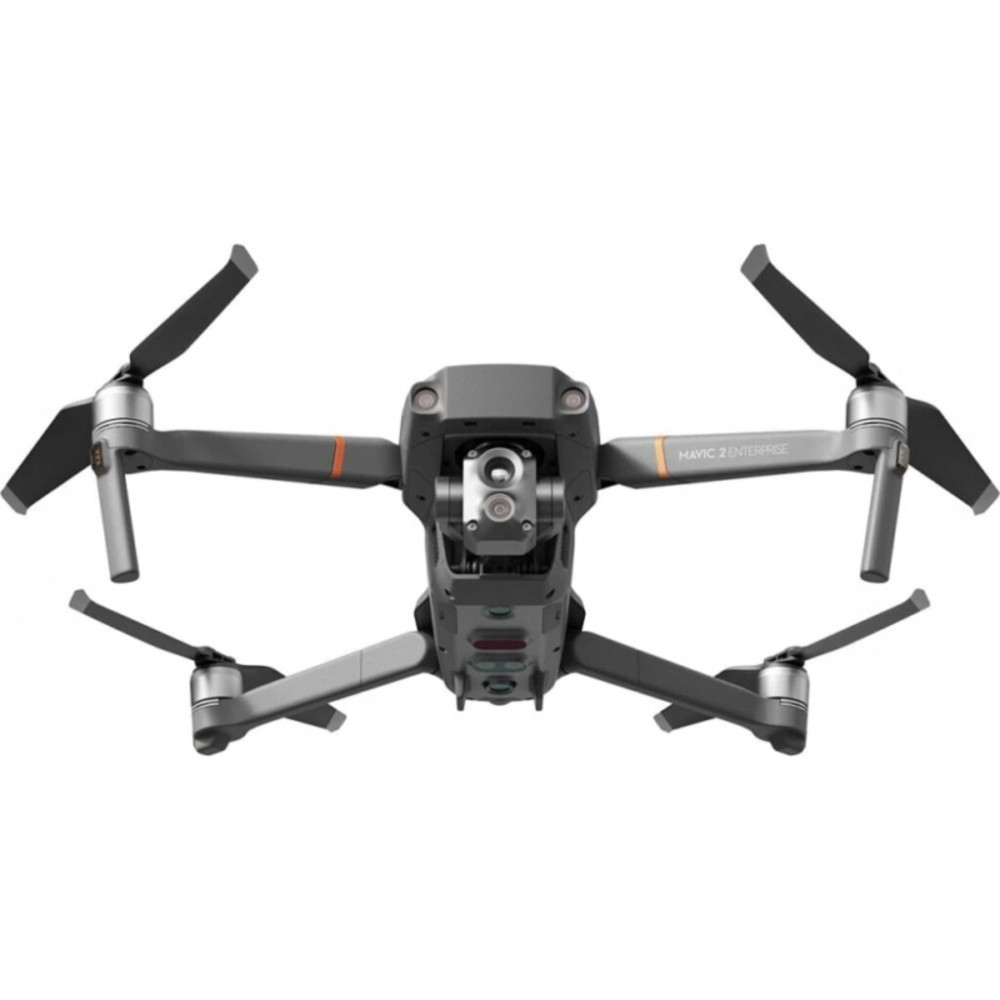

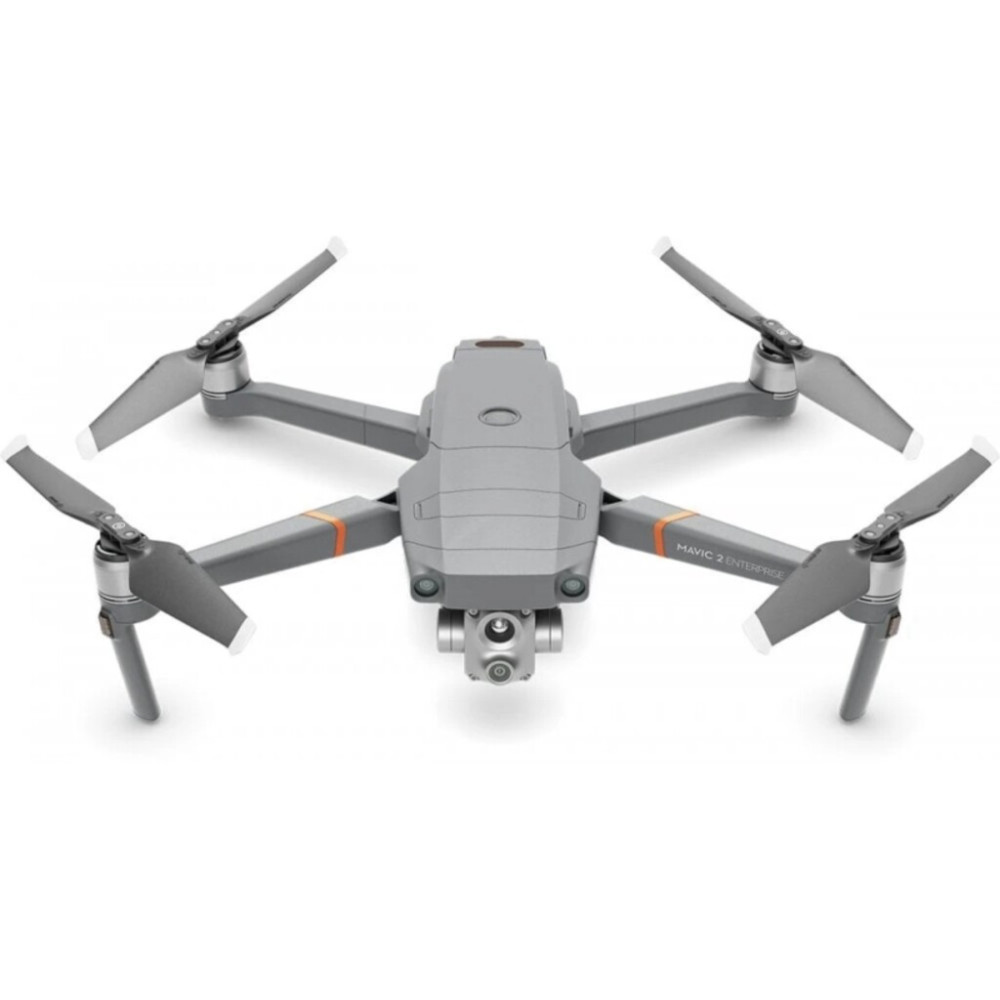

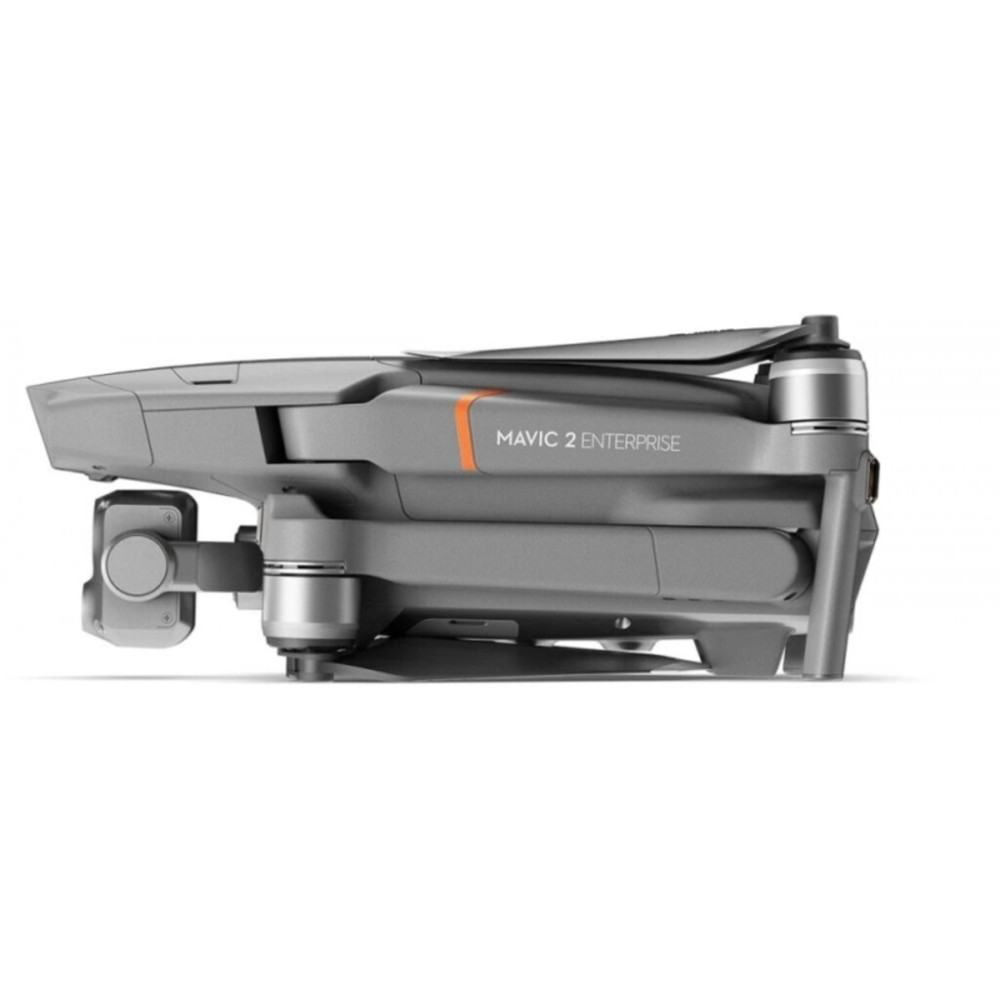

DJI RTF MAVIC 2 ENTERPRISE ADVANCE THERMAL UNIVERSAL EDITION
- Código: 356558
- Marca: DJI INOVATIONS
- Estoque: Indisponível
-
$6.900,00
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
*NÃO ACOMPANHA MÓDULO RTK*
Mavic 2 Enterprise Advanced
O futuro dos sensores duplos
Capture detalhes nítidos em qualquer missão com o Mavic 2 Enterprise Advanced – uma ferramenta incrivelmente versátil e compacta que entrega desempenho superior. Com câmeras duplas (visual e termográfica) de alta resolução, o M2EA suporta Zoom digital de até 32× e entrega precisão de posicionamento em nível de centímetros graças ao Módulo RTK.
- Câmera termográfica de 640 × 512 px
- Câmera visual com 48 MP
- Zoom digital de 32×
- Posicionamento em nível de centímetros com o RTK
- Transmissão de vídeo em HD em até 10 km
- Detecção de obstáculos omnidirecional1
Expanda seus horizontes com câmeras duplas avançadas
Câmera termográfica radiométrica de alta resolução
Tome decisões informadas em campo ao identificar objetos rapidamente usando o sensor termográfico integrado de alta resolução do M2EA, suportando Medição de local e Medição de área.
Resolução térmica
Taxa de quadros
Zoom
Precisão da medição de temperatura
Mantenha-se em segurança ao dar zoom
Capture imagens e vídeos nítidos de uma distância segura. A câmera visual de alta resolução do M2EA suporta Ultra zoom, entregando riqueza de detalhes.
Câmera visual
Sensor CMOS
Zoom sem perdas2
Zoom digital
Sensores duplos ao seu serviço
Toque para alternar entre as transmissões visual, térmica ou ambas ao mesmo tempo, atendendo às necessidades de diferentes projetos.
Compacto & poderoso
Precisão de posicionamento
Alcance precisão em nível de centímetros ao usar o M2EA com o Módulo RTK3. Crie até 240 Trajetórias para conduzir missões de inspeções automáticas e detalhadas em ambientes complexos.
Máxima flexibilidade
O M2EA é leve e portátil, sendo capaz de decolar em menos de um minuto. Navegue por ambientes complexos de operação graças às velocidades de ascensão e descensão otimizadas.
Recursos extras
- MSDK
- AirSense
- Proteção por senha
- Modo discreto
- Baterias com aquecimento automático
- Temperatura de funcionamento de -10° C a 40° C

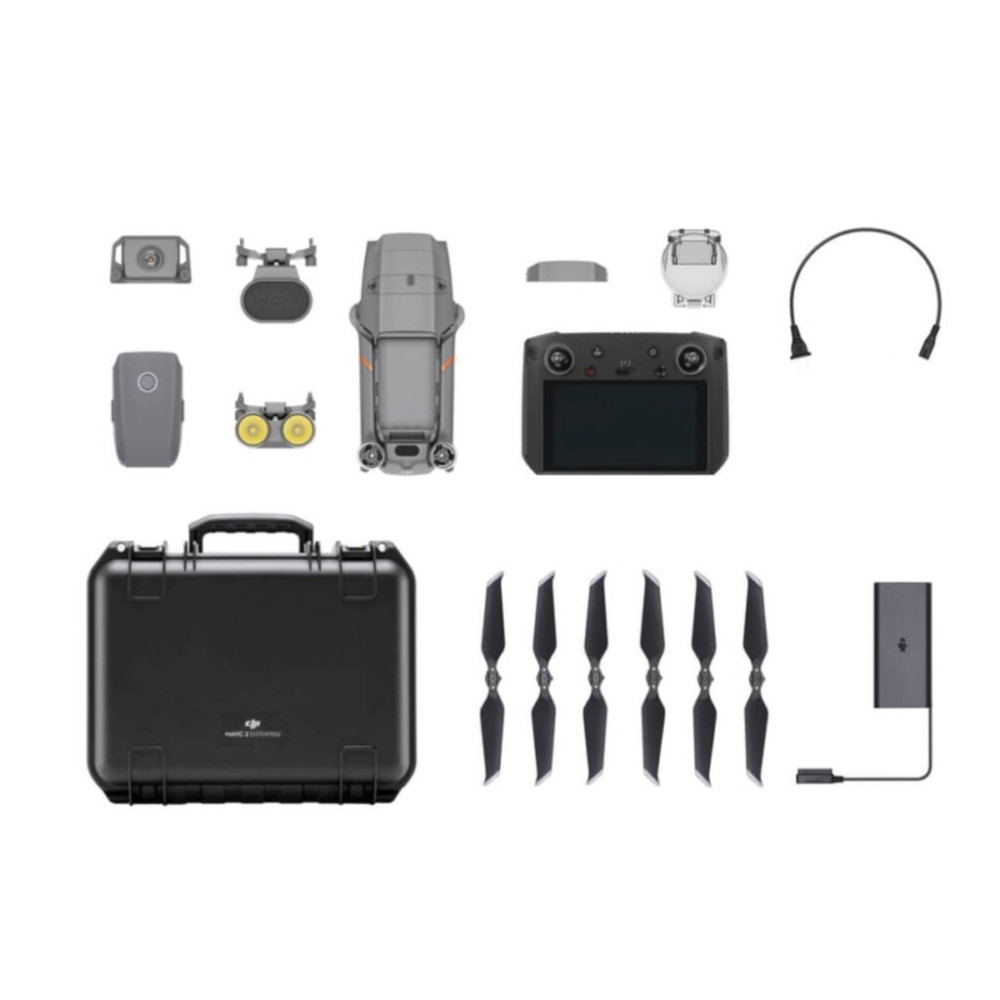

*Does not include RTK module*
- 1x DJI Mavic 2 Enterprise Advanced Drone DJI Drone
- 1x remote control
- 1x smart battery
- 1x battery charger
- 1x power cable
- 3x pair of propellers
- 1x spare joystick (pair)
- 1x USB adapter
- 1x extension slot cover
- 1x loudspeaker
- 1x high-power LED spotlight
- 1x signal LED
- 1x carrying case
PRODUCT SPECIFICATIONS
AIRCRAFT
Max Takeoff Weight: 1100g
Dimensions (L×W×H):
Unfolded: 322×242×84mm
Unfolded+Spotlight: 322×242×114mm
Unfolded+Beacon: 322×242×101mm
Unfolded+Speaker: 322×242×140mm
Unfolded+RTK Module: 322x242x125mm
Max Ascent Speed:
6 m/s (S-mode)
5 m/s (P-mode)
4 m/s (S-mode with accessories)
4 m/s (P-mode with accessories)
Max Descent Speed:
Descend Vertically
5 m/s (S-mode)
4 m/s (P-mode)
Tilt
7 m/s (S-mode)
4 m/s (P-mode)
Max Speed: 72 kph (S-mode, without wind)
50 kph (P-mode, without wind)
Max Flight Time:
31 min (measured while flying at 25 kph in windless conditions)
28 min (RTK module attached)
29 min (with beacon turned on)
30 min (with beacon turned off)
24 min (with spotlight turned on)
28 min (with spotlight turned off)
27 min (with speaker turned on)
28 min (with speaker turned off)
Max Wind Speed Resistance: 10 m/s (scale 5)
Max Tilt Angle:
35°(S-mode, with remote controller)
25°(P-mode)
Max Angular Velocity:
200°/s (S-mode)
100°/s (P-mode)
Operating Temperature: -10° to 40° C
GNSS: GPS+GLONASS
Vertical:
± 0.1 m (with RTK)
± 0.1 m (with Vision Positioning)
± 0.5 m (with GPS Positioning)
Horizontal:
± 0.1 m (with RTK)
± 0.3 m (with Vision Positioning)
± 1.5 m (with GPS Positioning)
2.400-2.4835 GHz;
5.725-5.850 GHz
Transmitter Power (EIRP):
FCC: ≤26 dBm;
CE: ≤20 dBm;
SRRC: ≤20 dBm;
MIC: ≤20 dBm
5.725 - 5.850 GHz
FCC: ≤26 dBm;
CE: ≤14 dBm;
SRRC: ≤26 dBm
M2EA Thermal Camera
Sensor: Uncooled VOx Microbolometer
Focal Length:
Approx. 9mm
35 mm format equivalent: Approx. 38mm
Sensor Resolution: 640×512 @30Hz
Digital Zoom: 16 ×
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Photo Format: R-JPEG
Video Format: MP4
Metering Method: Spot Meter, Area Measurement
FFC: Auto/Manual
M2EA Visual Camera
Sensor: 1/2” CMOS, Effective Pixels: 48 M
Lens:
FOV: 84°
35 mm format equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞
ISO Range:
Video: 100-12800 (auto)
Photos: 100-1600 (auto)
Digital Zoom: 32×
Max Image Size: 8000×6000
Still Photography Modes:
Single shot
Interval: 2/3/5/7/10/15/20/30/60 s
Panorama: Sphere
Video Resolution:
3840×2160@30fps
1920×1080@30fps
Photo Format: JPEG
Video Format: MP4
Gimbal
Mechanical Range:
Tilt: -135°- +45°
Pan: -100°- +100°
Controllable Range:
Tilt: -90°- +30°
Pan: -75°- +75°
Stabilization: 3-axis (tilt, roll, pan)
Max control speed: 120°/s
Angular Vibration Range: ±0.005°
Sensing System
Sensing System: Omnidirectional Obstacle Sensing[1]
Forward:
Precision Measurement Range: 0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°
Backward:
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°
Upward:
Precision Measurement Range: 0.1-8 m
Downward:
Precision Measurement Range: 0.5 -11m
Detectable Range: 11-22 m
Sides:
Precision Measurement Range: 0.5 - 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°
Operating Environment:
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting
(lux > 15)
Upward: Detects diffuse reflective surfaces(>20%)
(walls, trees, people, etc.)
Downward: Surface with clear pattern and adequate lighting
(lux > 15)Detects diffuse reflective surfaces (>20%
(walls, trees, people, etc.)

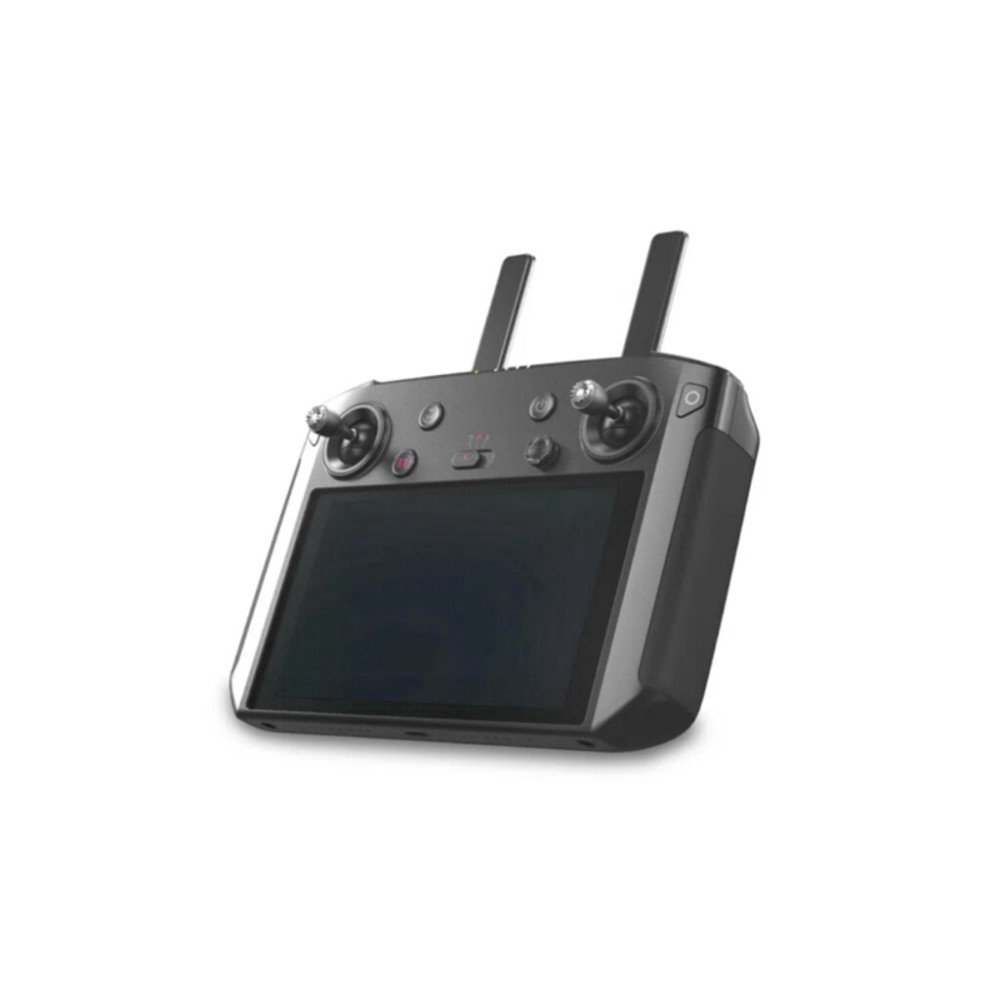

Remote Controller
Operating Frequency:
2.400 - 2.483 GHz;
5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
2.400 - 2.483 GHz; 5.725 - 5.850 GHz
FCC: 10000m
CE: 6000m
SRRC: 6000m
MIC: 6000m
Transmission Power (EIRP):
2.400-2.4835 GHz:
25.5 dBm(FCC);18.5 dBm(CE)19 dBm(SRRC);18.5 dBm(MIC)
5.725-5.850 GHz:
25.5 dBm(FCC);12.5 dBm(CE)18.5 dBm(SRRC)
Storage: ROM 16GB + microSD Extensible Storage
Video Output Port: HDMI Port
Built-in Battery:
Type: 18650 Li-Po (5000 mAh @ 7.2 V)
Charging Mode: Charged with USB charger at 12V/2A
Rated Power 15 W
Charging time: 2 hr (with a USB charger at 12V/2A)
Operating Current/Voltage: 1800mA ? 3.83V
Battery Life: Built-in Battery Approx. 2.5 hr
Operating Temperature: -20° C - 40° C
RC Size:
Folded without Joystick: 177.5 x 121.3 x 40 mm
Unfolded with Joystick: 177.5 x 181 x 60 mm
Weight: Approx. 630 g
Intelligent Flight Battery:
Main Link: 17.6V ? 3.41A or 17.0V?3.53A
USB: 5.0 V ? 2.0 A
RTK Module - (Purchased Separately)
Dimensions: 69 mm x 69 mm x 59mm
Connections: Micro USB Port
RTK Positioning Precision:
In RTK FIX
1cm+1ppm (Horizontal)
1.5cm+1 ppm (Vertical)
M2EA Spotlight
Dimensions: 68×60×41mm
Connections: Micro USB Port
Operating Range: 30 m
Power: Max 26W
Illuminance: FOV17°, Max: 11lux @ 30m Straight
Intelligent Flight Battery
Capacity: 3850 mAh
Voltage: 15.4V
Max Charging Voltage: 17.6V
Battery Type: LiPo
Energy: 59.29 Wh
Net Weight: 297g
Charging Temperature: 5? - 40?
Operating Temperature Range: -10? - 40?
Heating Methods: Manual Heating, Auto Heating
Temperature: -20? - 6?
Heating duration: 500s (Max)
Heating Power: 55W (Max)
Charging Time: 90 mins
Max Charging Power: 80W
M2EA Beacon
Dimensions: 68mm×40mm×27.8mm
Connections: Micro USB Port
Power: Avg. 1.6W
Controllable Range: 5000 m
Light intensity:
Min Angle: 55 cd;
Light intensity: 157cd
APP / Live View
Video Transmission System: OcuSync 2.0
Mobile App: DJI PILOT(Android Version)
Live View Quality:
Remote Controller:
720p@30fps / 1080p@30fps
Max Live View Bitrate: 40Mbps
Latency: 120 - 130 ms
Required Operating System: ios 10.0 or later Android 5.0 or later
M2EA Speaker
Dimensions: 68×55×65 mm
Connections: Micro USB Port
Power: Max 10W
Decibel: 100 db @ 1 meter distance
Max Bitrate: 16kbps
SD Cards
Supported SD Cards:
Micro SD™
Supports a microSD with capacity of up to 128 GB.
A UHS-I Speed Grade 3 rating microSD card is required.
Footnotes
[1]Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in ActiveTrack or Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
