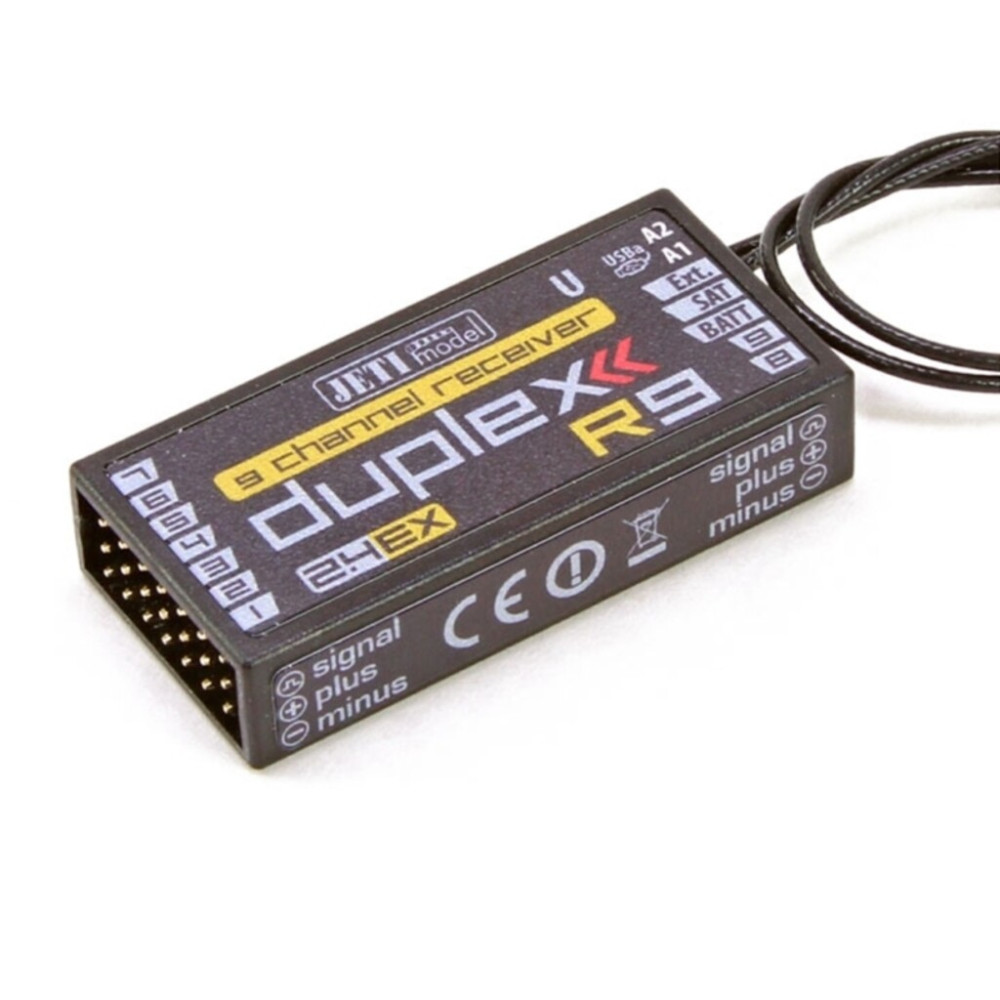

JETI DUPLEX R9 EX 2.4GHZ JETIR9US

Receiver	Duplex EX R9
Manufacturer	Jeti Model
Special Features	Wireless Programming
Modulation	2.4GHz w/Telemetry Data
Upgradeable	Via USB or JetiBox
Satellite Rx Support	Yes/1
Channels	9
Range	Full Range
Voltage	3.2-8.4V (2S Li-poly)
Dimensions	48mm x 23mm x 10mm
Weight	10g

Duplex revolutionary, fully digital 2.4GHz, frequency hopping radio system is fully designed and manufactured by Jeti Model in the Czech Republic. Full line of Duplex EX receivers is part of the most advanced radio system on today's market. Every receiver comes with programmable failsafe and digital telemetry.

One of the most attractive features of the Duplex 2.4GHz line of products is the full integration with all Duplex telemetry sensors. You can easily observe up to 40 different parameters in real-time directly on the transmitter. Or, by using the JetiBox Profi (sold separately) you can see your data in parallel mode giving you and your copilot valuable real time information (see video).

With any of the Duplex 2.4GHz receiver you can simultaneously monitor all of your sensor data using the Duplex JetiBox Profi or Jeti 2.4GHz Transmitters.

More information (links):
* Instruction Manual (.pdf)
* Click Here for Firmware Updates

Port Configurations (Rx Firmware 3.20):
Standard: 1-9 Servo, SAT Satellite In, Ext Telemetry/USB Programming
PPM/Servo: 1-9 Servo, SAT PPM, Ext Telemetry/USB Programming
EX Bus/Servo: 1-9 Servo, SAT Satellite In, Ext EX Bus/USB Programming
UDI/Servo: 1-9 Servo, SAT UDI, Ext Telemetry/USB Programming
