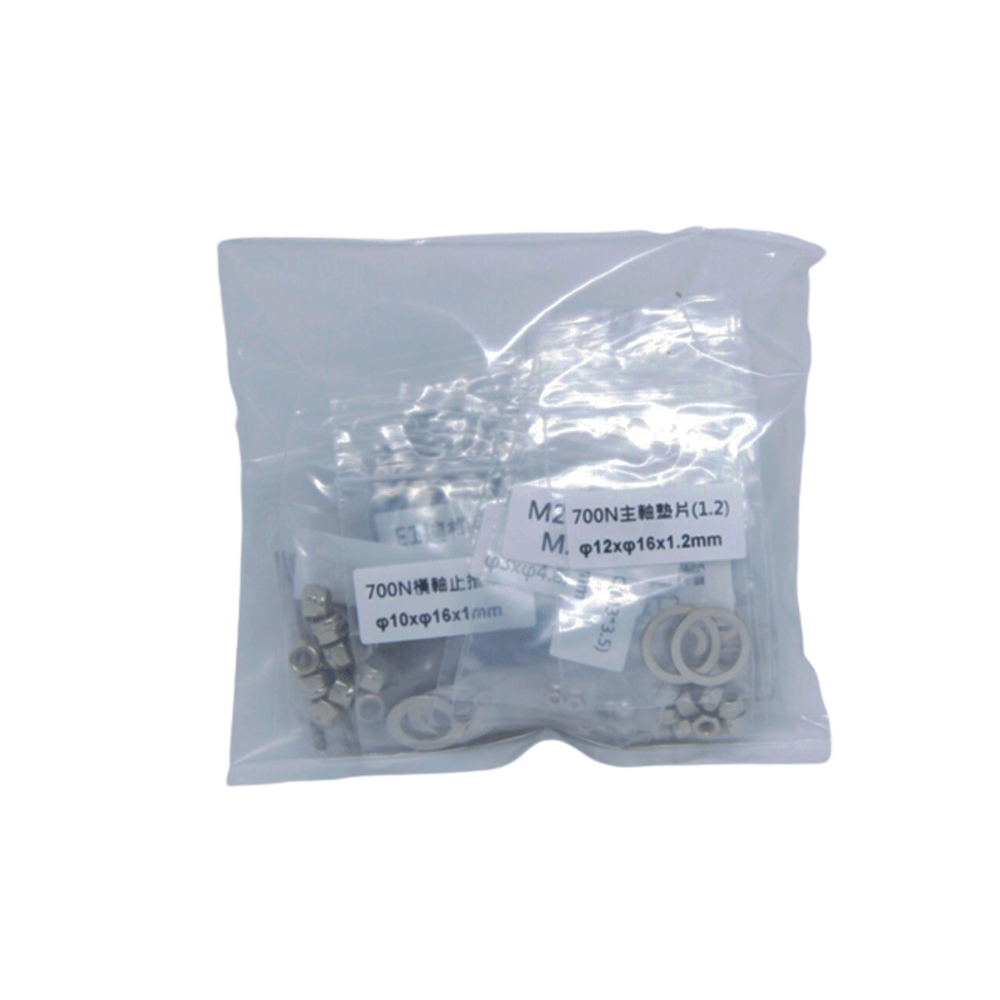

ALIGN E1 SCREW PARTS HE1Z002XXT

Align E1 Screw Parts (HE1Z002XXT).

Suitable for ALIGN E1.

Specification:

Screw:

• 700N Feathering Shaft Collar Screw x 6 (M6x16mm)
• 700E Tri-Blades Head Feathering Shaft Screw x 6 (M6x21.5mm)
• Special Collar Screw(M3x6.5) x 8 (M3x9.5mm)
• Collar Screw x 4 (M2x8mm)
• Socket Button Head Screw x 12 (M2.5x5mm)
• Socket Button Head Screw x 6 (M2.5x6mm)
• Socket Button Head Screw x 4 (M2.5x8mm)
• Socket Button Head Screw x 16 (M2.5x10mm)
• Socket Button Head Screw x 4 (M2.5x14mm)
• Socket Button Head Screw x 2 (M3x5mm)
• Socket Button Head Screw x 4 (M4x8mm)
• Socket Button Head Collar Screw x 36 (M3x8mm)
• Socket Button Head Self Tapping Screw x 12 (T2x6mm)
• Socket Button Head Self Tapping Screw x 20 (T2.6x6mm)
• Socket Button Head Self Tapping Screw x 8 (T2.6x12mm)
• Socket Button Head Self Tapping Screw x 8 (T2.6x14mm)
• Socket Screw x 4 (M2x8mm)
• Socket Screw x 4 (M2x16mm)
• Socket Screw x 24 (M2.5x6mm)
• Socket Screw x 16 (M2.5x8mm)
• Socket Screw x 8 (M3x5mm)
• Socket Screw x 12 (M3x6mm)
• Socket Screw x 25 (M3x8mm)
• Socket Screw - Nylok x 12 (M3x8mm)
• Socket Screw x 16 (M3x10mm)
• Socket Screw x 12 (M3x14mm)
• Socket Screw x 28 (M3x16mm)
• Socket Screw x 4 (M3x20mm)
• Socket Screw x 4 (M3x26mm)
• Socket Screw x 14 (M4x8mm)
• Socket Screw x 16 (M4x10mm)
• Socket Screw x 4 (M4x12mm)
• Socket Screw x 4 (M4x14mm)
• Socket Screw x 16 (M4x22mm)
• Socket Collar Screw x 4 (M2.5x8mm)
• Socket Collar Screw x 12 (M3x6mm)
• Socket Collar Screw x 24 (M3x8mm)
• Socket Collar Screw x 4 (M3x19mm)
• Socket Collar Screw x 4 (M4x24mm)
• Socket Collar Screw x 20 (M4x25mm)
• Socket Collar Screw x 2 (M4x27mm)
• Socket Collar Screw x 8 (M5x30mm)
• Socket Collar Screw x 6 (M5x32mm)
• Socket Self Tapping Screw x 4 (T4x10mm)
• Flat Head Socket Screw x 4 (M2.5x8mm)
• Flat Head Socket Self Tapping Screw x 8 (T3x12mm)
• Phillips Flat Head Self Tapping Screw x 16 (T5x10mm)
• M4 Set Screw x 6 (M4x4mm)
• M4 Set Screw x 32 (M4x8mm)

Nut:

• M2 Hex Nut x 2 (M2xT1.5mm)
• M3 Nut x 20 (M3xT2mm)
• M4 Nut x 10 (M4)
• M5 Nut x 6 (M5)

Washer:

• 550E Main Shaft Spacer(0.5) x 6 (Φ10.1xΦ14x0.5mm)
• 700N Feathering Shaft Washer x 6 (Φ10xΦ16x1mm)
• Washer x 4 (Φ3xΦ4.8x0.3mm)
• M3 Washer x 8 (Φ3xΦ8x1mm)
• M4 Washer x 20 (Φ4xΦ8x1mm)
• M3 Specialty Washer x 10 (Φ3xΦ8x2mm)
• 700 One-Way Spacer x 2 (Φ18xΦ22.7x0.7mm)
• 700N Main Shaft Spacer(1) x 2 (Φ12xΦ16x1mm)
• 700N Main Shaft Spacer(1.2) x 2 (Φ12xΦ16x1.2mm)
• 700N Main Shaft Spacer(0.8) x 2 (Φ12xΦ16x0.8mm)
• 700N Main Shaft Spacer(0.5) x 2 (Φ12xΦ16x0.5mm)

Linkage Rod / Linkage Ball:

• 700X Linkage Rod A x 12 (M3x41mm)
• E1 Ball Link x 24 (Φ5.5xΦ6.5x19.35mm)
• E1 Linkage Rod Holder x 24 (Φ5.4xΦ6.5x3mm)
• Φ5 Linkage Ball B(M3x4) x 6 (Φ5x10.5mm)
• 700N Linkage Ball B(M3x4) x 10 (Φ5x12mm)
• Φ5 Linkage Ball D(M3x3.5) x 2 (Φ5x9.3mm)
• Φ5 Long Linkage Ball(M3x4) x 2 (Φ5x28mm)
• 700N Linkage Ball C(M3x3.5) x 2 (Φ5x8.5mm)
• Φ5 Linkage Ball C(M2.5x4) x 6 (Φ5x12mm)
• 700N Linkage Ball C(M2x4) x 2 (Φ5x9mm)
