ALIGN E1 PLUS AUTO-NAVIGATION AGRICULTURA HELICOPTER COMBO RHE1E22XT

* ACOMPANHA TABLET SAMSUNG GALAXY TAB A 8 *

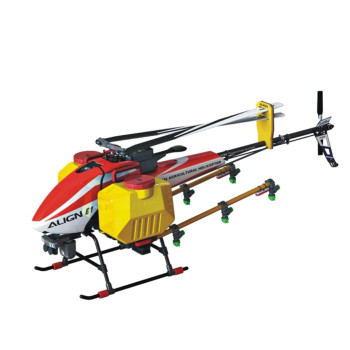

Brand New ALIGN E1 PLUS Agricultural Helicopter!

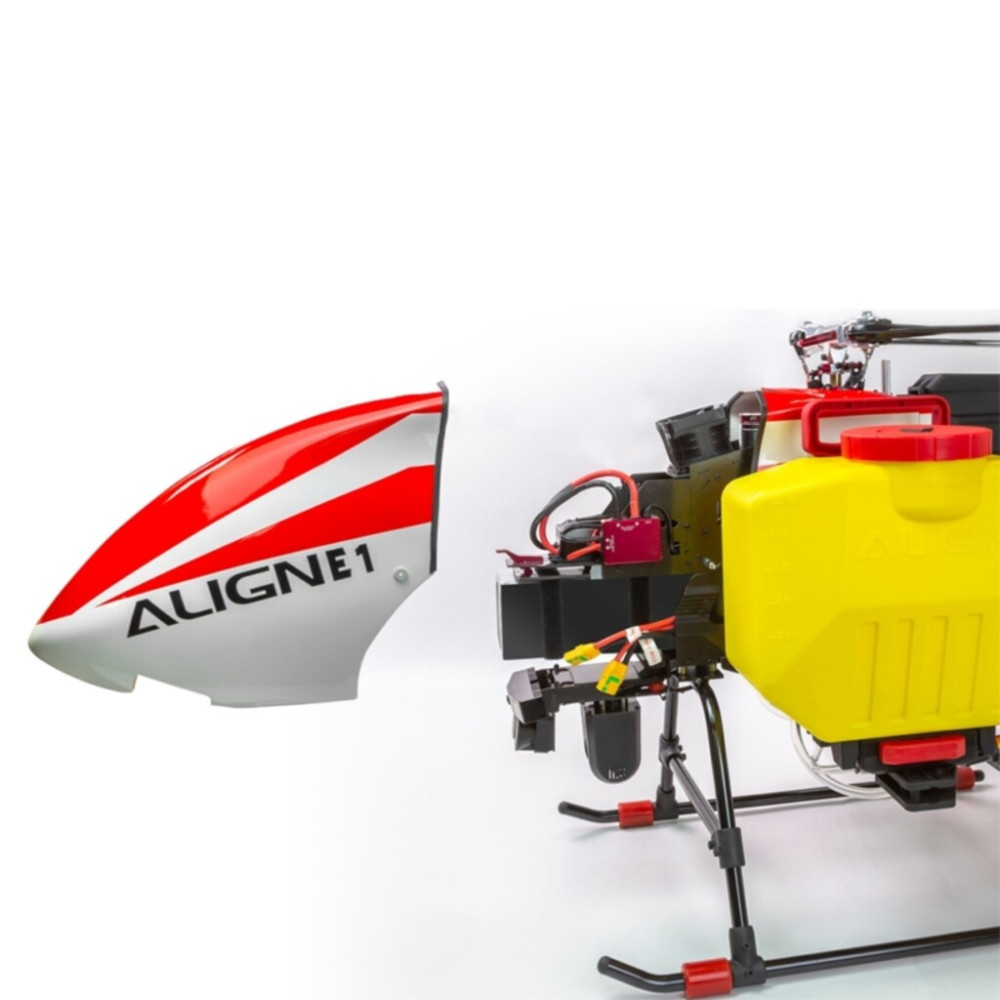

The battery compartment accommodate 80mm x 70mm large-capacity batteries, so the flight time can be reached up to 20.5 mins with 12S 44.4V 16000mAh (6S1Px2) battery, which provides stability for high-load operations , sufficient power performance, and improve work efficiency. In addition, the three-section canopy design can make easy for battery replacement and provides better protection for the body. In terms of function, it has also improved to a higher level. In addition to optimizing the existing functions, it also provides new functions such as the latest AB+ automatic navigation mode.

Longer Flight Time Up To 20.5 Minute (16000mAh)
Obstacle Avoidance Radar
Headlight Remote Control
Adjustable Up and Down HD Image
High Wear Resistance Torque Tube Drive Gear
High Endurance and Efficiently Save Power 15%
High Pressure 6 Nozzles with Large Spraying at 4L/min
Newly High Stable Auto Flight Control System

Win the 26th Taiwan Excellence Silver Award! ALIGN E1 Agricultural Helicopter is revolutionizing the way agriculture is done. It’s an advanced helicopter for modern green farming and spraying that can be competed up to 0.48 acres per minute; 30 times faster than traditional machinery. Specially inherit “Helicopter” body design, when it rotates, the strong airflow will carry the spraying directly down to the whole plant leaves and roots reducing the loss cost of spraying.

ALIGN E1 is designed with composite material and 3K Carbon Fiber that is lightweight but extremely durable. Besides, it features well water proof, rust proof and oxidation proof also high quality finish. It’s capable of switching the 15KG chemical containers in 5 seconds reducing the risk of being dangers of exposing ourselves to the pesticide. There are two types of fan-shaped nozzles can be used for adjusting output to different plants.

ALIGN E1 adopt sonar altimeter to detect the terrain height so the helicopter can adjust to maintain the same distance from the plants to provide a uniform spray across all crops. Also it has built-in triple sensor positioning module with GPS, Glonass and BDS system providing precise, stable and real-time positioning. Moreover, it’s compatible with P2 PCU (Power Control Unit) allow to distribute and integrate the power supply safely.

Align AP2 intelligent flight controller has built-in ARM Cortex-M4 32 bits 180MHz processor supports multiple flight modes (such as Attitude/GPS/Intelligent), Auto Return Home and Rescue Return Home, Low Voltage Protection, OSD output and Gimbal Control. Moreover, in our highly integrated ground station, the automated mapping function will compute the best spraying route for you or allow you to map preferred pattern. Other ground station functions like Optical Radar Terrain Detection System, Altitude Positioning, Equipped Video and Spray System Monitoring can also achieve advanced spray capacity for safe, efficient and convenient way to deliver superior crop protection.
