R$
G$
82.9° DFOV
- 20 MP Zoom Camera
23× Hybrid Optical Zoom
- Radiometric Thermal Camera
640×512 px
- Laser RangeFinder
1200 m Max Range

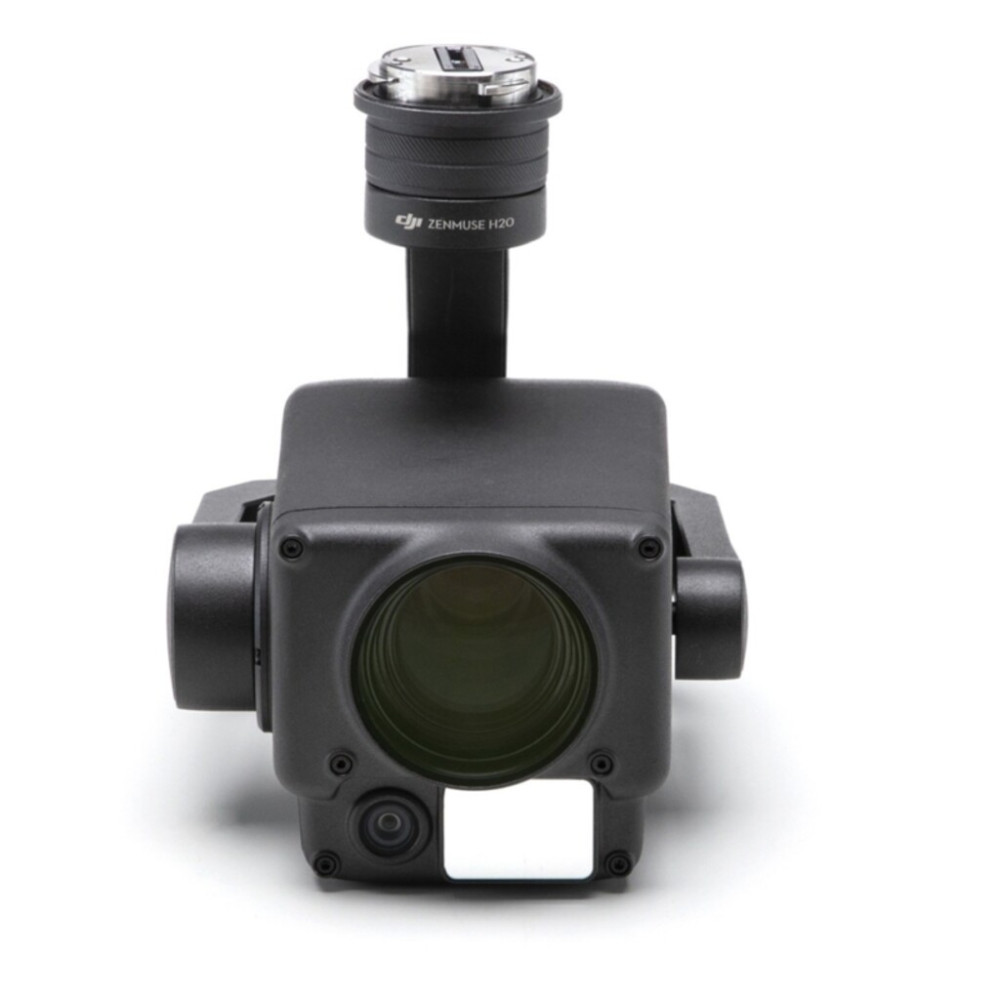

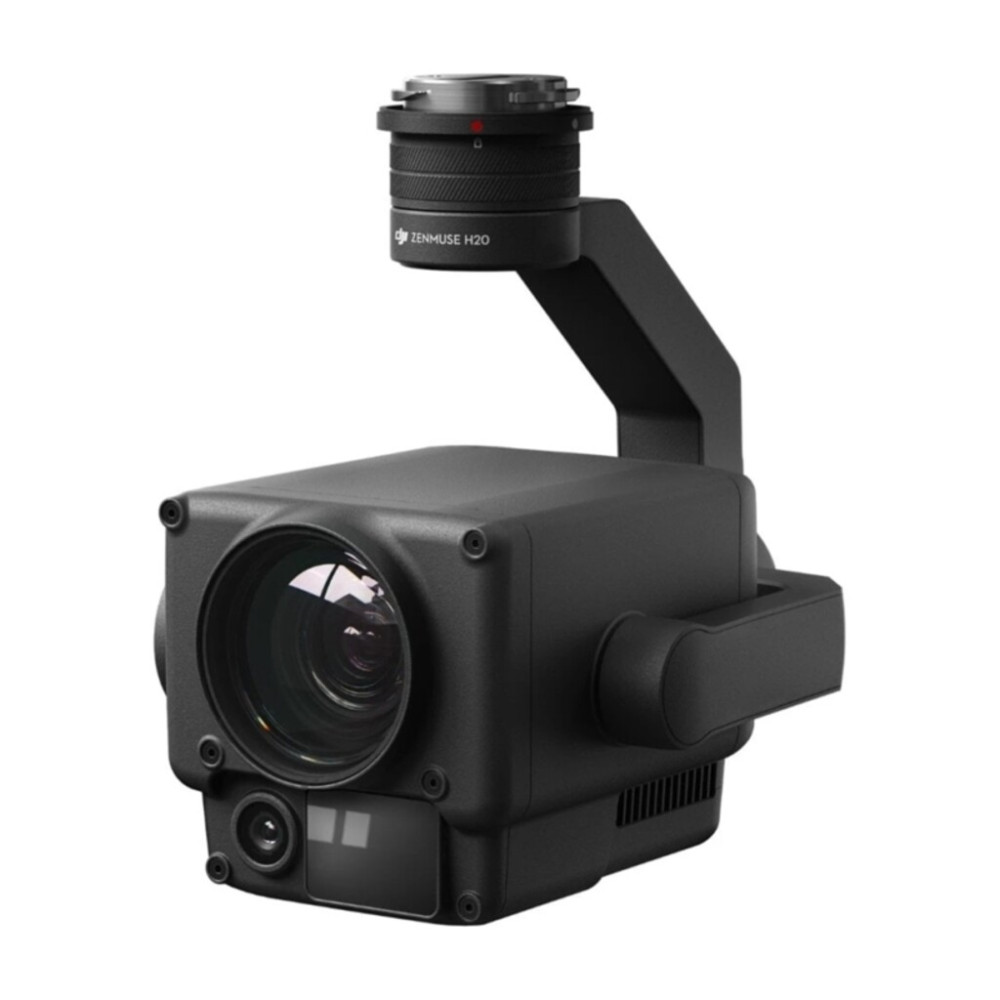

CAMERA DJI ZENMUSE H20
- Código: 352673
- Marca: DJI INOVATIONS
- Estoque: Indisponível
-
$3.999,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
ZENMUSE H20 SERIES
Unleash the Power of One
“H” For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.
- 12 MP Wide Camera
- IP44 Rating
- -20°C to 50°C Operating Temperature
- Active Image Stabilization and EIS
- Night Scene Mode
All The Sensors You Need – In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.
H20 – Triple-Sensor Solution
20 MP Zoom Camera
12 MP Wide Camera
1200 m LRF
Closing the Distance
Powerful Zoom Camera
- 23× Hybrid Optical Zoom, 200× Max Zoom
- 20 MP 1/1.7” CMOS Sensor
- Video Resolution: 4K/30fps
Everything in View
Wide Camera
- Equivalent Focal Length: 24mm, DFOV: 82.9°
- 12 MP 1/2.3” CMOS Sensor
Precise Distance Data
Laser Rangefinder
- Range: 3 m – 1200 m
- Accuracy: ± (0.2 m + D×0.15%)
See the Unseen
Radiometric Thermal Camera
- DFOV: 40.6°
- Resolution: 640×512, Frame Rate: 30fps
- Thermal Sensitivity: ≤ 50mk@f1.0 (NEDT)
Multi-Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.
Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.
AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
PinPoint
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.
AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
PinPoint
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.
Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
Accurate Temperature Measurement
Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.
Intelligent Features
Temp Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Isotherms
Visualize a specific band of temperatures to find what is important.
Color Palettes
Adjust the colors applied to the thermal data based on the needs of specific scenarios.
Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
R-JPEG Images
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
