SAVOX SERVO SC-1256TG BLACK EDITION 6V 20KG .15S
- Código: 352598
- Marca: SAVOX
- Estoque: Disponível
-
$59,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e abaixo do Custo não possuem Devolução.

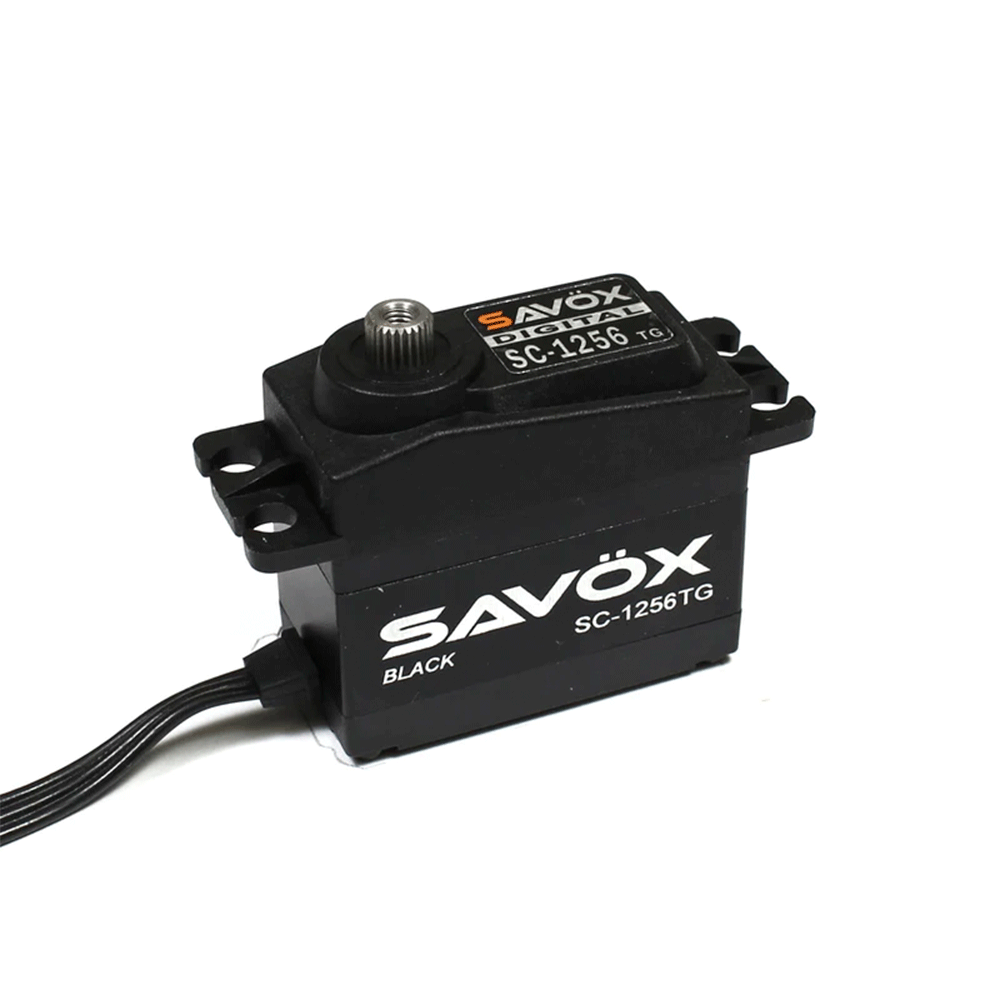

The SC-1256TG-BE is a high torque standard servo that provides great output for those looking for more than their standard servo can provide. With an all black color design, the SC-1256TG-BE provides a stealth look in RC cars.
Features:
- Titanium gears ensure long life,durability, and lighter weight.

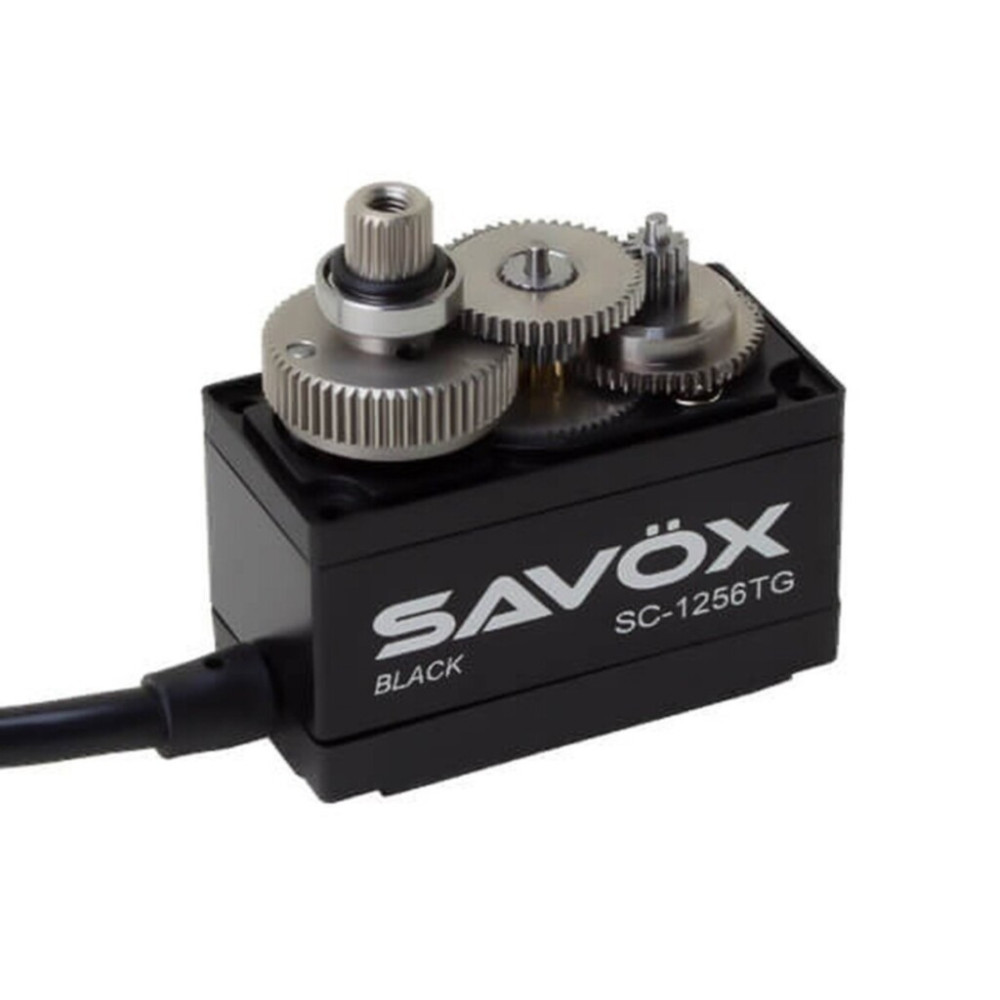

- Aluminum middle case to help with cooler operating temperatures.
- Great replacement for RTR servos and other 1/10 off road vehicles.
- Sleek black design with laser etching and a shorter 200mm black lead wire.
Specifications:
- Torque @ 4.8v - 16.0kg/222.2oz-in
- Torque @ 6v - 20.0kg/277.7oz-in
- Speed @ 4.8v - 0.18 sec/60 deg
- Speed @ 6v - 0.15 sec/60 deg

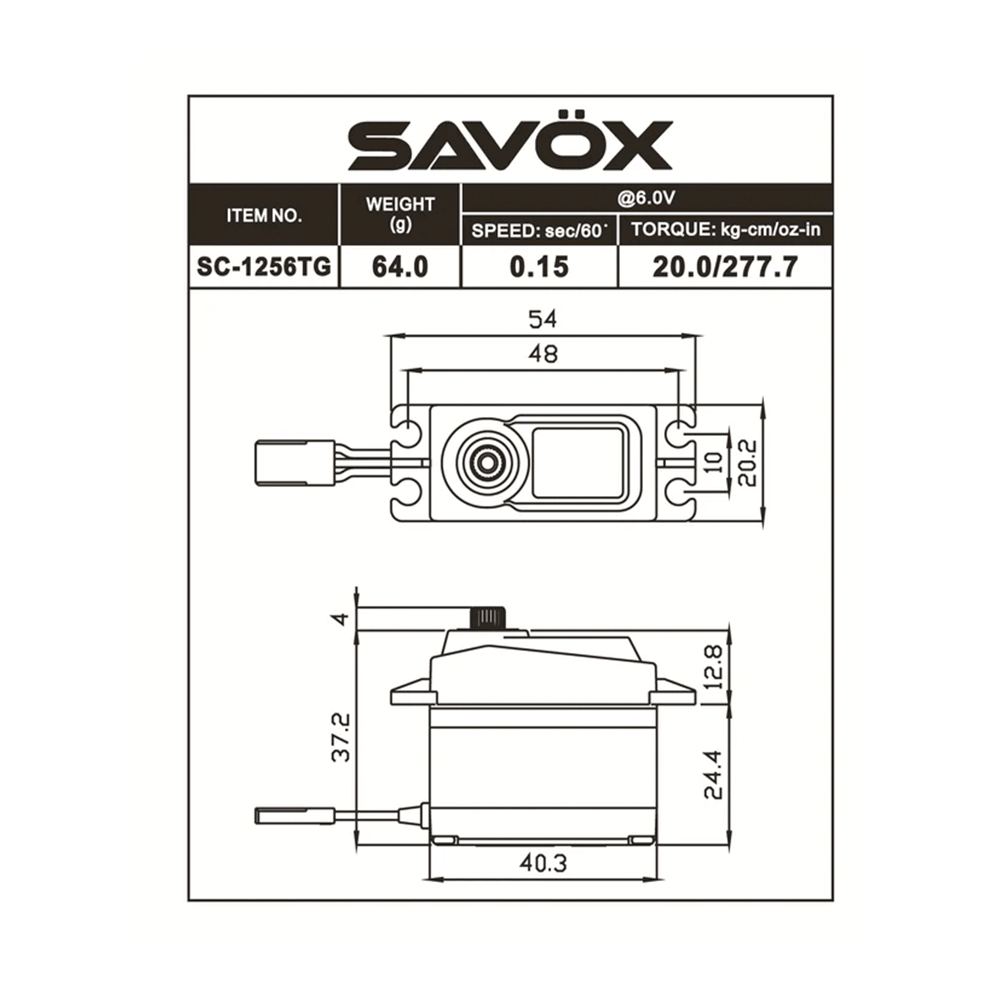

- Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
- Weight: 52.4g
Technical Details
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
