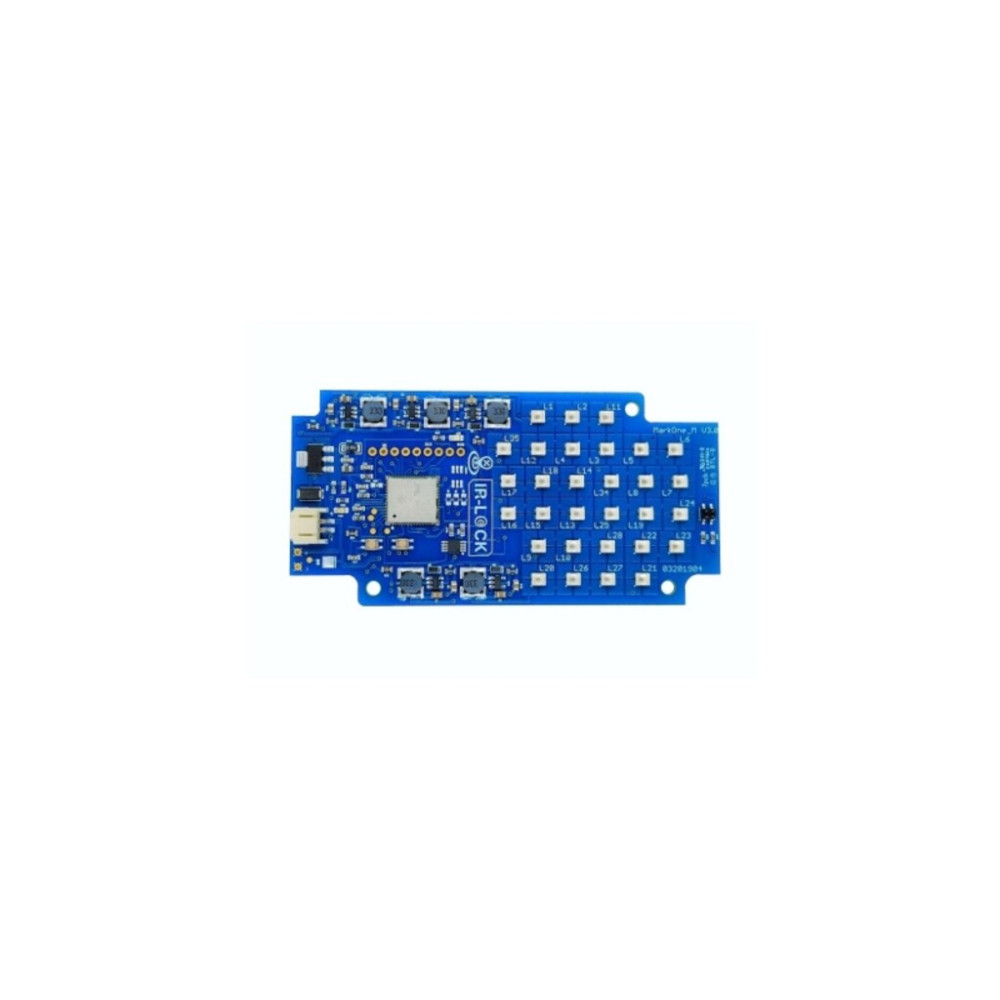

HEX MARKONE BEACON V3.0 BEC203

MarkOne is the preferred Precision Landing system for automated commercial drone systems

The MarkOne Beacon System provides robust and reliable target detection in virtually all lighting conditions, including highly reflective surroundings, e.g., when flying over water, vehicles, etc. See the demo videos below, and check the documentation for more details on integrating IR-LOCK into your robotics project.

Specifications:
Detection Range: 15+ meters
Beam Angle: ~70 degrees
PCB Dimensions: 100x50x8mm
Dimensions File: MarkOne2.dwg
3D Case Model: Top.stl, Bottom.stl
Voltage Input: 10.2-14V (suitable for 3 cell lipo)
Power Consumption: 0.25A @ 12V
Power Connector: 2 Pin JST PH (S2B-PH-SM4-TB(LF)(SN))

Package Includes:
1x MarkOne V3.0 Beacon
1x Female JST PH Cable (14cm)
