MOTOR OS FS-200S RINGED 4 TEMPOS 35940

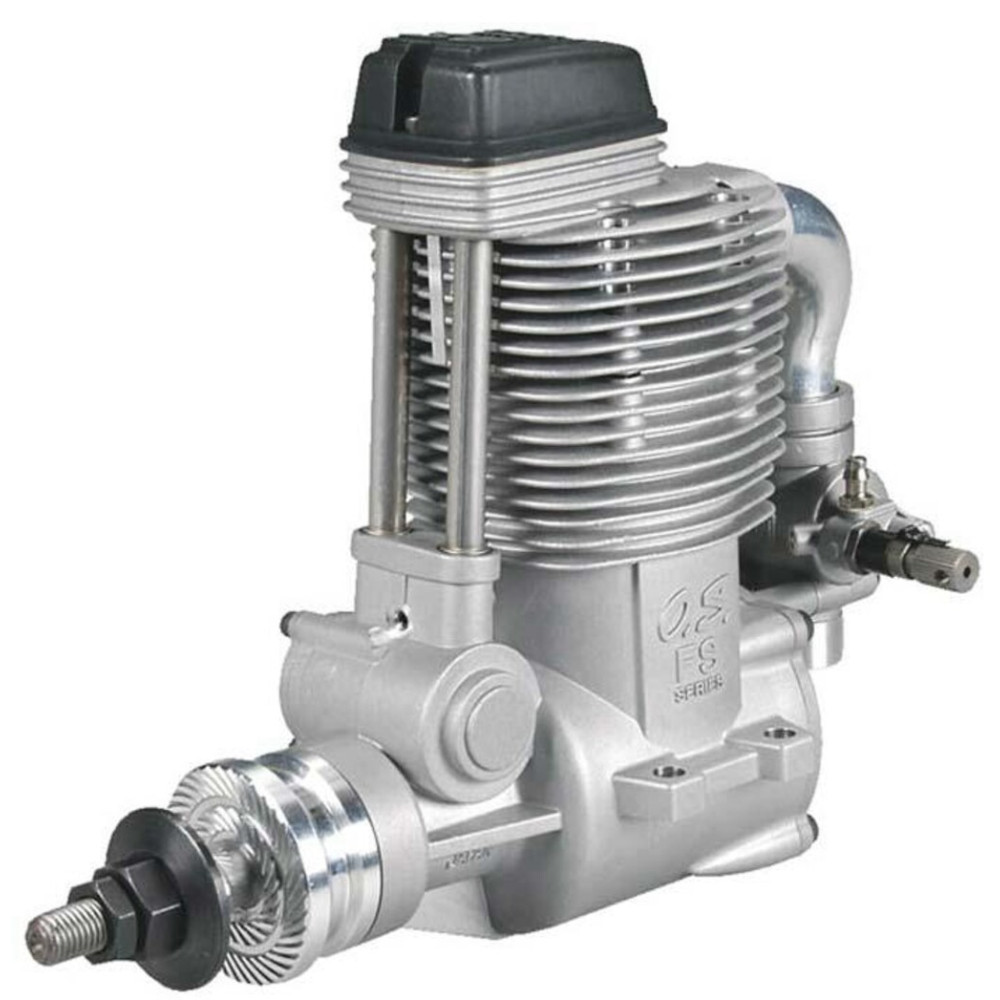

This is the O.S. Max 2.00 FS-200S Surpass Four Stroke Engine.

FEATURES:

• Ideal for scale and sport aircraft
• 80N carburetor can be reversed 180° for easy adjustment
• Multi-directional F-6010 silencer for mild 4-stroke sound
• Two year limited warranty

INCLUDES:

• O.S. Max 2.00 FS-200S Four Stroke Engine with type "F" glow plug, F-6010 muffler, header pipe, instruction manual.

REQUIRES:

• Fuel: 5-30% nitro with at least 18% lubricant content
• Propeller: 15x12-14, 16x12-14, 17x10-13, 18x6-10, 17x12-13, 18x8-12, 20x8 (break-in engine with prop intended for use on model)
• Electric Starter: High torque
• Glow starter and field equipment

SPECS:

• Displacement: 1.98 cu in (32.4cc)
• Bore: 1.50" (38.0mm)
• Stroke: 1.13" (28.6mm)
• Practical RPM: 1,800 - 10,000
• Output: 2.9 ps /9000 RPM
• Weight: 32.8oz (930g) without muffler 34.2oz (970g) with muffler
• Crankshaft Thread Size: 5/16-24
• Break-in Carburetor Settings;
• Needle Valve: 3-4 turns open from fully closed
• Idle Mixture: Slightly rich (45-60°) from highest RPM setting
• Mixture Control Valve: 3 turns in from counterclockwise
• Distance Between Mounting Holes Same Side: 0.98" (25mm)
• Distance Between Mounting Holes Opposite Side: 2.3" (58mm)
• Height from Crankcase Bottom to Rocker Cover: 5.7" (144mm)
• Height from Crankshaft Center to Rocker Cover: 4.7" (119mm)
• Height from Crankshaft Center to Muffler Center: 3.2" (82mm)
• Distance from Crankcase Center to Prop Hub: 0.27" (77mm)
• Width at Mounting Tabs: 2.6" (67mm)
• Width of Crankcase Below Mounting Tabs: 1.9" (48mm)
• Width of Cylinder Head: 2.2" (58mm)
• Distance from Carburetor to end of Crankshaft: 6.8" (172mm)
• Distance from Carburetor to Crankcase Center: 2.3" (58.5mm)
• Distance from Carburetor to Prop Hub: 5.3" (135.5mm)
