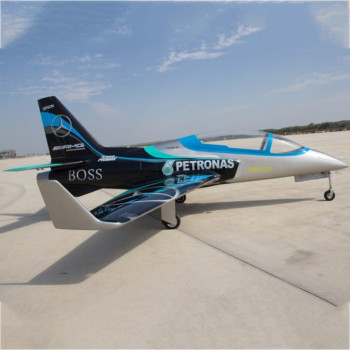

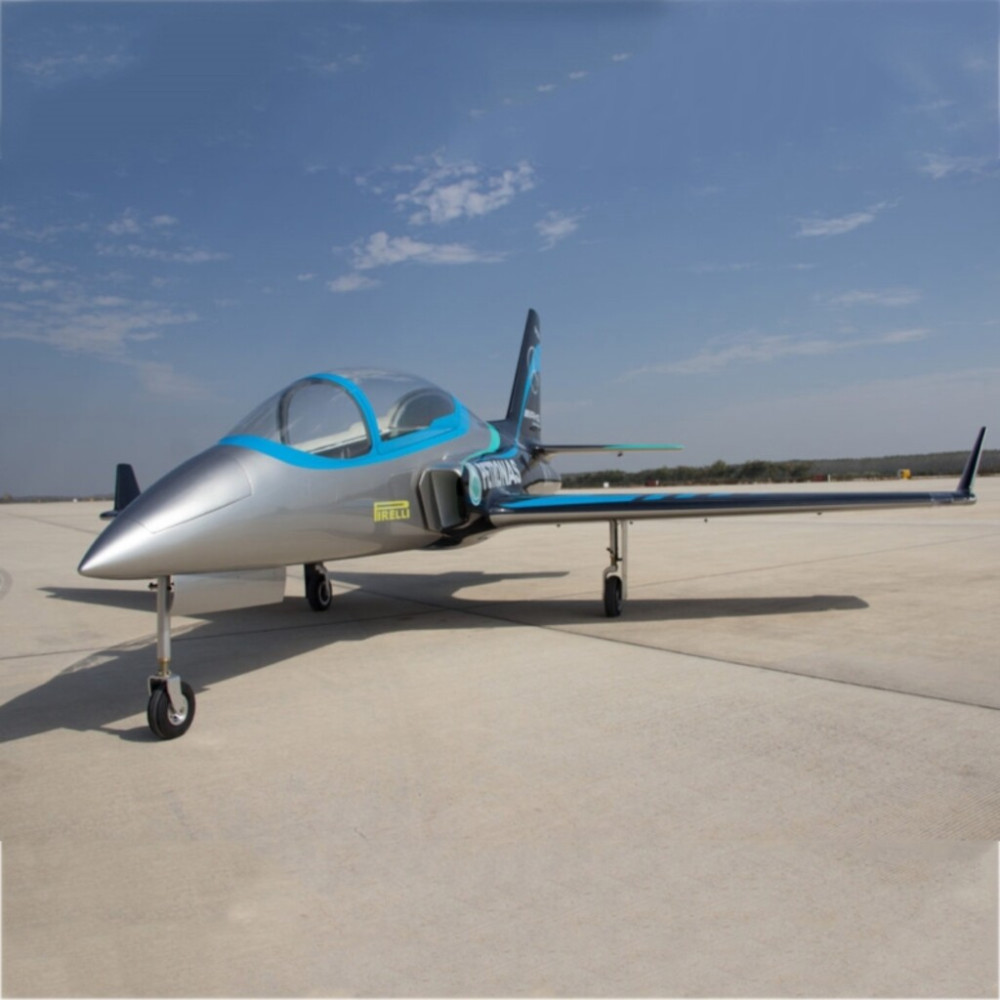

AVIAO PILOT RC VIPER JET MKII 118" (3.0M) 10 BLACK/SILVER/BLUE RACING

Viperjets are synonymous for a great flying jet, and this one really fulfils with expectations.

Fast, slow, scale, acrobatic, fun, easy, it simply ticks all the boxes for your next jet!

FEATURES:

Full composite construction, lightweight and strong

Removable two piece fuselage, the tailpipe mounts only on the rear fuselage section, allowing for easy removal and transport.

Removable rudder, two piece wing and two piece stabilizer all for easy transport

Painted outside the mold so no seam lines

Pre-installed tubes for servo extension leads

Servo operated nose gear door. Mains attached direct to struts.

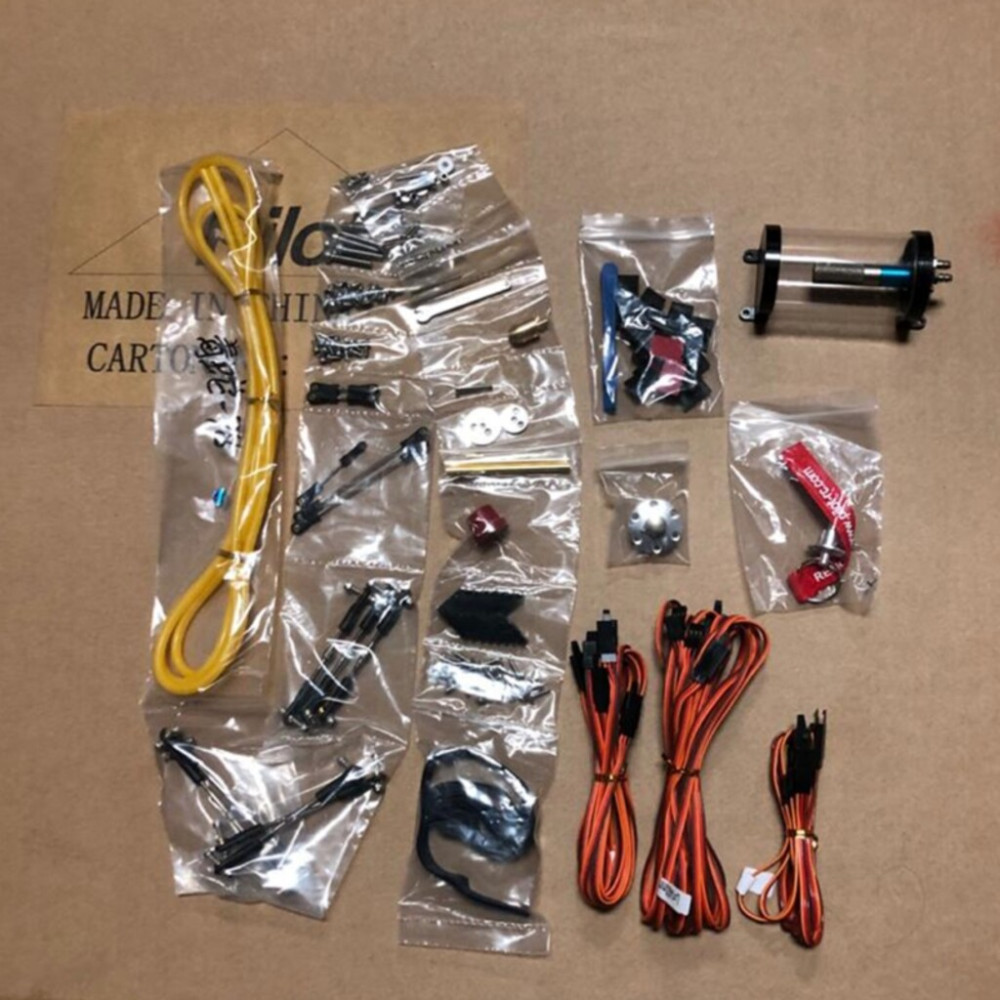

INCLUDED HARDWARE:

Complete air frame (including carbon wing-tubes and fibreglass control horns)

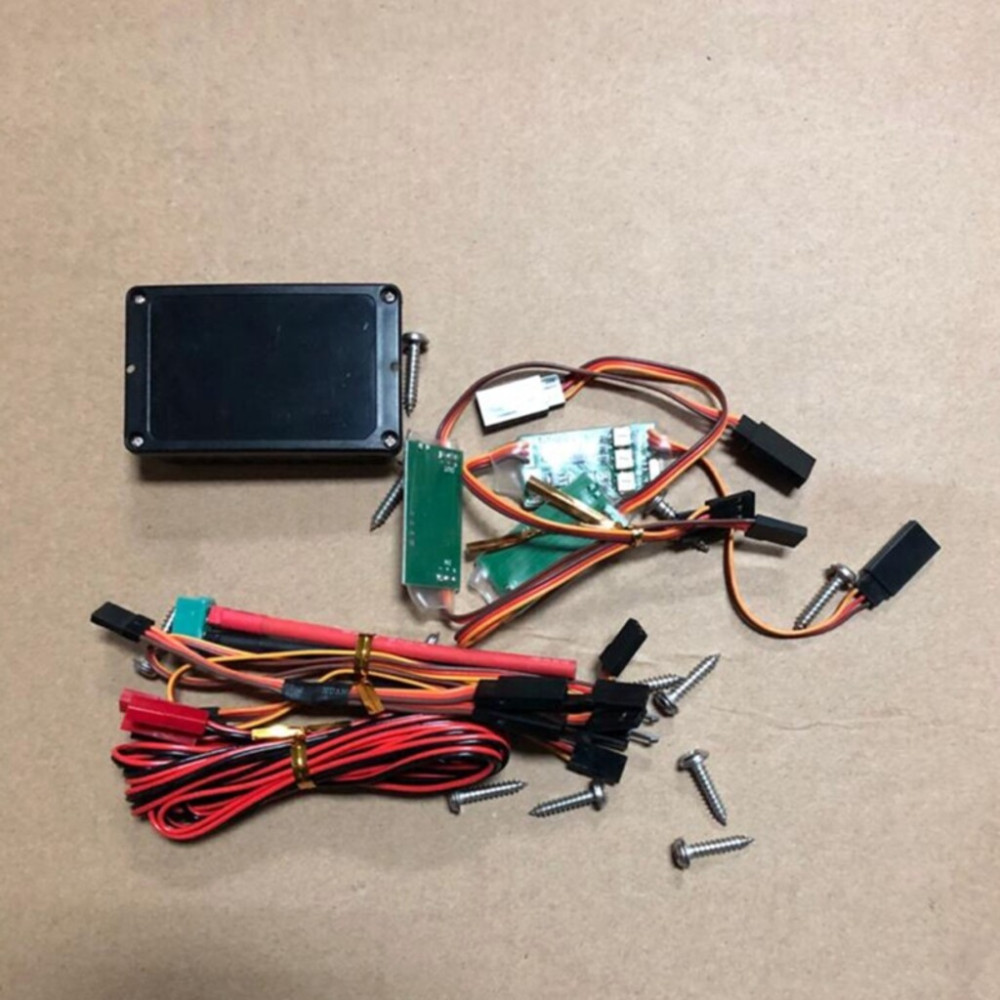

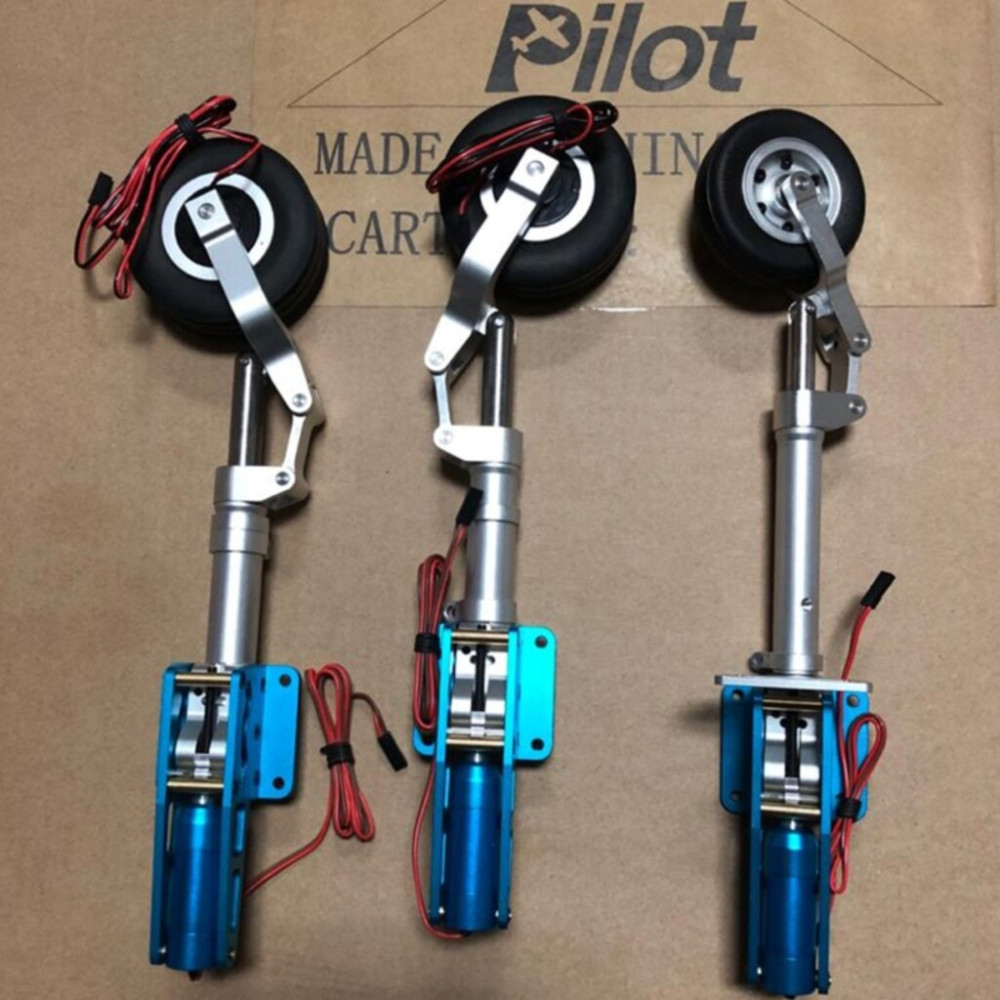

Pilot-RC electric retracts and electric brakes

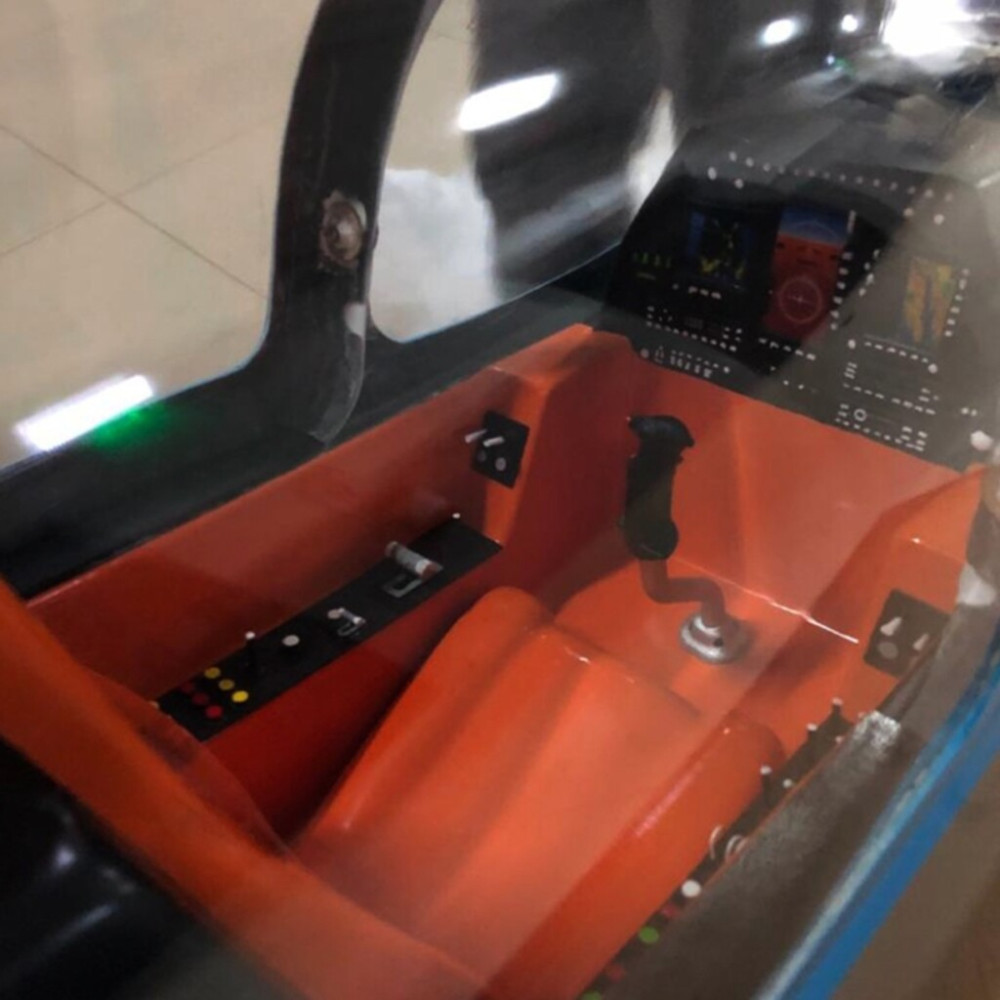

Scale cockpit (minus pilot)

Dual wall tail pipe (for 160-310N turbines)

2in1 tank. 4.7L main + 1.5L smoke. Includes fuel tubing pre-prepared, fuel dot and breather valve

Aluminium air trap UAT

Pre-prepared pushrods with ball links

REQUIRED HARDWARE:

Turbine: 160-310N

Servos: 9 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder, x1 for nose gear door and x1 for steering. Rudder and Flap servos are recommended to be +27kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

BUILD INFO:

Aileron: 27mm, Rudder: 44mm, Elevator: 38mm. Flap: 38mm for take off and 82mm for landing.

The CG is  305mm from the front leading edge on the root of the wing.

SPECIFICATIONS:

Model: Viperjet MkII 3.0

Wingspan: 130″ (3,260mm)

Length: 118″ (3,000mm)

Weight: 48.2lbs (21.9kg) – without fuel
