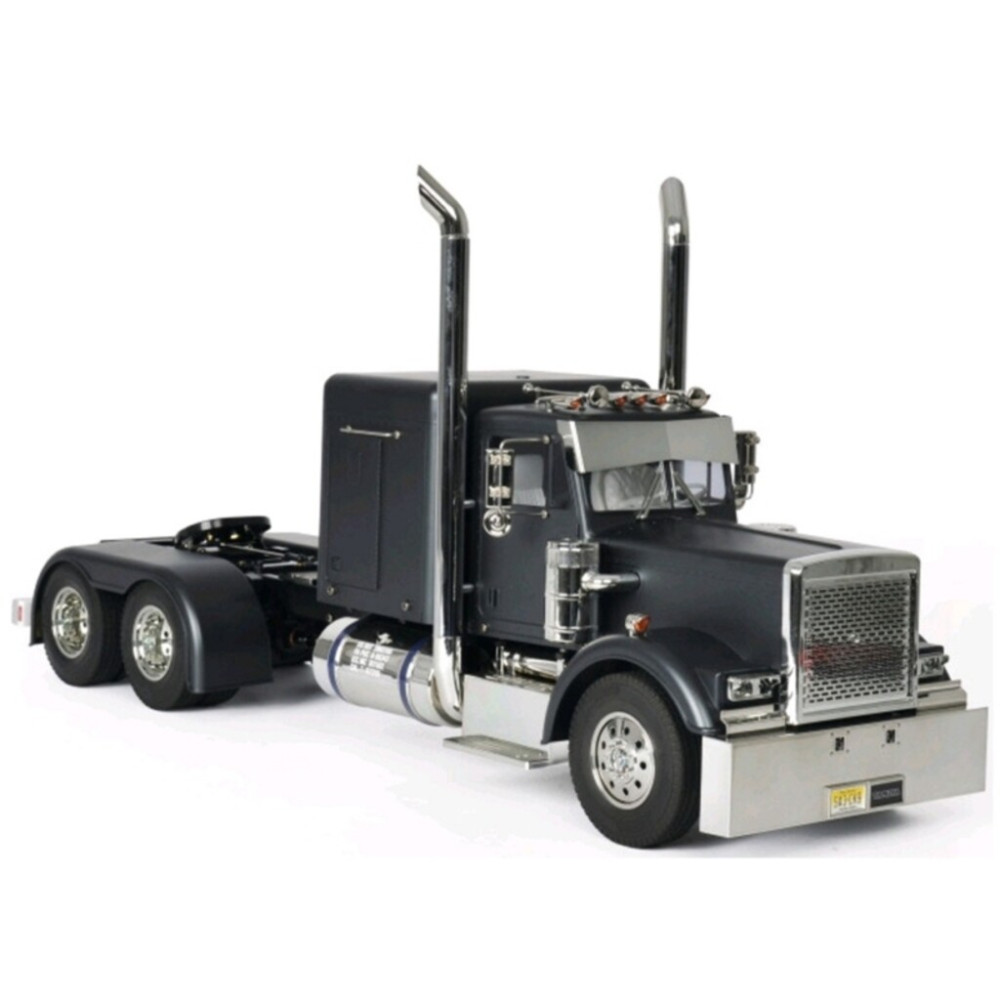

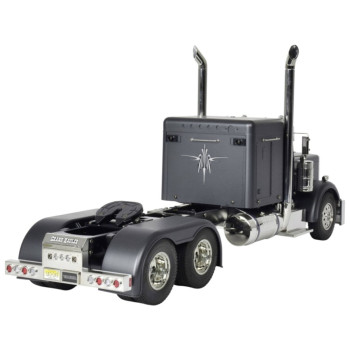

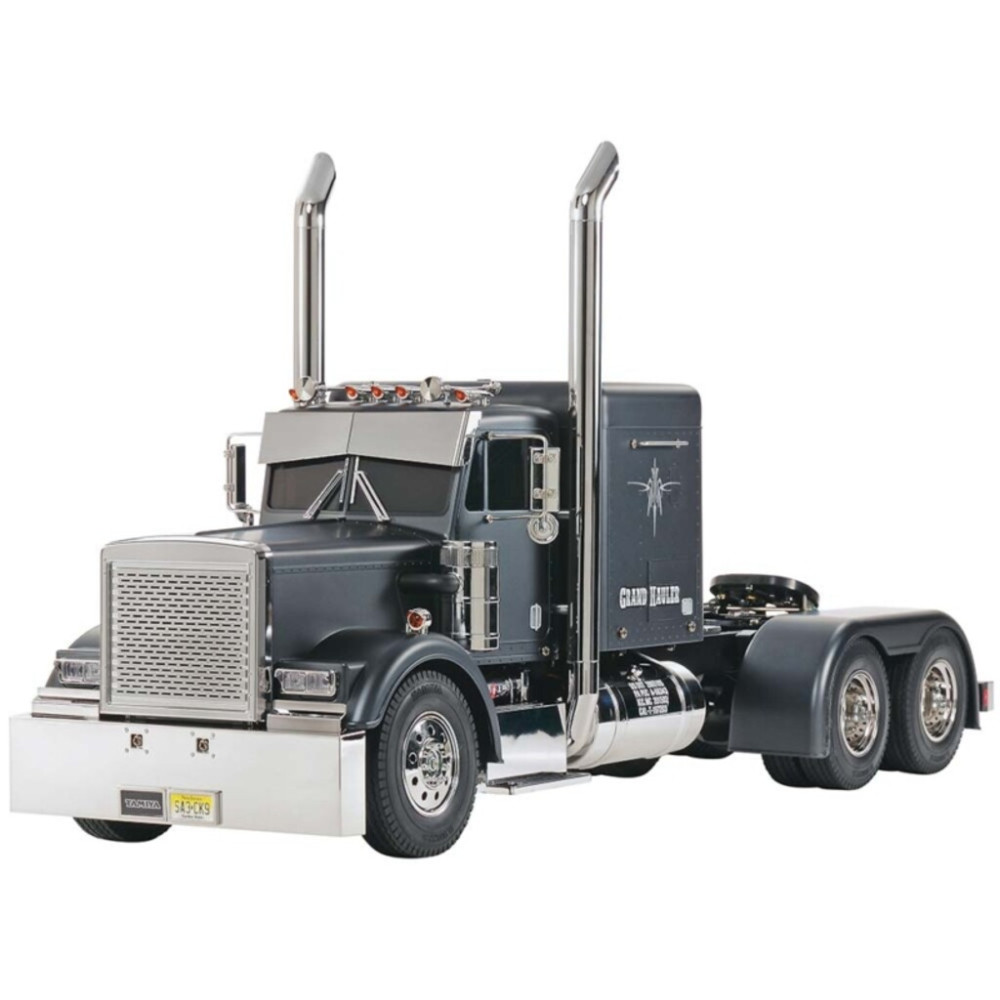

SEMI-TRUCK TAMIYA 1/14 RC GRAND HAULE MATTE BLACK EDITION 56356

This is the electric powered, radio controlled, 1/14 scale Tamiya Grand Hauler Black Edition Semi Truck Kit.

Compatible with the Tamiya Tractor Truck Option Parts for further customization.

FEATURES

• Chassis: Ladder frame with aluminum channels and resin cross members
• Body: Pre-painted Metallic Black (Tamiya Color TS-40) with matte coating applied over the metallic black
• Cabin: ABS plastic, grille and mirrors, clear plastic windows
• Drive: Shaft driven from front mounted motor to rear axles which are equipped with differentials
• Motor: RS540
• Transmission: Three speed servo controlled constant mesh, allows shift on the fly low, medium and high, in forward and reverse
• Shocks: Aluminum body, friction (not-oil filled), coil springs
• Suspension: Die cast metal front axle and reinforced resin rear axles float mounted on metal leaf springs and coil spring shocks
• Wheels: Chrome plated plastic
• Tires: Ten, treaded rubber construction

INCLUDES

1/14 scale Tamiya Grand Hauler kit, 540 motor, tires, cabin, wheels, decal sheet, 3-speed transmission, instructions and coupler unit for trailer (trailer not included)

REQUIREMENTS

• Radio: 4-channel with 4-channel receiver, NOTE; radio w/analog or digital trims can be used if not planning to use the Multi Function Unit, if Multi Function Unit will be used, a radio with analog trims MUST be used
• Servos: Two standard size for steering and shifting
• Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do not use the
• Tamiya TEU101BK or the TEU104BK
• Battery: 6-cell stick
• Battery Charger: Timed or peak for 6-cell battery Paint, building & track equipment

SPECIFICATIONS

• Length: 27.2" (692mm)
• Width: 7.5" (190mm)
• Height: 11.8" (300mm)
• Gear Ratio: Low Gear 1:32.49
• 2nd Gear 1:17.66
• 3rd Gear 1:10.66
