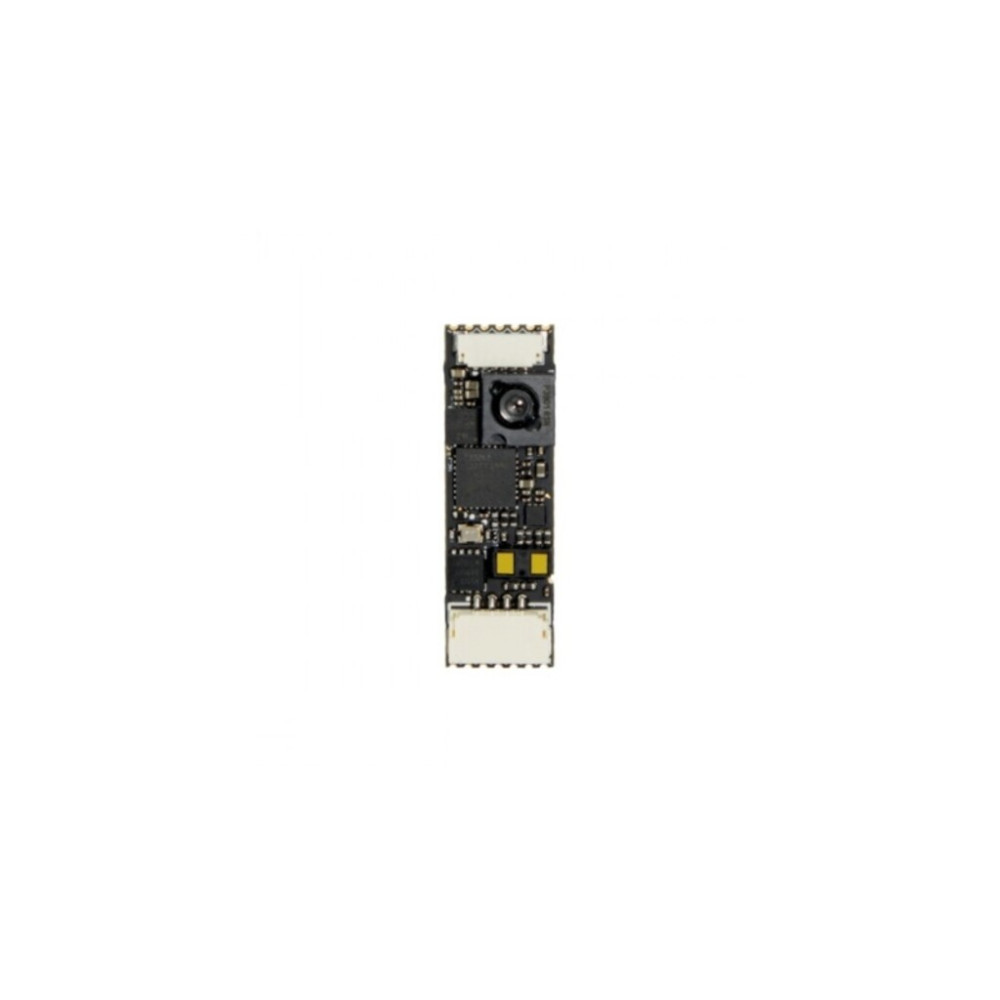

HEX HEREFLOW HX4-06076

Product Overview Here Flow

• Built-in ultra-small lidar modules
• The CAN Protocol, which provide more reliable communication
• Built-in IMU Module
• PMW3901 Optical Flow Sensor. Effective ranges from 80 mm to infinity
• 28.8 x 9.5 mm

Technical data optical Sensor

• Range 80 mm to infinity
• Field of view 42 degree
• Maximum movement speed is 7.4 rad/s
• Minimum illumination > 60 lux
• Infrared emitters, 940 nm, invisible light emission (Class1)
• Operating temperature -20 to +70 °C
• Interface CAN
• Power supply 5 V

Technical Data Of The Lidar Module

• Measuring frequency Up to 50 Hz
• Field of view 27 degree
• Longest distance 2m
• Accuracy ±3 %
• Infrared emitters, 940 nm, invisible light emission (Class1)
• Operating temperature -20 to +70 °C
• Interface CAN
• Power supply 5 V
