TURBINA KINGTECH K-30G3 KERO START

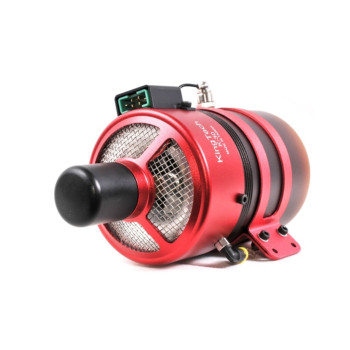

KingTech K-30G3 turbine engine, made in Taiwan

• Specifications:
• Diameter: 62.9mm
• Length: 160mm
• Weight: 450g (Include internal valve, mount, Digital control system, FOD
• Screen)
• Max. RPM: 235000
• Thrust: 3kg+ @ 15° C
• EGT: 720 °C max
• Fuel consumption: 120 g / min
• Fuel: Jet A1, Kerosene
  Lubrication: 5%




Important Note for K30G
1. Do not replace the cables with non-genuine parts, the digital communication between the K30G ECU and the engine is proprietary and unique to KingTech.
2. Use “Test pump caution” function to prime the fuel lines before first engine start.
3. Bubbles in the fuel system have adverse impact on small engines. They may cause unpredictable engine shut off. Please shake the UAT to release bubbles before flight.
4. There is a red colored adhesive in the packaging to be applied on the signal cables and on the MRX connector to prevent loose connection due to vibration.
5. Turbojets are more powerful compare to ducted fans. It does not need full throttle during entire flights.
6. Do no position the engine upside down.
7. Diesel fuel is not recommended.
