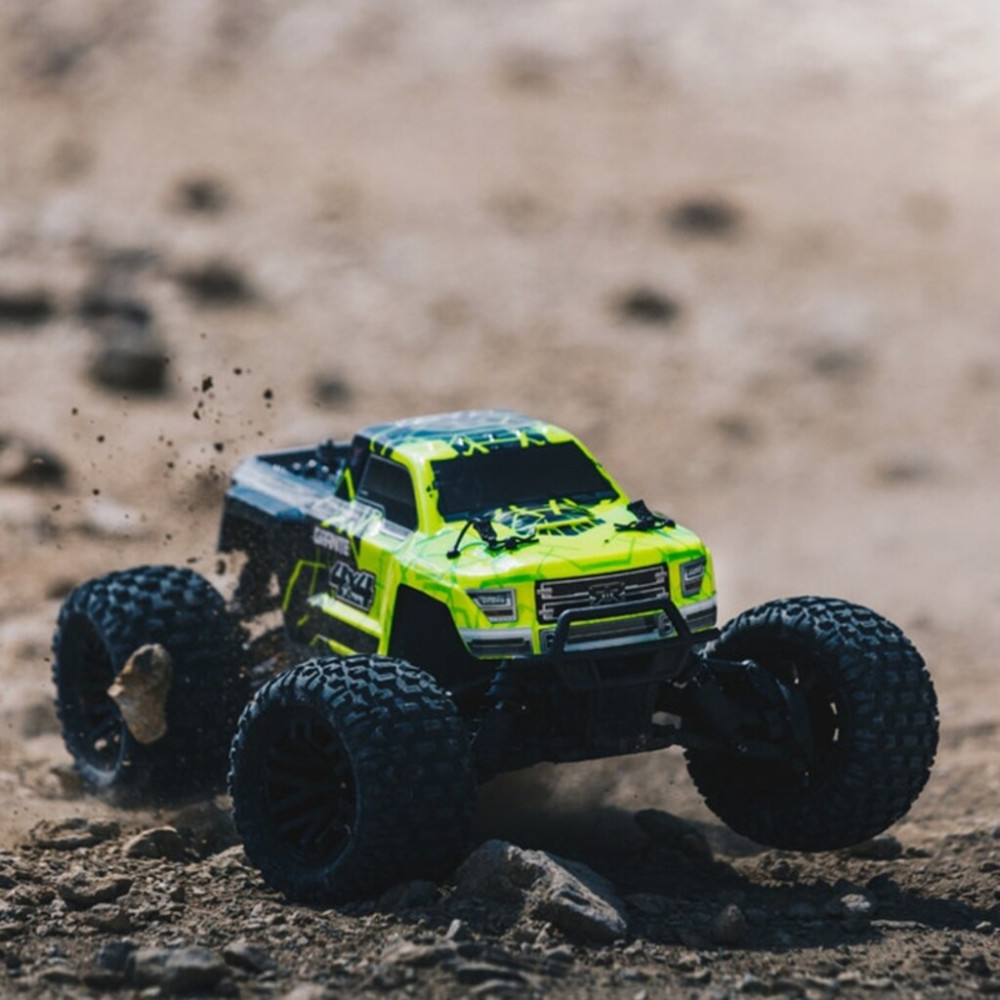

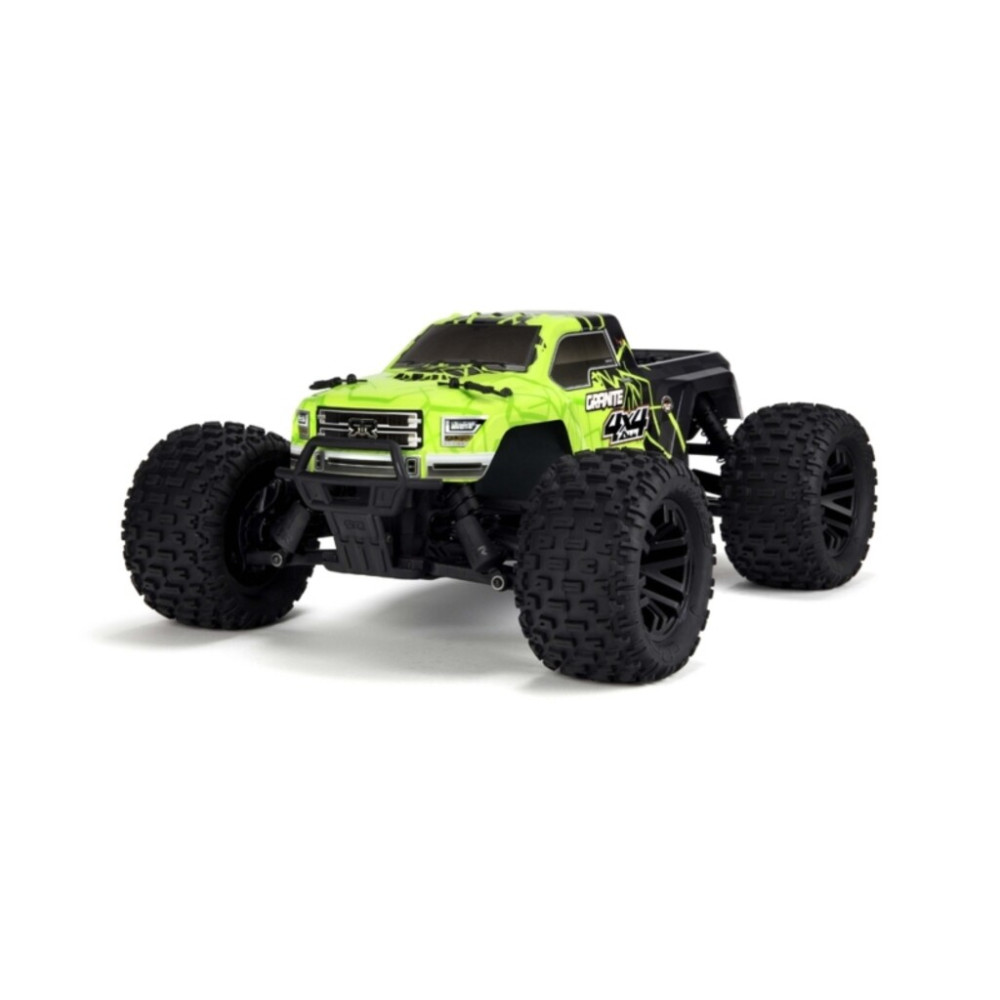

CARRO ARRMA GRANITE 4WD MEGA MONTER TRUCK 1/10 RTR GREEN AR102665

Key Features

Chassis: Molded plastic, can hold batteries ranging from a 6-cell NiMH to a 2S LiPo pack 6.14" (156mm) long, and 2" (51mm) wide

Drive: Four wheel with telescopic sliding composite driveshafts, spring loaded center driveshaft ensures solid engagement with front and rear gearbox inputs

Differentials: Full metal straight cut internal gears eliminate shimming or meshing issues

Suspension: Double wishbone front and rear

Radio: 2.4GHz Tactic TTX300 3-channel with steering and throttle end point adjustments, steering rate adjustment, user programmable 3rd channel, TR326 receiver with fail/safe

Steering Servo: ADS-5 waterproof case, 70oz/in (5kg-cm) of torque, 25T spline

Motor: Brush equipped, Mega 12T 550 size

Electronic Speed Control: Arrma Mega, compatible with 550 size motors down to 12 turns, handles 5-9 cell NiMH, or 2S LiPo (7.4V) LiPo batteries

Shocks: Composite body, coil over, filled with 500cst silicone shock oil, equivalent to around 40wt shock oil from other manufacturers

Shock Mounts: Molded plastic

Steering: Ball raced steering with fixed molded upper links, servo saver

Battery: 7-cell 8.4V 2400mAh NiMH hump configuration, T-plug connector, secured in chassis with two hook and loop straps

Battery Charger: Wall type

Pinion Gear: 14 tooth 48 pitch metal

Body: Trimmed and printed

Wheels: Multi spoke nylon construction, black in color, 14mm hex

Tires: All terrain dBoots Fortress MT with memory foam inserts

Caster: Non-adjustable caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis

Camber: Non-Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle

Video Overview

Specifications

Vehicle

Length: 16.9" (429mm)

Width: 13.5" (342mm)

Height: 7.7" (196mm)

Weight: 6.5lbs (2.9kg)

Wheelbase: 11.3" (287mm)

Ride Height: 1.85" (47mm)

Max Battery Dimensions: 6.14 x 2.01 x 1.89" (156 x 51 x 48mm) with battery mounting block removed*

Body

Length: 15.7" (400mm)

Width: 6.4" (163mm) at rear wheels, widest point

Height: 4.3" (109mm)

Needed to Complete

AA Batteries: Four for transmitter

What's in the box?

(1) Assembled Granite Mega 4x4 Monster Truck with Radio, Electronics Module, Trimmed Body, Battery and Charger

(1) User Manual
