DJI ACE ONE

0 comentários / Escreva um comentário

  • $399,00

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.


Ace One Características

  • Designed For All Uav Helicopter Platform
  • Compact Size & Light Weight
  • Easy Installation
  • Multiple flight control mode/ Intelligent Switching
    • Designed For All Uav Helicopter Platform

    Designed For All Uav Helicopter Platform

    ACE ONE works on all kinds of helicopters: Bi-blade, tri-blade aircraft, aircraft with or without flybar, all kinds of swash plates and rotor heads, electronic or gasoline or turbine helicopter engines. All types of helicopter can be installed with ACE ONE quickly and easily.
    • Compact Size & Light Weight

    Compact Size & Light Weight

    ACE ONE components weigh under 150g combined, which can be almost ignored from the payload. The size of the main controller is 61mm x 39.6mm x15.8mm, IMU module is 40mm x 31mm x 26mm, and the GPS module has a diameter of 50mm and a height of 9mm. The whole ACE ONE package is smaller than a standard package cigarette box. ACE ONE can even be installed on size 450 helicopter.
    • Easy Installation

    Easy Installation

    The innovative built-in damping system allows the helicopter to be installed without additional frames and dampers. The system helps customers to minimize size, reduce weight and gives simplified installation that can be applied on different helicopter models. Customers also have more options for physical installation.

    Multiple Flight Control Mode/ Intelligent Switching

    ACE ONE offers four types of control modes : GPS Cruise Mode, GPS Atti. Mode, Atti. Mode, Manual Mode. Customers can switch between the four modes to adjust different flight environments even in the specially weak GPS environment such as: Building clearance, valley clearance, bridge bottom or mountain cave. ACE ONE can also adjust automatically in the flight environment. For example when aircrafts come through the bridge bottom with GPS intermittence, ACE ONE system will switch between GPS mode and Atti. Mode automatically to ensure safety and security of flight.
    • GPS Cruise Mode

    GPS Cruise Mode

    In GPS cruise mode, it not only keeps aircraft attitude stable, it will also lock the aircraft position accurately. Flight speed control; Stick center position for 0m/s, its endpoint for maximum speed set by user. GPS cruise mode helps aircraft with accurate and smooth flight movement that is specifically required for aerial photography.

    GPS Atti. MODE

    GPS Atti. mode has the same performance as GPS cruise mode. The only difference is the helicopter attitude control. Stick center position for 0° attitude, its endpoint for 45°which is a fixed limit. GPS Atti. mode can be used promptly and with a big flight movement. It will bring to you a new and excellent flight experience.
    • Attitude Mode

    Attitude Mode

    Atti. Mode is suitable for when no GPS or weak GPS signal is achieved. ACE ONE can control attitude stabilization and lock flight altitude accurately; Stick center position for 0° attitude, its endpoint for 45°which is a fixed limit. Atti. mode also can be used promptly and with a big flight movement.

    Manual Mode

    Manual Mode is mechanical driving directly. With flybarless support, autopilot will not stabilise the aircraft. Manual Mode is suitable for the experienced pilot.

    Accurate Position & Altitude-Lock Hovering

    Autopilot system offers longitude & latitude locking and high accuracy hovering. Even in a windy environment, aircraft can hover in a small scale area. Accuracy: horizontal≤2 meters. Altitude≤0.5 meters.

    High Accuracy & Driving Handfeel

    With the help of ACE ONE, controlling aircraft feels like driving a car, as simple and intuitive strong control of the flight itself has become an easy and precise operation; The pilot can focus more attention in other areas, such as controlling the camera angle, without tension in the driving.

    Semi-Auto Take-Off & Landing

    In ?GPS Cruise Mode?or?GPS Atti. Mode?or?Atti. Mode?, requiring only a push of the throttle (collective pitch) stick gently to take-off helicopter, the autopilot system will be in charge of the cyclic pitch/roll stabilization.

    Enhanced Failsafe

    Enhanced failsafe is the feature to ensure that the helicopter will hover automatically if it loses the RC signal. After losing the signal in a certain time period, ACE ONE will calculate the safest way to return the helicopter to the home position. The helicopter will hover over your GPS start point and land automatically. This feature will protect your expensive payloads and equipments.

    Built-In Gimbal Stabilization Function

    The gimbal stabilization module is compatible with almost all 2-axis gimbal systems. The system will adjust the gimbal and camera according to the attitude of the helicopter after setting the parameters the first time.

    Build-In Tail Gyro & Flybarless Support

    The tail gyro and FBL have become standard features of ACE ONE. No more extra work installing additional tail gyros and FBL electronic parts. The helicopter’s electronic system has been greatly simplified. Therefore different electrical parts can be connected much more easily. One central piece calculates all of the flying configurations.

    Build-In Engine Governor

    The engine speed lock and governor are also standard features for ACE ONE. The built-in engine governor simplifies the parameter settings, and increases the compatibility of the system. All you need is to connect an extra standard sensor to use.

    Data Import & Export

    All the setting data can be saved as files that export from ACE ONE system . Or importing the file to current main controller to avoid reboot calibration.

    Core Firmware Online Upgrade

    The professional DJI R&D team continuously provide the latest control algorithm and features/modules. You don’t have to mail the unit back or find service centres to upgrade anymore. All the upgrades can be done online. All you have to do is clicks!

    Ground Station

    Ace One can be upgraded to ground station. This is more powerful un-manned platform to satisfy the high requirements of our customers. Customer can activate the different function to meet their specific requirement.

    Ground Station equipped with 3D map and virtual flight dashboard that offers the flight real time data of attitude, position, speed and angle. The radio signal, accelerator position and Servo voltage are also displayed on ground station.

    Our autopilot systems and autonomous aerial platforms are used and applied in a wide range of commercial and industrial applications such as; aerial photography, surveillance, cartography, survey & rescue, power/ lines inspection, forest patrol, filming & advertising, police pursuit, military stealth, etc

    Size and Weight

    		 spec

    Basic Performance
    Supported Helicopter
    Electric and fuel powered
    Supported Swashplate
    Normal
    Three Servo 120° / 140° / 90°
    Four Servo 90°
    (All the types are fine tuning supported)
    Supported Servo Output *
    500Hz (760us) / 200Hz (1520us)
    for Rudder Channel;
    Others depend on your receiver output.
    Recommended Transmitter
    1 — PCM or 2.4GHz
    2 — Minimum 7 channels
    3 — Failsafe function available on all channels
    Recommended Power Supply
    DC 4.8~8.4V
    (Not be exceed MAX operating voltage of servo motor) More than 4000 mAH capacity Discharge current more than 5C No separate servo power supply required
    Operating Temp
    -5°C to +70°C
    Power Consumption
    MAX 5W
    (0.9A@5V, 0.7A@5.8V, 0.5A@7.4V, 0.4A@8V)
    Built-In Memory
    4GB Flash Memory for flight information recording
    Assistant Software System Requirement
    Windows XP / Windows Vista / Windows 7 / Windows 8

    Flight Performance
    Hovering Accuracy
    Vertical : ± 0.5m
    Horizontal : ± 1m
    Suitable Wind Condition
    < 8 m/s (17.7mph)
    Forward / BackwardLeft / Right
    ± 72 km/h (44.74 mph)
    ± 56.7 km/h (35.77 mph)
    Acceleration Ascent / Descent
    Adjustable via ACE ONE ASSISTANT software,can be limited by user precisely

    Hardware
    Weight
    <= 150g (The devices on helicopter)
    Dimensions

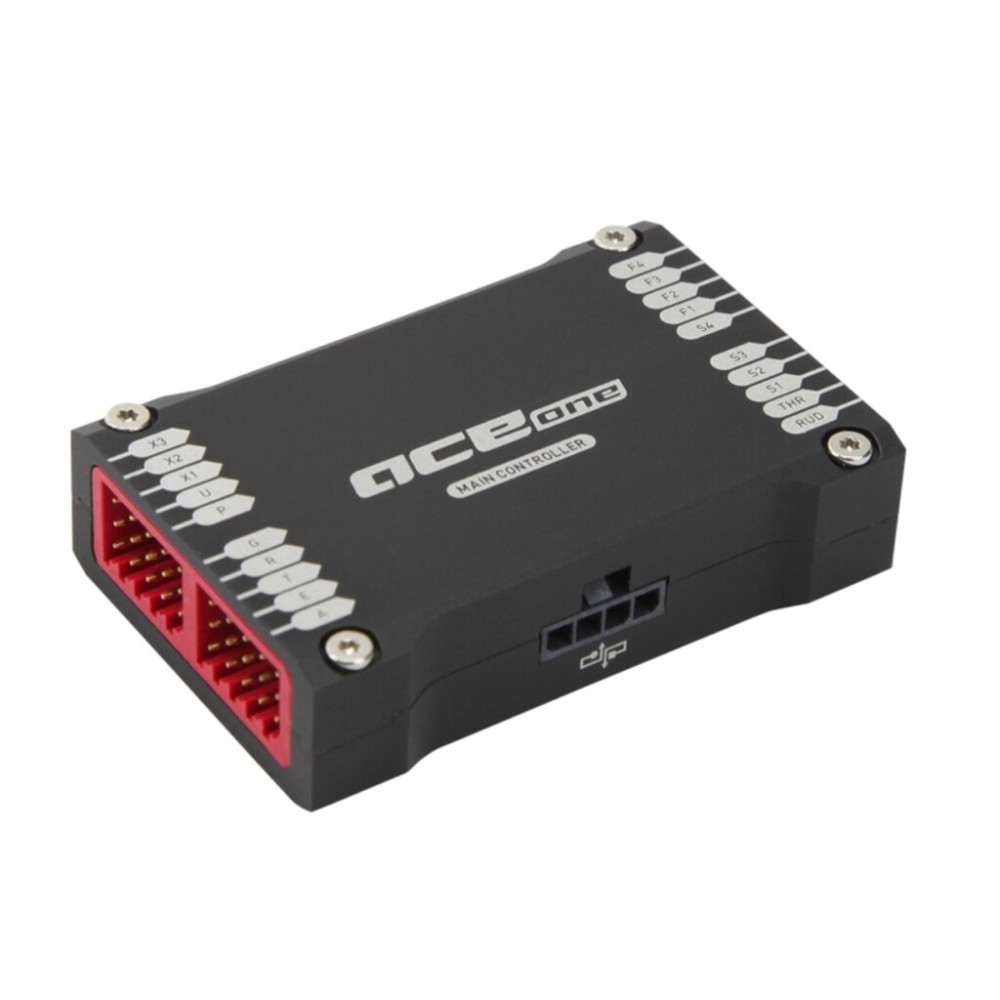

    Main Controller : 61 mm x 39.6 mm x 15.8 mm
    IMU : 40 mm x 31 mm x 26 mm
    GPS & Compass : 50 mm (diameter) x 9 mm
    Built-In Functions
    Autopilot / Tail Gyro / Flybar-less / Engine Speed Control / Gimbal Stabilization / Fail-safe Go-Home
    Packaging List
    Main Controller × 1
    IMU × 1
    GPS & Compass Module × 1
    Micro USB Cable × 1
    3-PIN Servo Cable × 10
    Quick Start Manual × 1

    * Recommended tail servos for Ace One:

    Futaba BLS251 Brushless Digital Tail Servo FUTM0521 Torque @ 4.8V: 53 oz-in (3.8 kg-cm) Speed @ 4.8V: 0.06 sec
    S9256 Heli High-Speed for GY601/GY611 Gyro 47 oz-in (3.4 kg/cm) 0.06 sec/60°
    Outrage BL 9188 High Voltage Brushless Digital Tail Servo 6.0v. 0.045/sec 7.4v 0.037/sec 8.4v 0.034/sec
    Outrage BL 9088 6.0v. 0.05/sec 7.4v 0.04/sec 8.4v 0.03/sec
    JR DS8900G Digital Tail Servo 0.05secs/60°
    JR MP80G Brushless Digital Servo 0.05secs/60°
    Align DS650 0.058 sec/60° (4.8V), 0.048sec/60° (6.0V)

    Notice: Flight Performance can be effected by mechanical performance and payloads
