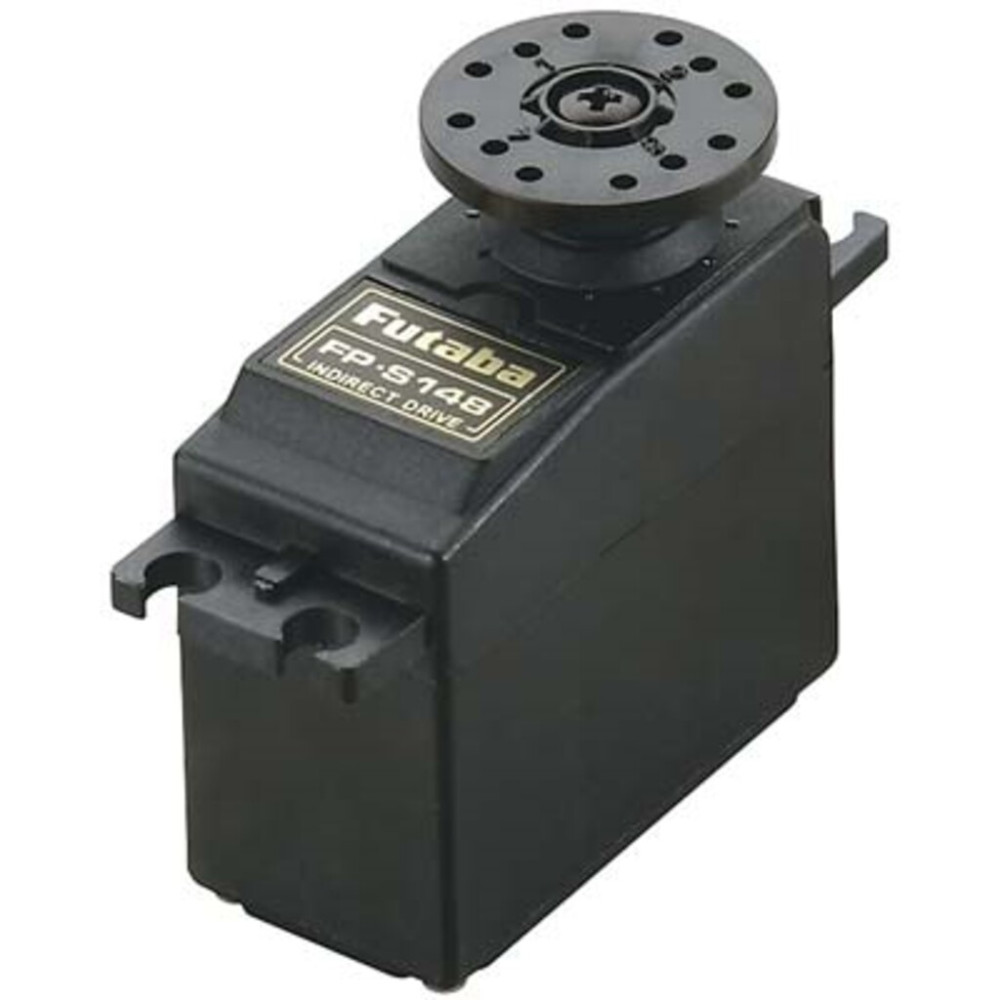

S148 SERVO FUTABA 3.0KG 01102217-1

The S148 Standard Servo yields increased power and speed with a reduced size and weight compared to the S128, yet uses the same gears and servo cases. This servo is a replacement for the following servos.(S6,S17,S18,S23,S26,S28 S38,S128) This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps. INCLUDES One S148 Standard Precision Servo w/"J" connector and metal top bushing One accessory package with round rubber grommets, brass eyelets, mounting screws, round and star shaped servo horn Nylon gears One year limited warranty through the Futaba USA Service Center beginning at date of purchase SPECIFICATIONS Control system: Pulse width control, 1.52ms neutral Motor: 3-pole Power requirement: 4.8V or 6V (from receiver) Power consumption: 6V 8mA (at idle) Torque: 33 oz-in (2.4 kg-cm) @ 4.8V 42 oz-in (3.0 kg-cm) @ 6V Transit Time: 0.28 sec/60° @ 4.8V 0.22 sec/60° @ 6V Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16") (40 x 20 x 36mm) Weight: 1.6oz (1-9/16oz) (44g) Mounting on-center dimensions Width: .4" Length: 1.9" Shaft Diameter: 5.88mm
