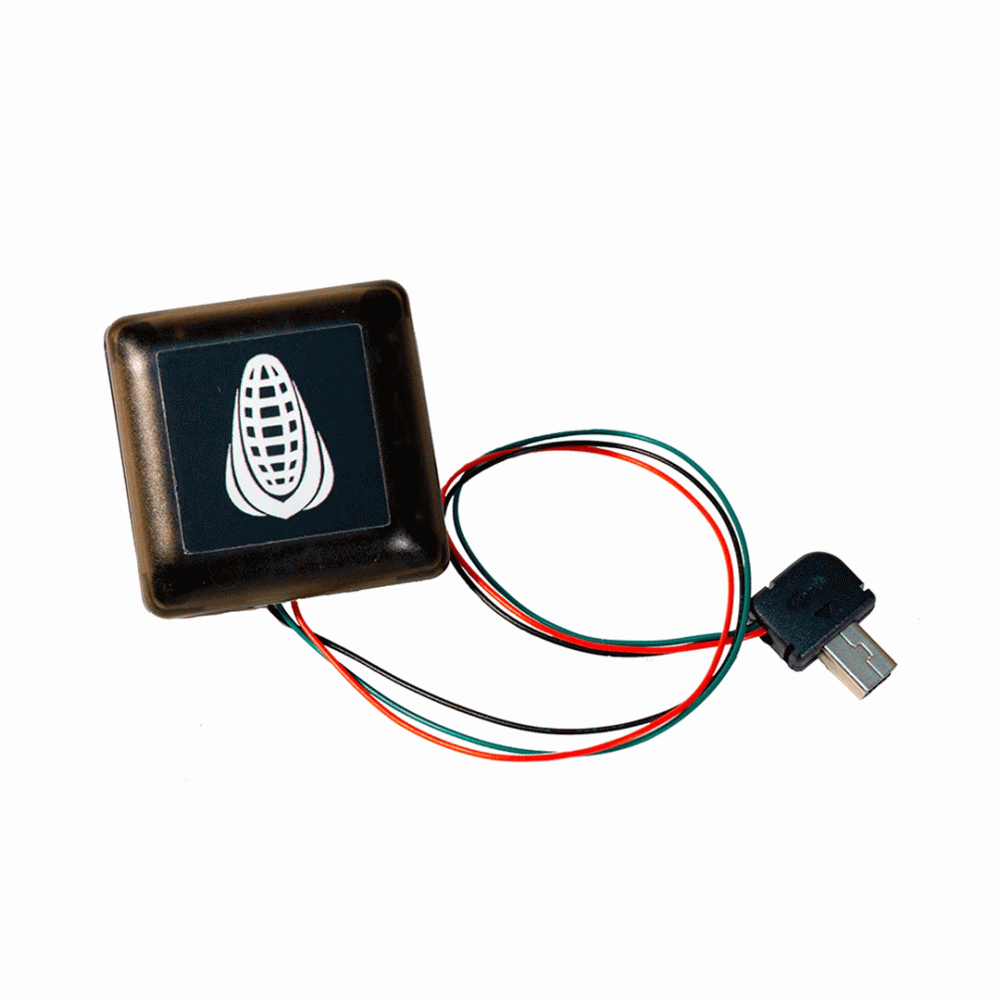

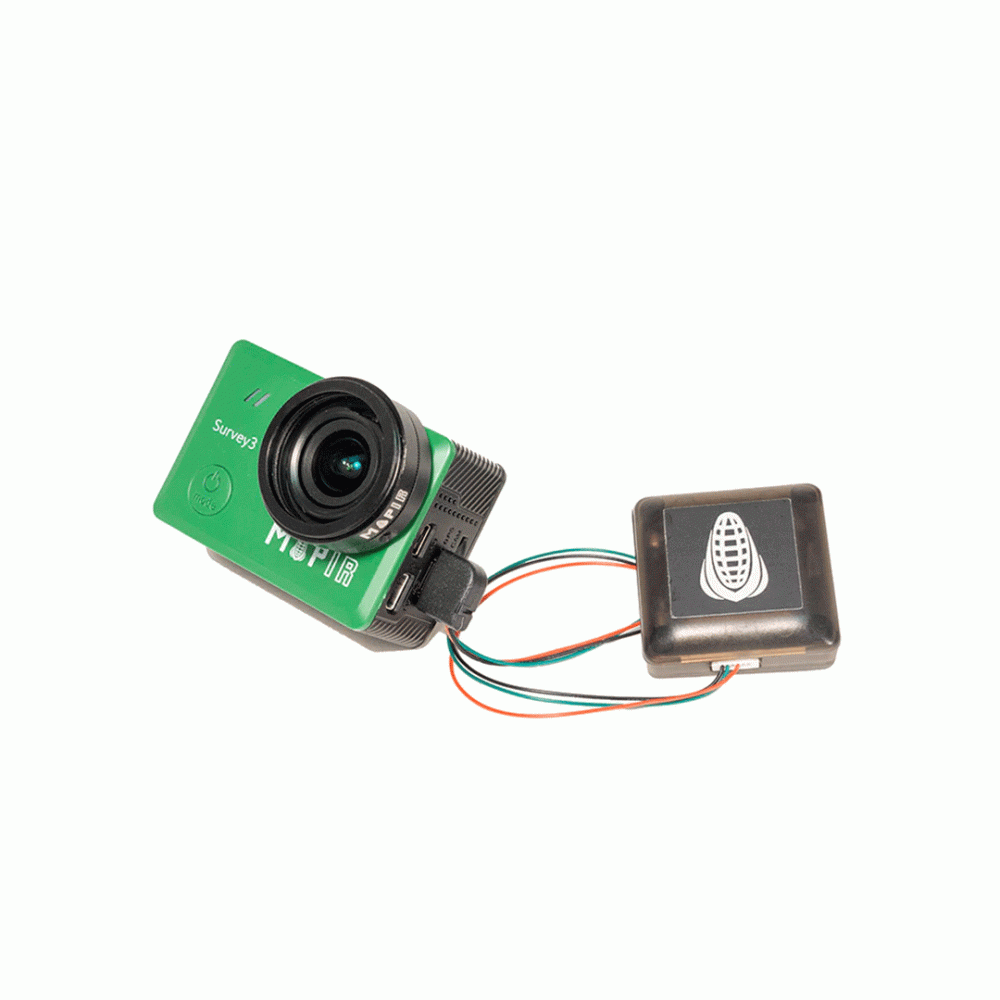

This Advanced GPS/GNSS receiver for the Survey3 cameras provides increased image geolocation accuracy compared to the Standard GPS. Using this receiver you will see much improved latitude, longitude and altitude location accuracy thanks to the newer u-blox NEO-M8 module (compared to the u-blox 7 used in the Standard GPS). It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts and up to 26 second cold starts. The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments.
Since this GPS receiver does not have a barometer it is still possible for the altitude values to be captured incorrectly, so some post processing may be required.
- GNSS Receiver: u-blox NEO-M8N
- GNSS Supported: BeiDou, Galileo, GLONASS, GPS / QZSS
- Receiver Case Dimension: 38 x 38 x 11 mm
- Antenna Dimensions: 25 x 25 x 4 mm (ceramic patch)
- Cable Length: 8 inches (20cm) (Increase HERE)
- Weight : 20.6g
- Industry leading -167 dBm navigation sensitivity
- Refresh Rate: Up to 10 Hz
- Baud Rate: 115200
- Cold starts: 26s
- LNA MAX2659ELT+
- Rechargeable 3V lithium backup battery
- Low noise 3.3V regulator
- Power and fix indicator LEDs

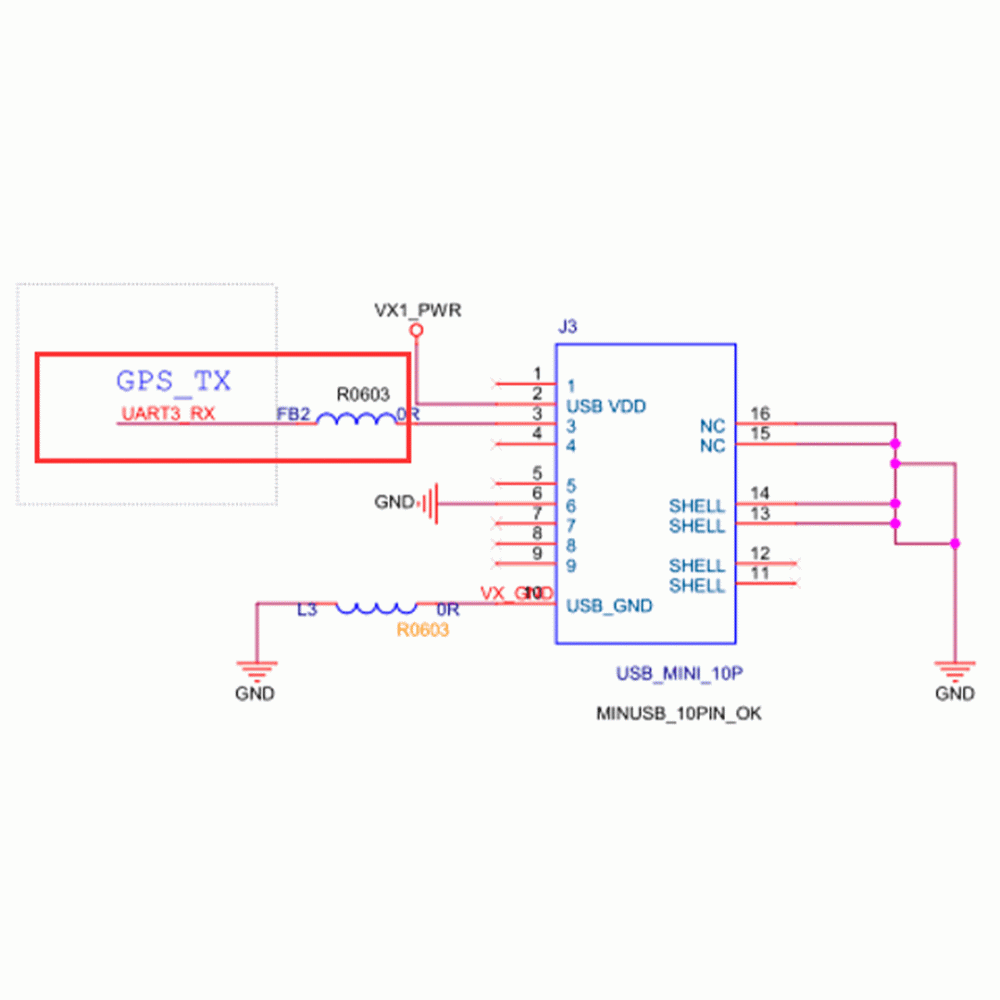

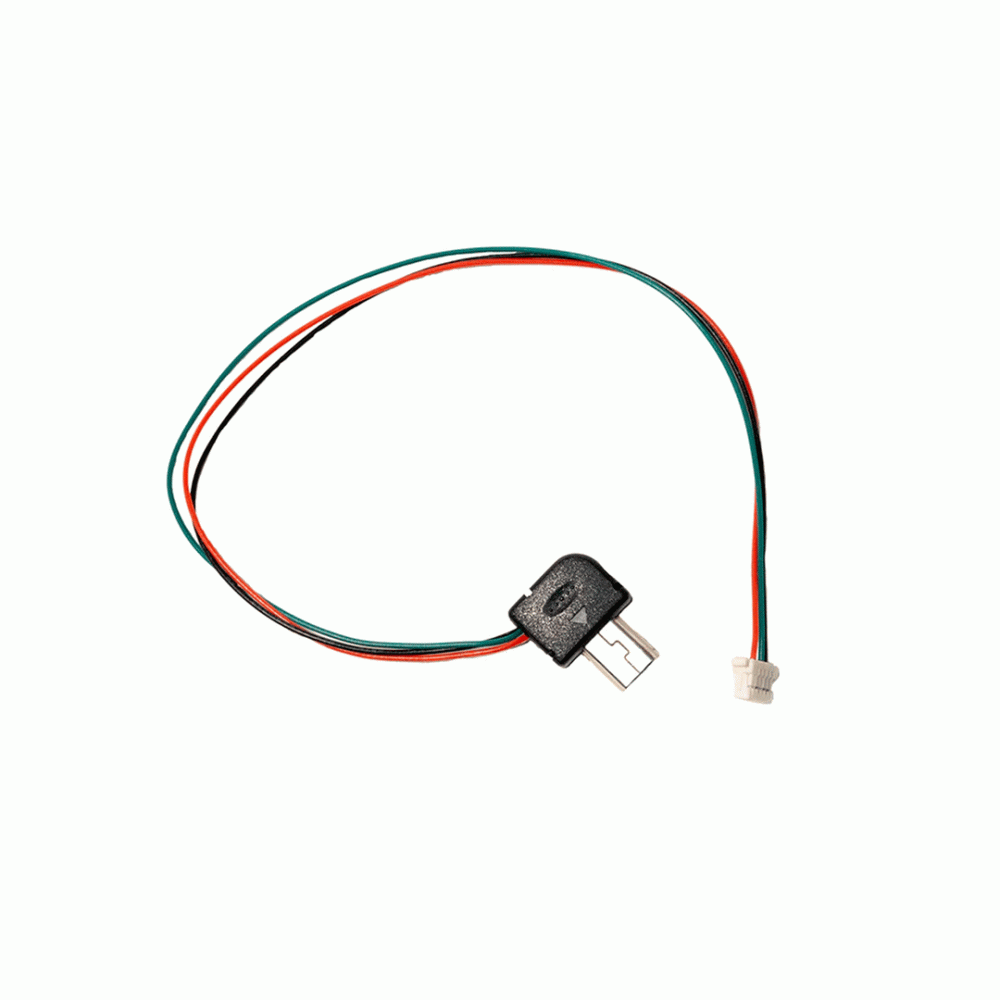

Advanced GPS Cable Details:
- Pin 1: Ground (Black Wire)
- Pin 2: GPS TX (Green Wire)
- Pin 4: 5V Power (Red Wire)
- JST-SH GPS Connector Information
