ALIGN A10 TRANSMITTER/RECEIVER HERA1002T

Product:

Product:

Product:

Product:

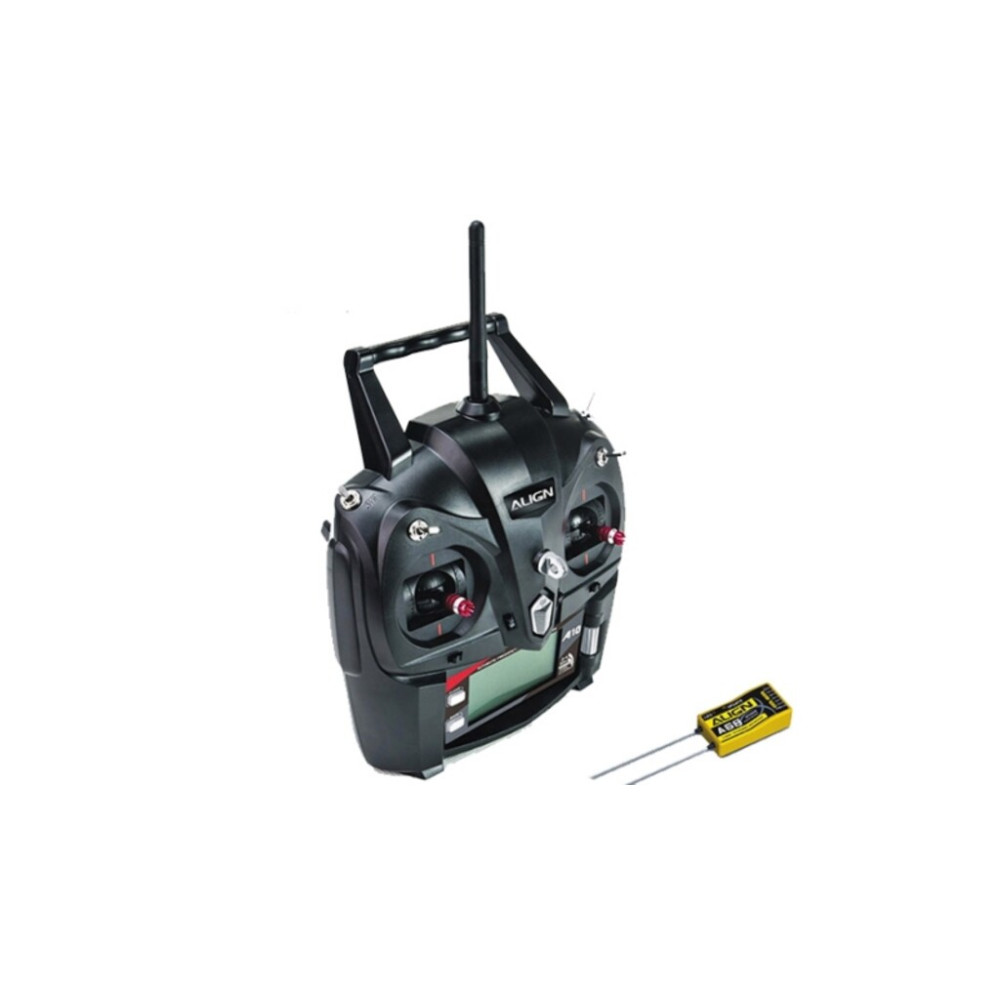

Focus Shot1(A10 Transmitter)Focus Shot2(A6B Receiver)Focus Shot3(AA carbon-zinc battery)

A10 Specification:A6B Specification:?Channel: 10 channels
System Mode: 2.4G system AFHDS 2A
Support Models: Helicopters, Multi-copters and Fixed Wing Aircrafts
Frequency: 2.4055 ~ 2.475 GHz
Transmission Distance: <1000M (In wide and no RF interference places)
Input Voltage: 4.0V ~ 6.0V
Weight: 485g(not incloude battery)
Size: 275x187x102mm
Channel: 14 channels
RX Sensitivity: -105dBm
RF Range: 2.4055 ~ 2.475 GHz
System Mode: 2.4G system AFHDS 2A
Power: 4.0 ~ 8.4V
Transmit Distance: In open space without interference <1000M
Dimension: 46.7x25.5x13.6mm
Instructions:Accessories:?AFHDS2A(Automatic Frequency Hopping Digital System Second Generation) features with superior protection against interference, low power consumption, and high sensitivity receiver.
Chinese/English language and supports both helicopters, multi-copters and fixed wing aircrafts.
Independent identification ID enhance the system stability of proactive anti-interference.
Radio stick features with dual bearing structure providing much precise and agility control.
Supports MODE1 ~ MODE4
High efficiency Omni-directional gain antenna maintaining a strong reliable connection.
User-friendly monitor interface features with much direct and convenient operation.
Feature with update function.?A10 Transmitter x 1
A6B Receiver x 1
1.5V carbon-zinc battery(AA size) x 4
