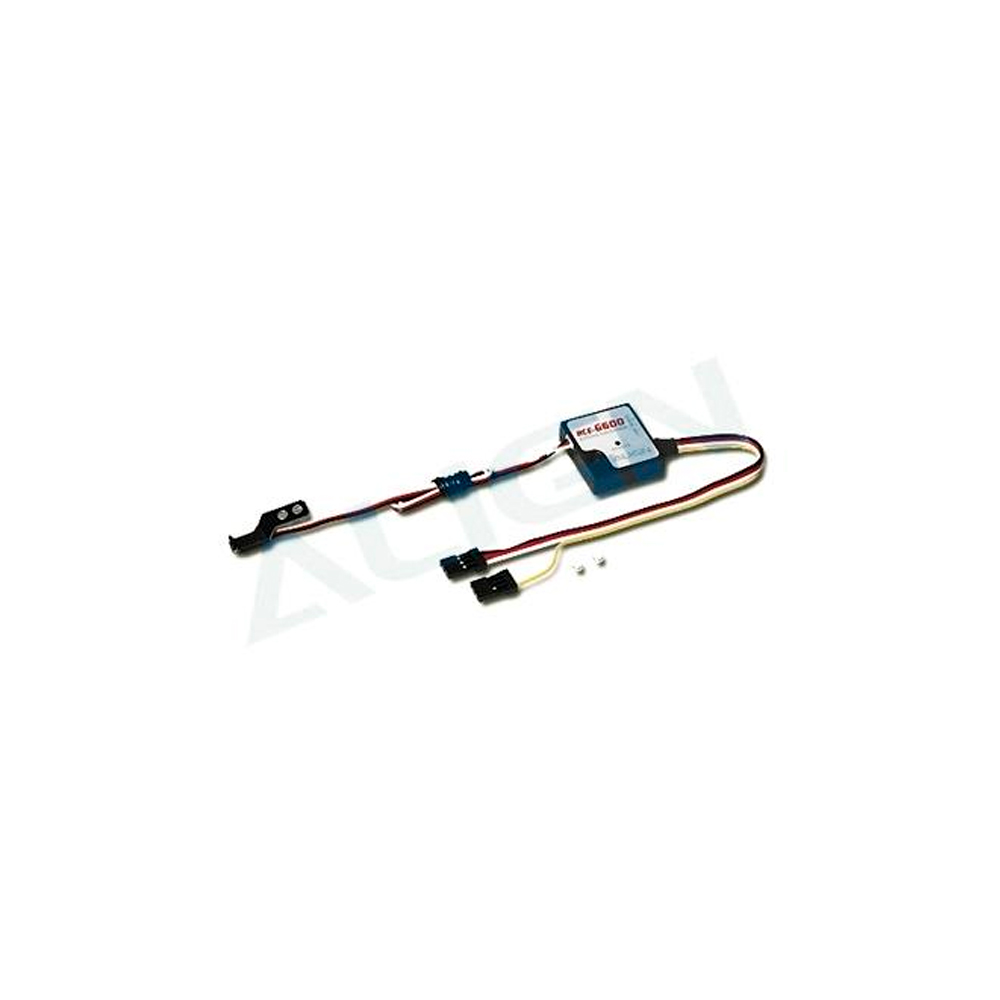

GOVERNOR ALIGN RCE-G600 HE50H09T

Instructions:
• Compact design, easy use, simple setting with great speed control performance.
• Speed resolution: 0.1RPM
• Speed stability accuracy: within 1%(Steady State)
• Not apply to S9251¡BS9256 and other 760£gs servos.

Specification:
• Operating voltage:DC4.5V-6V
• Consumption current:<20mA@4.8V
• Direct detection of engine rotation speed.
• Speed control range:10500~21000RPM
• Servo RWM output pulse width: 1~2ms¡Anot apply to S9251¡BS9256 and other 760£gs servos.
• Operating temperature range:-20¢XC~85¢XC
• Operating moisture range:0%~95%
• Case size(body):28.5x26.2x9mm
• Signal wire length:160mm
• Sensor wire length:250mm
• Weight:10g(including wires)
