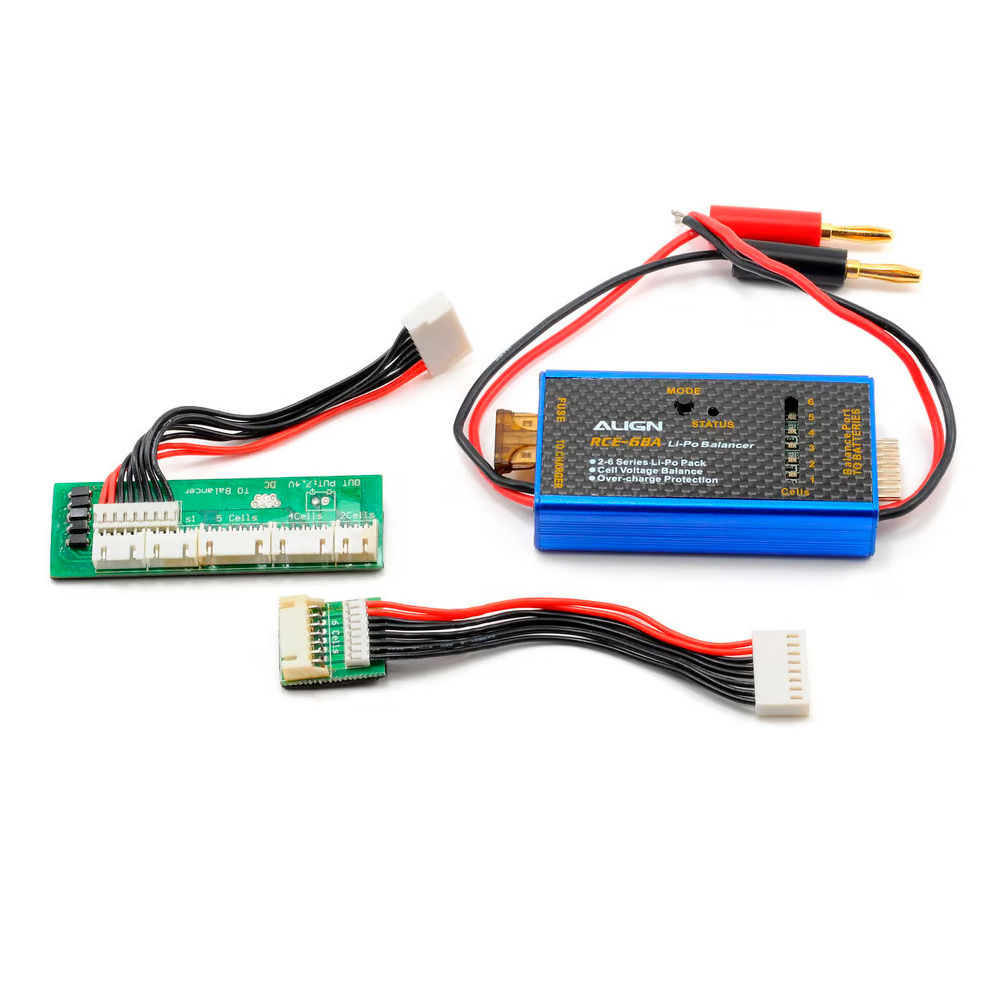

CARREG.BALANCER ALIGN LIPO KX850163T

Instructions:

1.Separate balancing and charging ports eliminating charging amperage limit due to balancing wires’ gauge.
2.Dual mode balancer: Can be used as stand alone balancer, or concurrently with a separate charger.
3. Automatically balance 2~6 cells li-poly packs.
4.Balancing voltage resolution accurate to ±0.005V.
5.Individual cells’ balancing status displayed through LEDs.
6.Overcharging prevention circuitry with cutoff set at 4.26V/cell for additional safety, minimizing potential damages to the cells.
7.Low voltage cutoff set at 3.3V/cell to prevent over discharging of cells.

NOTE:
Do not leave the charger is operating unattended as it may cause a fire.

Specification:

Lithium polymer cell count: 2~6 cells in series configuration
Balancing activation voltage:
                     - Automatic:>0.03V imbalance
                     - Manual: >0.01V imbalance
Discharge current during balancing: 350mA
Imbalance control voltage: +/-0.005V
Maximum cell voltage cut off: 4.26V
Low voltage cut off: 3.3V
Balancing voltage resolution: +/-0.005V
Size:83x45x19mm
Weight:120g

Precaution:

Note!
If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.
