GYRO G190 MICRO PIEZO GYRO FUTM0830

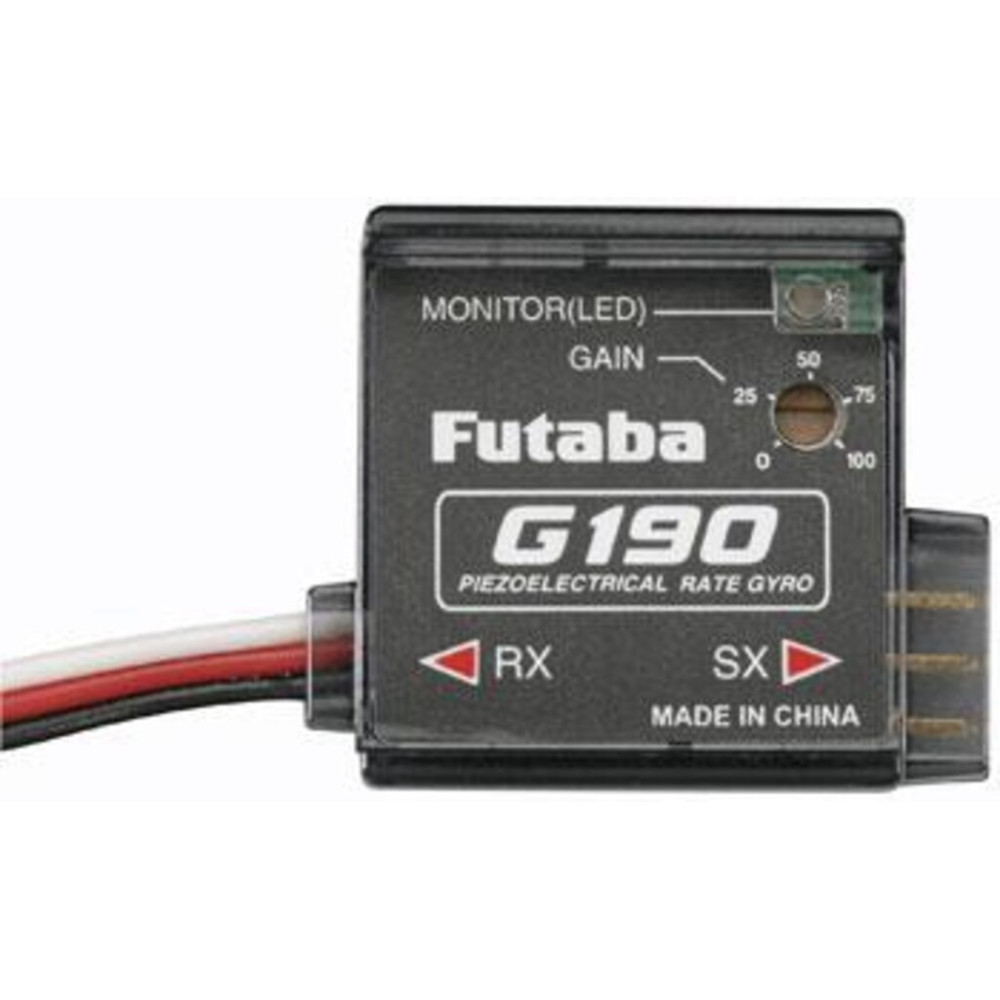

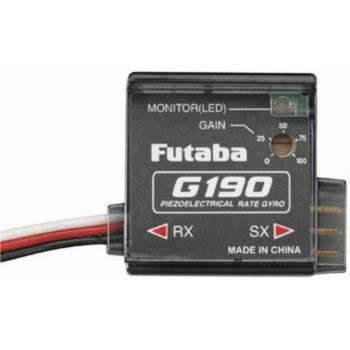

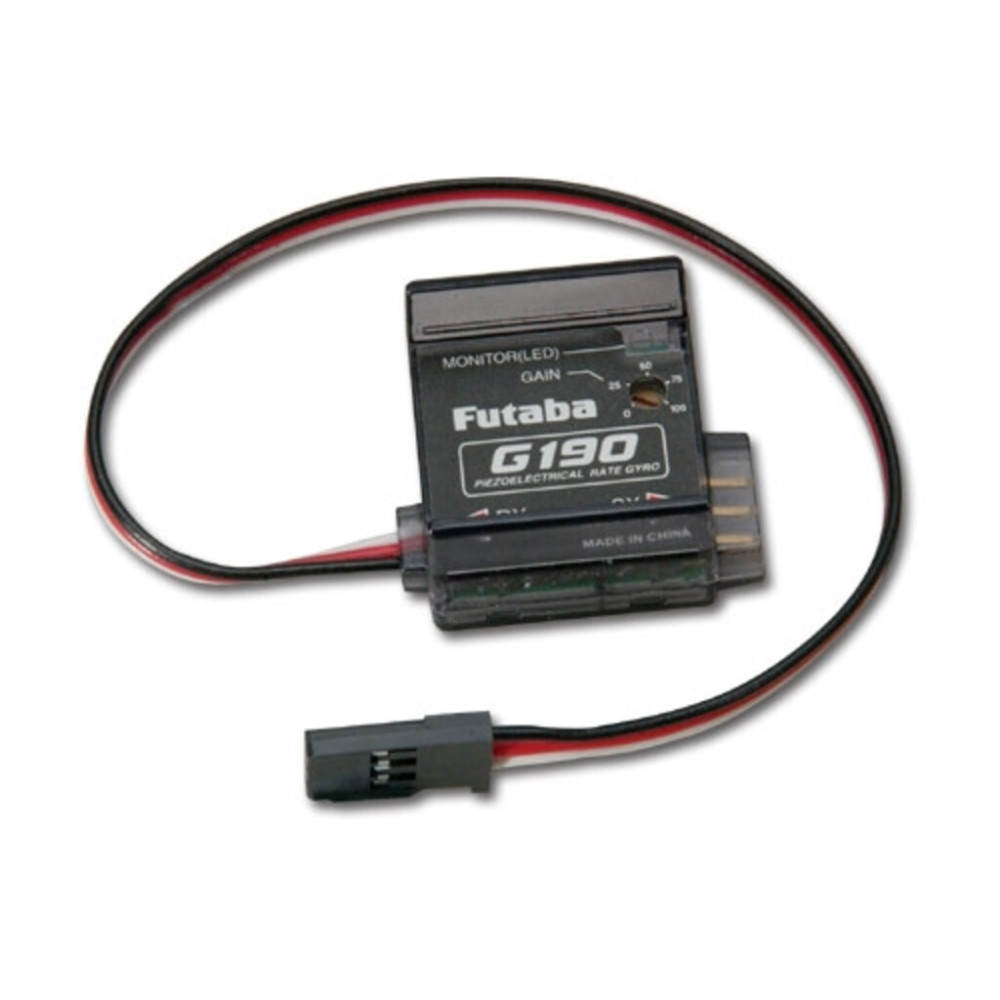

This is the Futaba G190 Micro Piezo Gyro.

FEATURES:

Integrated sensor type rate gyro is designed for small electric powered helicopters Any side of the gyro case can be used to mount unit to heli-great for limited space applications High density assembly technology results in small size and light weight

INCLUDES:

One Futaba G190 Micro Piezo Gyro One mini plastic screwdriver Three pieces of double sided tape

REQUIRES:

Micro servo like the Futaba S3108

SPECS:

Length: .87" (22.2mm)

Width: .90" (22.8mm)

Height: .35" (8.9mm)

Weight: .24oz (6.7g)

including connector

Operating Voltage: 4.8 to 6V DC

Current Drain: 15mA @ 4.8V

Operating Temperature Range: -5°to +45°C

Functions: Sensitivity trimmer and LED monitor Gyro Sensor: Piezoelectric

Functions: Sensitivity trimmer and LED monitor Voltage- use only with a 4.8V battery. (if you use it with a higher voltage battery it needs to be regulated to 6V)
