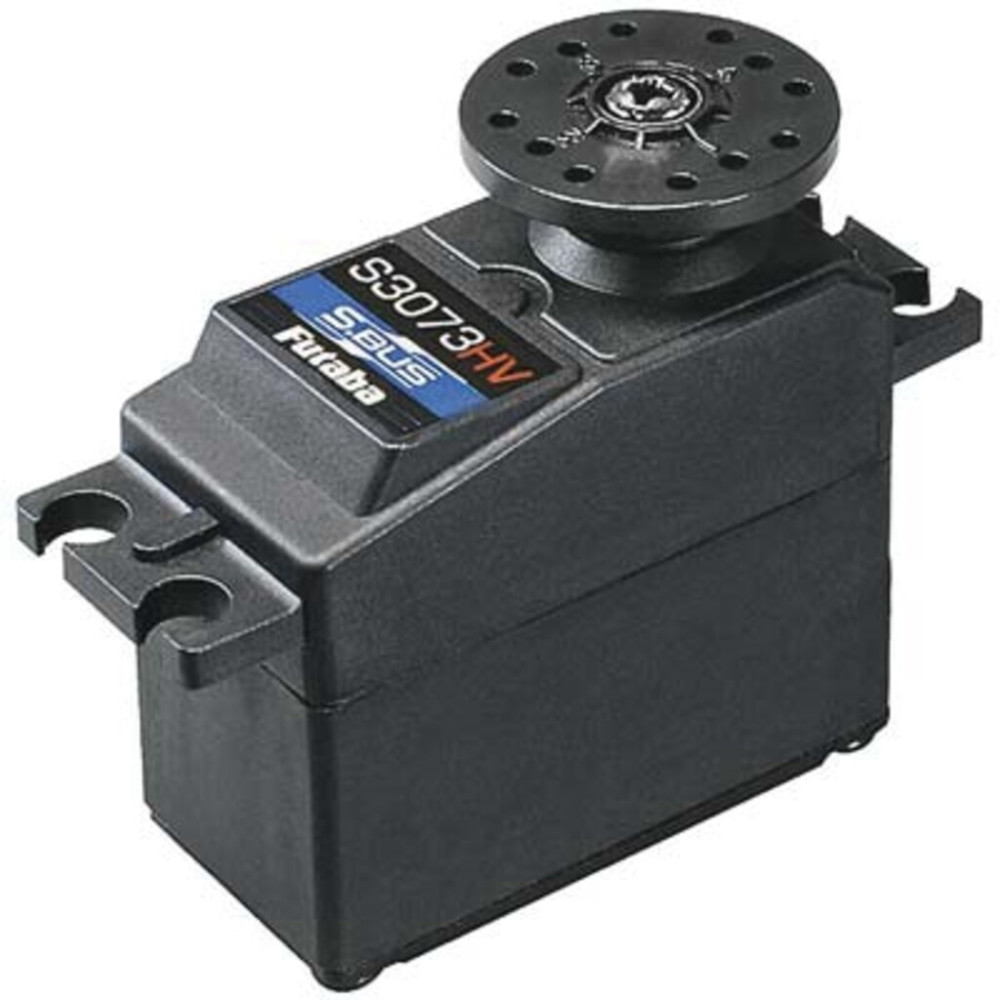

S3073HV FUTABA HIGH TORQUE HV S3073HV-08

3-pole motor
Programmable and compatible with S.Bus and S.Bus2 systems
High voltage handles extra speed and power provided by 2S LiPo
batteries
One year limited warranty through the Futaba USA Service Center
beginning at date of purchase

S3073SV HV SB2 Standard Servo with 1.4" (35.5mm) Round Horn, 1.5"
(39mm) four point Horn, 1.2" (31.5mm) six point Horn, four each;
Screws, Grommets, and Eyelets
Instruction Sheet

6.0V 6.6V 7.4V
Torque: 43oz-in 3.1kg-cm 49oz-in 3.5kg-cm 54oz-in 3.9kg-cm
Speed: 0.20 sec/60° 0.18 sec/60° 0.16 sec/60°
Dimensions: 1-5/8 x 13/16 x 1-7/16" (41 x 20 x 36mm)
Weight: 1.4oz (41g)
Rated Voltage: DC 6.0 - 7.4V
Operating Voltage: DC 4.0 - 8.4V

SBus Programmable Defaults
Dead Band Degree: 0.45
Damper Factor: 144
Stretcher Gain: 1
Boost: 25
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0
