AVIAO FW FLIGHTLINE F7F-3 TIGERCAT 1600MM (63") PNP FLW302P

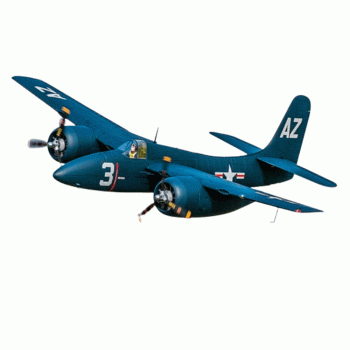

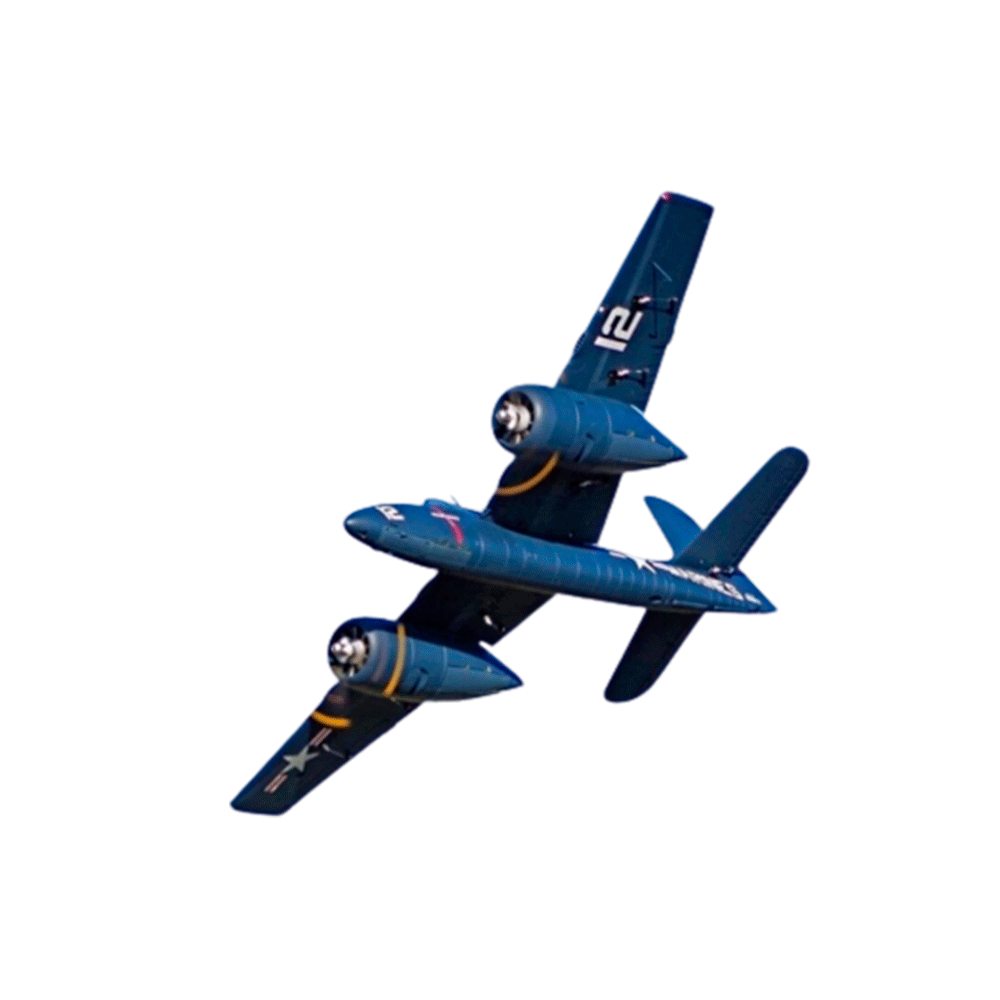

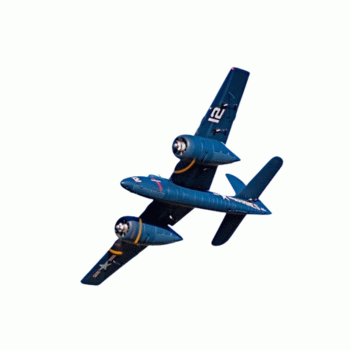

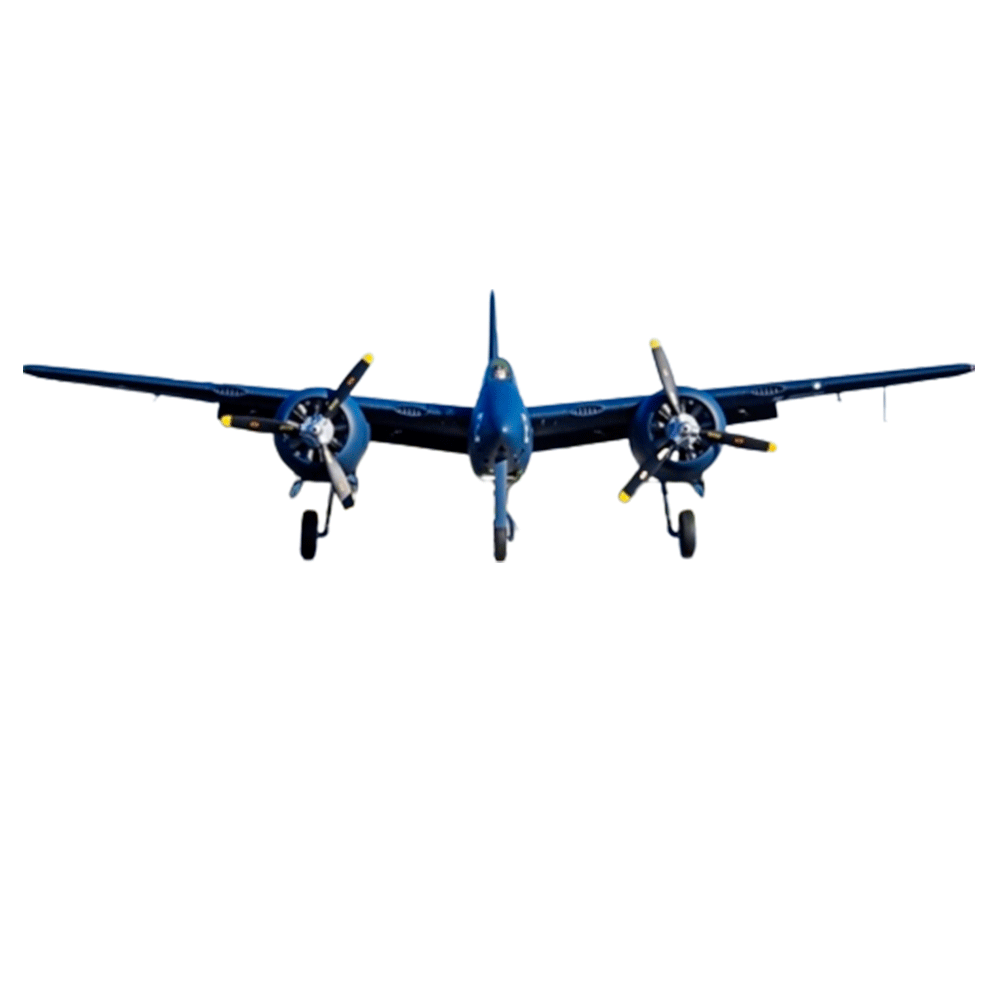

FlightLine F7F-3 Tigercat 1600mm (63") Wingspan

• The Grumman F7F Tigercat is a twin piston engine aircraft developed during World War II. Originally envisioned as a carrier-based naval fighter, the Tigercat underwent several iterations and was later optimized for a variety of roles. Although World War II ended before it became fully combat operational, many variants of the Tigercat went on to serve in the Korean War in capacities including as a night fighter, ground attack platform, and a dependable reconnaissance platform.

• Honoring this famed aircraft, Motion RC is proud to introduce the FlightLine F7F-3 Tigercat, which is the world’s first mass production foam electric RC Tigercat. Officially licensed by Northrop Grumman, the FlightLine F7F-3 Tigercat’s 1600mm wingspan and 1/10 sport scale matches our popular P-38 Lightning, and the two look excellent in flight formation together! In the air, the FlightLine F7F-3 Tigercat exhibits fantastic stability, is very easy to control at a wide speed range, and has a predictable stall with easy recovery. We designed this aircraft to be a superb balance between top speed, vertical performance, flight duration, convenient transport, sport scale realism, and overall scale presentation.

Design - Meticulously designed to incorporate EPO foam, wood, plastic, and carbon reinforcements, our design is easy to assemble and maintain, and delivers the strength and power to satisfy any RC airplane pilot. The main wing halves, horizontal stabilizer, and two engine nacelles each install with four screws. A new pliable ribbon wiring harness simplifies each wing connection to one instead of five. The antenna and gun barrels are also designed to easily slide out to prevent damage during transport. A plastic nose cone, cowls, and doors are designed for longevity. The generously sized battery bay can accommodate your batteries, receiver, and optional gyro in a cleanly organized layout. To ensure a secure fit, the cockpit of this FlightLine F7F-3 Tigercat is held on by both magnets and a sliding latch. The FlightLine F7F-3 Tigercat arrives with dependable electronics pre-installed. The aircraft uses our DayBright 3W LEDs for visibility. Static wingtip lights remain on, and the single landing light turns on only when the landing gear is down, for ultimate realism like the full scale aircraft. Four sets of adhesive vinyl decals are also included in the box. Choose from these decals or recreate your own historic livery as you wish!

Performance - The F7F-3’s generous main wing area allows a short takeoff distance of 15-20 meters, and its 70mm diameter nose wheel and 80mm diameter main wheels and thick steel struts are excellent for operating on typical grass airfields. An optional aluminum compression strut upgrade is available for rougher grass conditions. The Tigercat’s tricycle landing gear reduces the risk of tipping forward after landing and makes taxing on the ground very stable. Four flaps slow the aircraft for controlled power on landings at low speed. For efficient power, the aircraft features a pair of 3748-600kv brushless motors, 3-blade 12x7 propellers (Standard and Reverse rotation), and two 60A ESCs. The model’s top speed is 125kph/78mph, and comfortable flight duration ranges between 6 and 7 minutes on a pair of 4s 3000mAh lipo batteries. For even faster speeds approaching 155kph/97mph and extended vertical performance, an optional Sport Power System utilizing 3648-880kv motors and 2-Blade 12x8 propellers is available for separate purchase. Click the Upgrades tab above for more details.

FEATURES:

Scale profile, accurate wing dihedral, and precisely modeled overall aircraft proportions

Removable wings for easy transport

Scale three blade propeller achieves 78 mph and scale plus thrust

Four different decal sets included inside the box

Day-bright LEDs and accurately actuating landing gear light

Large cabin space for easy placement of electronics

Durable electric retractable landing gear with metal trunnions and 4mm steel wire struts

Tall foam rubber wheels for optimal handling on paved surfaces and short grass fields

INCLUDES:

FlightLine F7F Tigercat 1600mm (63") Wingspan - PNP

Motor, ESC, servos, lights and retracts pre-installed

REQUIRES:

6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection

6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection

TWO 4 Cell 14.8V 3000mAh LiPo batteries with XT60 Connectors – We recommend 2 of the Admiral 4 Cell 3000mAh LiPos

4 Cell Compatible Battery Charger - Select a minimum 4 cell (4S) charger from our Charger Collection

SPECIFICATIONS:

Wingspan: 1600mm / 63in

Length: 1400mm / 55in

Weight (w/o battery): 3200g / 113oz

CG (Center of Gravity): 65-73mm from the leading edge of the wing at the root

Power System:

3748-600Kv Brushless Outrunner Motor (Stock scale power system)

3648-880Kv Brushless Outrunner Motor (Optional sport power system)

Electronic Speed Control: Two 60A Brushless ESCs with XT60 connectors

Propeller / EDF: 12x7 3 Blade Propeller / 12x8 2 Blade Propeller High Performance Version (optional)

Servos:

9g Hybrid Gear Standard with 550mm lead: Left Aileron, Right Aileron

9g Hybrid Gear Standard with 400mm lead: Right Outboard Flap

9g Hybrid Gear Reverse with 400mm lead: Left Outboard Flap

9g Hybrid Gear Reverse with 100mm lead: Left Inboard Flap

9g Hybrid Gear Standard with 100mm lead: Right Inboard Flap

9g Hybrid Gear Reverse with 750mm lead: Rudder

17g Metal Gear Standard with 550mm lead: Nose Steering

17g Metal Gear Standard with 800mm lead: Elevator

Landing Gear: Electric retracts with metal trunions

Required Battery: Two 4 Cell 14.8v 3000mAh batteries with XT60 connectors

Required Radio: 6 Channel 2.4GHz

Ailerons: Yes

Elevator: Yes

Rudder: Yes

Flaps: Yes

Lights: Yes

Hinge Type: Nylon hinges on all surfaces

Material: EPO Foam

Skill Level: Intermediate

Build Time: 2-3 Hours

Recommended Environment: Outdoor, minimum 200 foot runway, pavement recommended, less than 2" tall smooth grass
