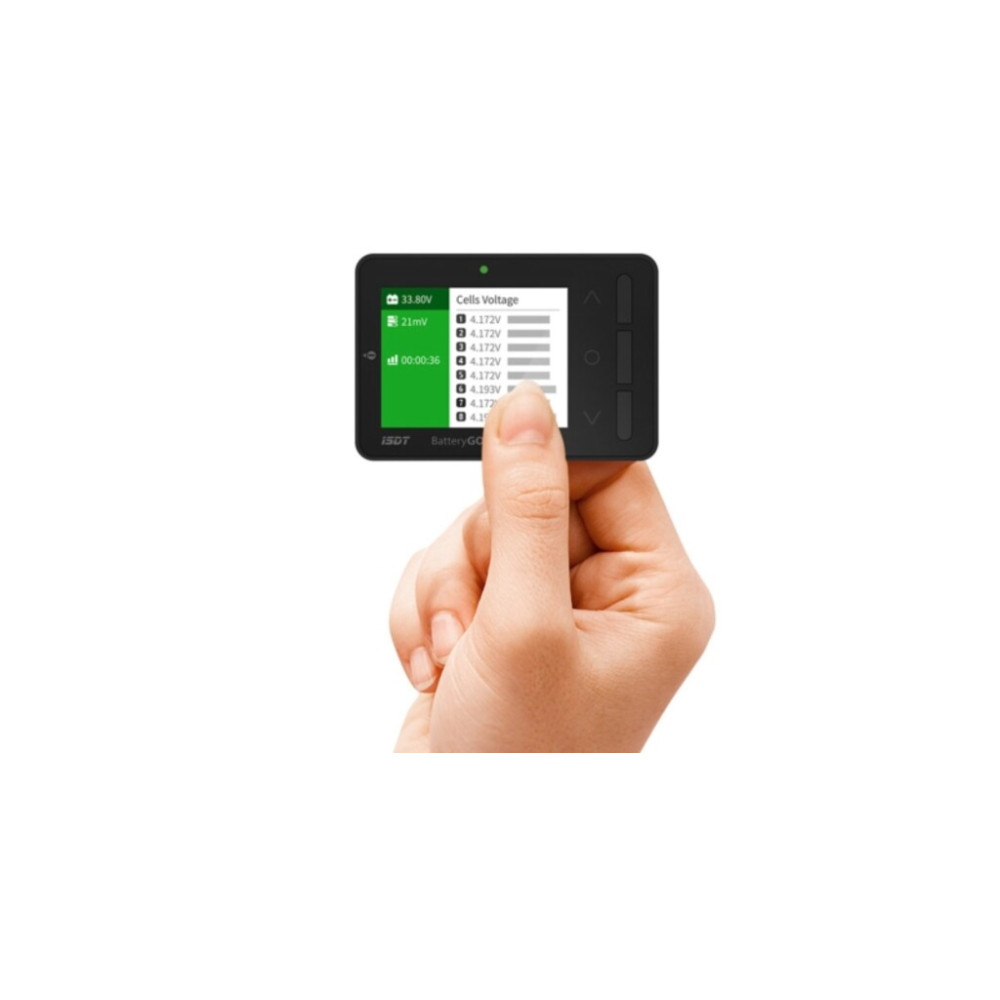

ISDT BG-8S BATTERY TESTER BW4814
- Código: 286008
- Marca: GABA HOBBY
- Estoque: Disponível
-
$59,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Specifications
Function button
Menu button Short press to enter setting menu. Long Press to enter smart battery menu
Up/Down Button Go up down, choose different setting options.
Guide For the Connection of Balanced Port
This product is suitable for the lithium battery which has the XH 2.54 balance port,
connect the balance port align from BAT- as showed in the figure. When connecting 1S battery, input Voltage from XT60i must be more than 5V.
Specifications
Working voltage : 5.0V-36VInput voltage 1s : 0.8V-15V
Input voltage 2-8S : 0.8V-4.8V
Battery cells : 1-8S
Voltage measurement accuracy : ±0.005V @ 4.2V
Balancing cells accuracy : < 0.005V
Support USB charging : QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
Support smart battery : Charging and discharging setting, read battery info and usage history.
Supported Batt. Type : LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/Cd(1-10S)
Display : 2.4?320×240 260,000 color IPS LCD
Dimension : 80 X 55 X 19 mm
Weight : 59g
Operating Temperature : 0-40?
Working Humidity : 10%-90%RH (noncondensing)
Storage Temperature : -20-60?
Storage Humidity : 5%-90%RH (noncondensing)
