RC4WD GELANDE II 1/10 D110 BOD Z-RTR0032

Key Features

Needed to Complete

• Nothing, this comes Ready to Run

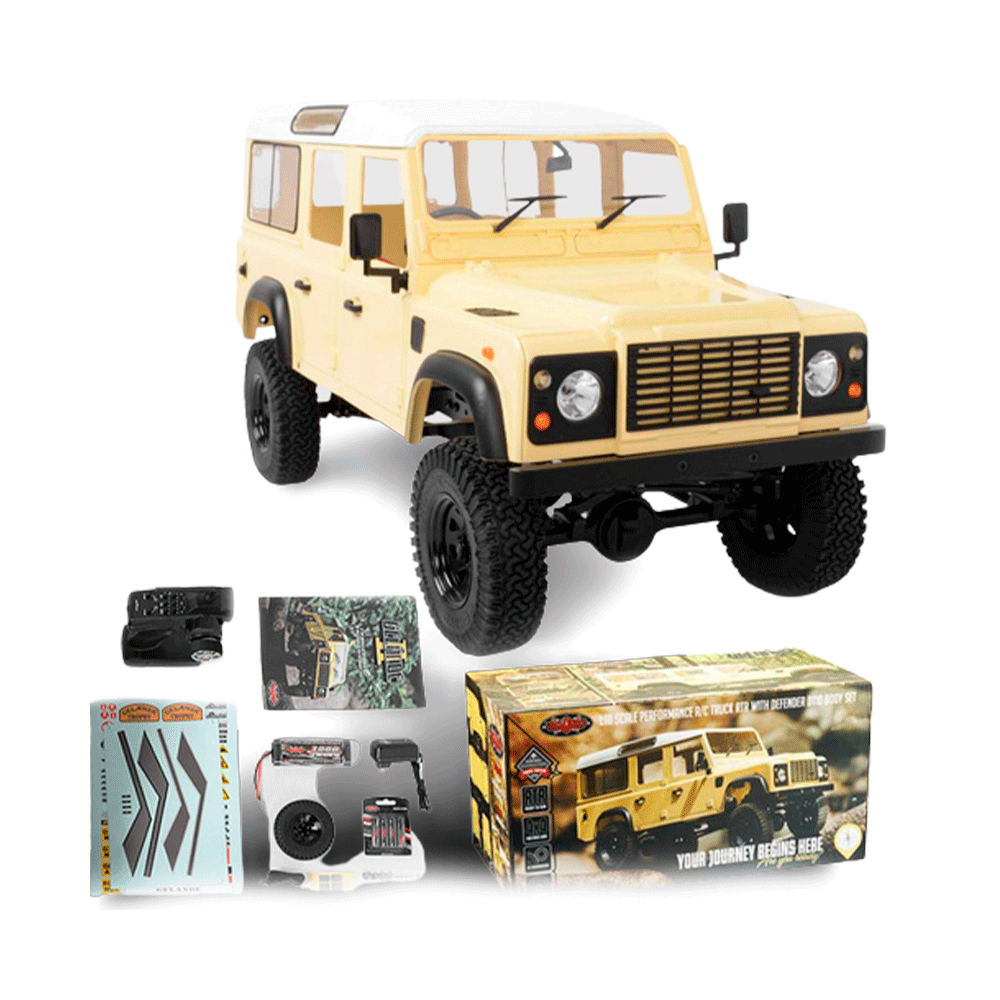

What's in the box?

• (1) Gelande II "LWB" RTR with Defender D110 Body Set
• (1) 6-Cell 3000mAh NiMH Battery Pack
• (1) NiMH Peak Battery Charger
• (1) User Manual

Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!

Are you ready for your off-road experience?

HAMMER TRANSFER CASE

• Ratio: 1.47: 1
• Gears: Wide .8 Mod Hardened Steel Gears

R3 SINGLE SPEED TRANSMISSION

• Ratios: Pinion/spur 14/64 = 4.57: 1
• Internal Ratio: 1.78:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

CAST YOTA II AXLES

• Ratio: 15/40 = 2.67: 1
• Width at Hex: 180.5mm

G2 SUSPENSION

• Double Triangulated 4 Link Rear Suspension

• 3 Link Suspension with Panhard Bar

SHOCK ABSORBERS

• Dual Spring 80mm Shocks: Can be Oil Filled

WHEELS

• Name: 1.9" 5 Lug Wagon Wheels
• Hub: Pin Type
• Width: 25mm
• Back Spacing: 11mm

BUMPERS

• Machined Billet Aluminum, Lightweight

G2 TRUCK DIMENSIONS

• Wheelbase: 13 in (331mm)
• Width: 8.7 in (221mm)
• Height: 9.89 in (246mm)
• Ground clearance: 1.8 in (48mm)
• Final Drive Ratio: 31.9:1
• Weight: 6.99Lbs (3.17Kg)

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota Axles feature innovative round knuckles, lower mounting points and compact offset pumpkins.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9" Internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every TF2 LWB RTR needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

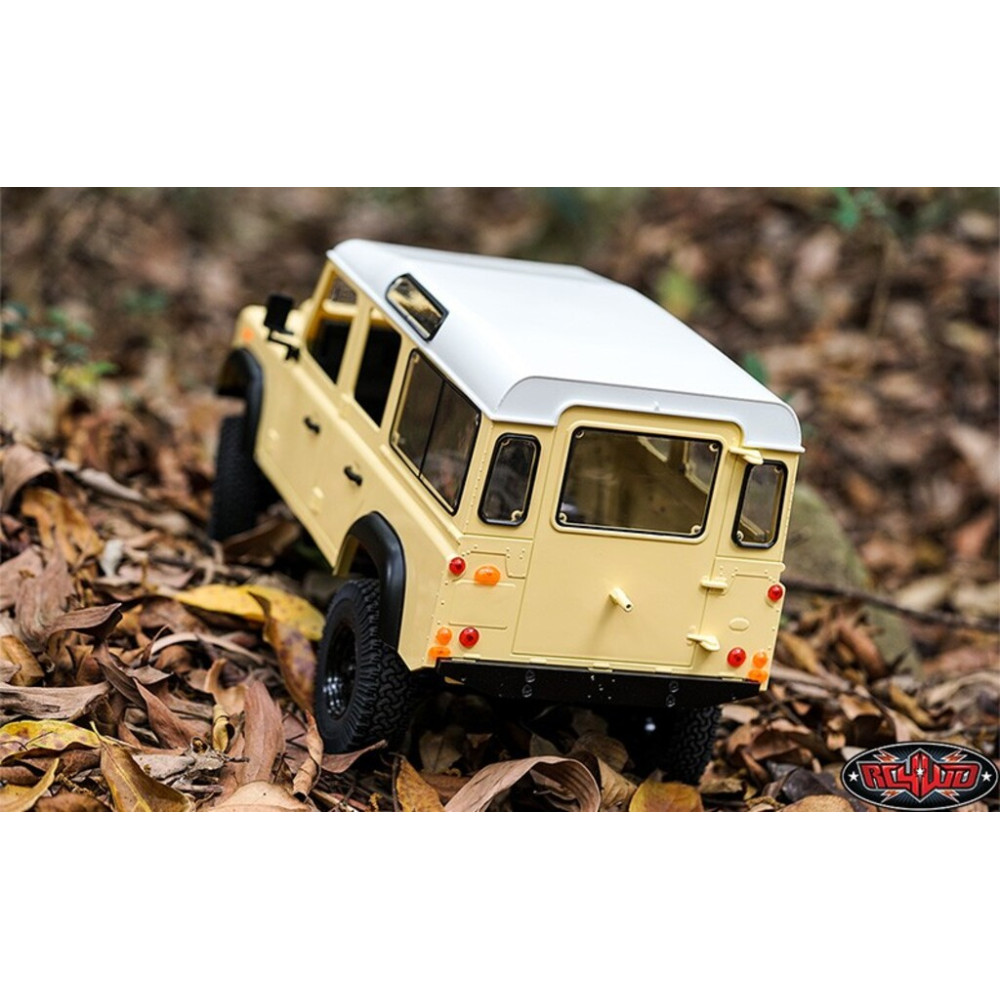

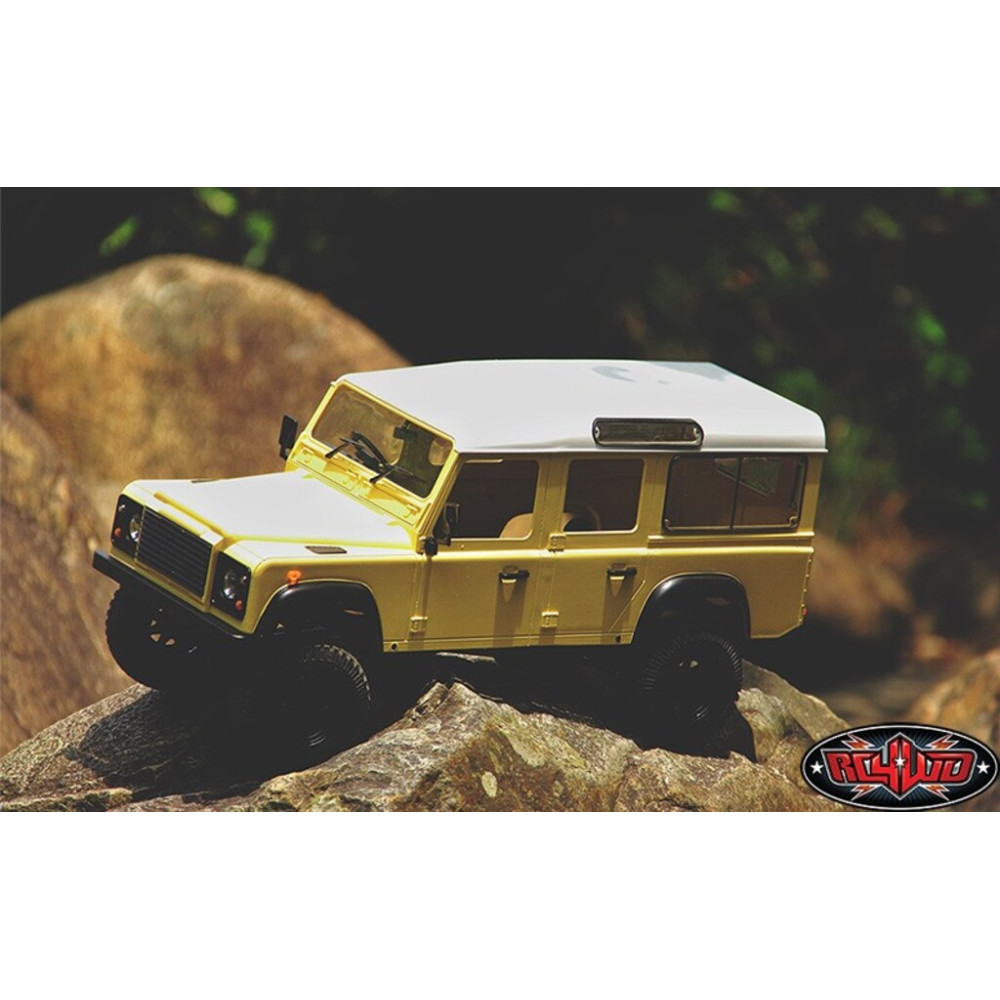

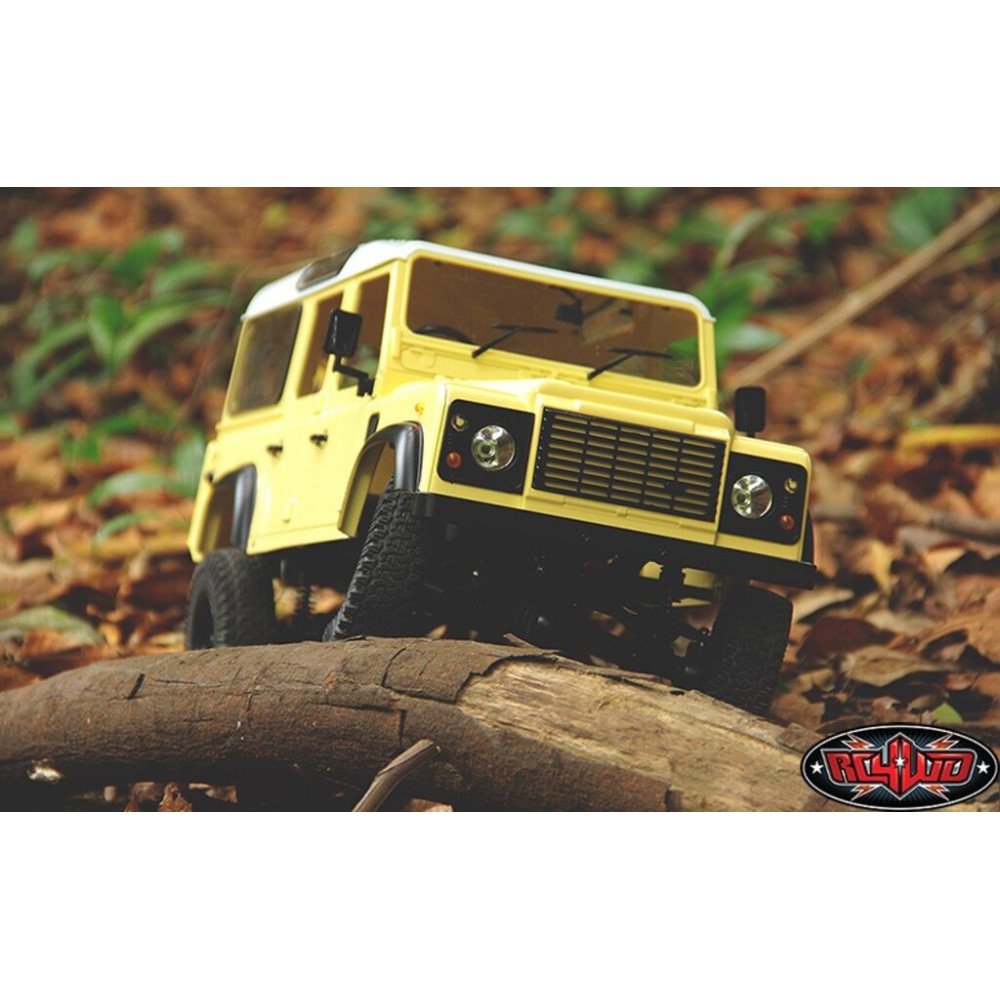

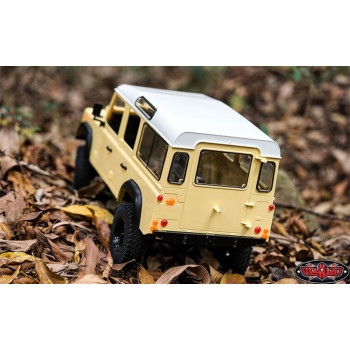

The G2 features the Defender Scale Body Set. The Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

The unmistakable lines of a classic. The Defender Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The Defender Body Set comes in durable hard plastic and painted in a classic Sandglow Yellow with a clean white roof. All the trim parts are separate pieces to get a great look, with minimal fuss.
