RC4WD GELANDE II 1/10 CRUISER Z-RTR0029

The only way to cruise!

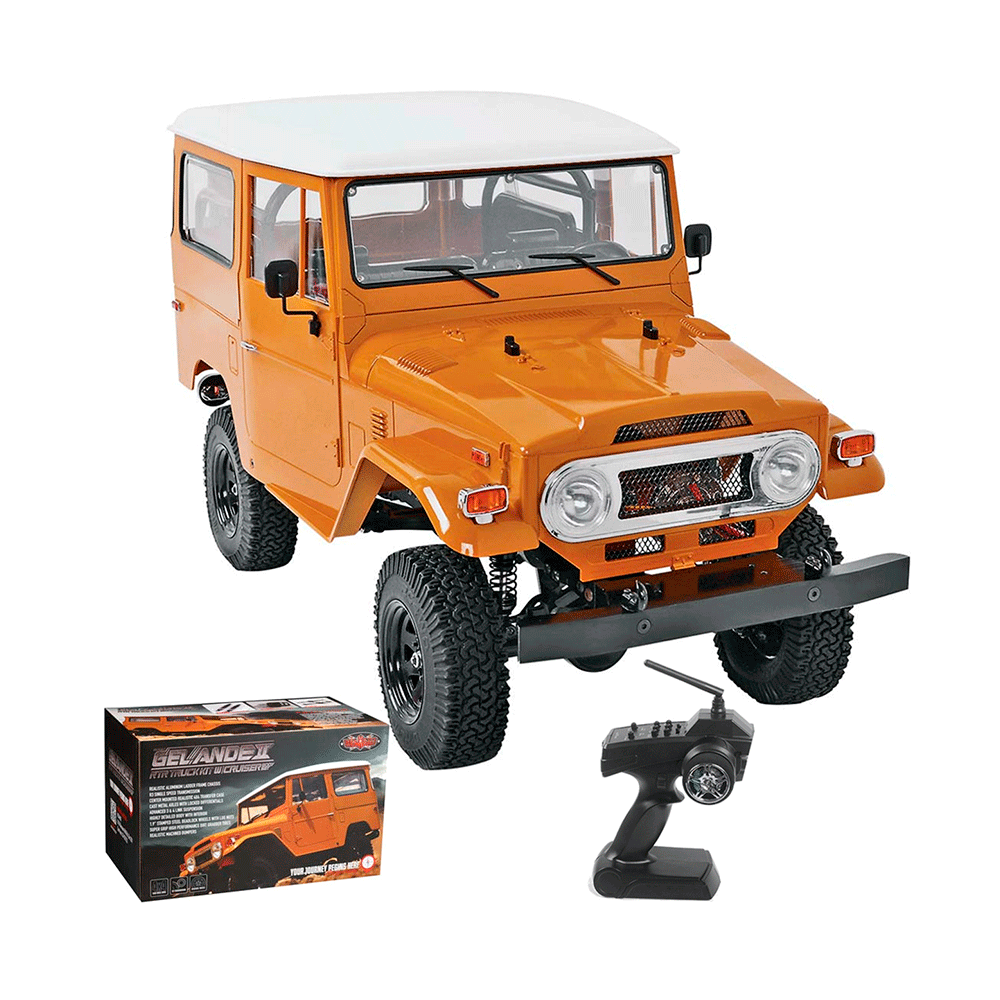

Cruise and crawl with the best of ‘em with the 1/10, electric Gelande II Cruiser 4WD RTR! In addition to a machined billet aluminum ladder frame chassis, it offers a 45T Crawler motor, an Outcry ESC with drag brake and 6V/5A Turbo BEC, an XR3 radio system, a painted Cruiser scale body set, dual spring oil shocks, Dirt Grabber tires and stamped steel internal beadlocks.
Custom-designed for true-to-scale looks.

• Realistic machined billet aluminum ladder frame chassis.
• 45T Crawler motor with sealed endbell.
• Outcry ESC with built-in drag brake and 6V/5A Turbo BEC.
• XR3 3-channel radio system.
• Painted Cruiser scale body set with a fully detailed interior, seats, gear shift, handbrake, dashboard, mirrors, door handles, vents and a grille. All trim parts are separate pieces.
• R3 single-speed transmission.
• Center-mounted realistic 4x4 transfer case.
• Cast metal Yota II axles with locked differentials.
• Machined billet aluminum bumpers.
• Hammer transfer case with heavy-duty 32P widened gears.
• 3-link front and 4-link rear suspension.
• 1.9" stamped steel beadlocks with lug nuts.
• Super-grip Dirt Grabber tires with X3 compound.
• Chassis-mounted Twister metal gear digital steering servo delivers 153 oz. torque @ 6V.
• Plastic fuel cell receiver box.
• Dual spring oil shocks.
• Machined billet aluminum ladder frame chassis.
• Dual spring oil shocks.
• Cruiser scale body set.
• Dirt Grabber tires and black stamped steel internal beadlock wheels.

• Chassis: Machined billet aluminum ladder frame, steering servo mount on chassis
• Drive: Four wheel, plastic shaft for wide driveline angles and durability, steel universals, center mounted 4x4 transfer case
• Axles: Cast Yota II Ratio: 15/40 = 2.67:1, width at hex 7.1" (180.5mm), 8° round knuckles, removable diff covers, lower mounting points
• Transmision: R3 Single speed, wide 32P steel gears, with slipper clutch, 14/64 = 4.57:1 internal ratio 1.78:1
• Transfer Case: Wide 32P hardened steel gears, eight ball bearings, cast metal casing, ratio: 1.47:1
• Motor: 45 turn crawler
• Radio: XR-3 3 channel 2.4GHz, 3rd channel can be used to control an optional winch (not included)
• Steering Servo: Twister metal gear digital with 153oz/in of torque at 6V, full metal gear drivetrain
• Electronic Speed Control: Outcry brushed with built-in drag brake and separate 6V 5amp turbo BEC, Standard battery connector
• Spur Gear: Delrin construction, 64 teeth
• Axles: Cast metal with locked differentials
• Motor Mount: Billet aluminum
• Suspension: G2, double triangulated 4 Link rear suspension, 3 link front suspension with panhard bar
• Shocks: Billet aluminum, dual spring 80mm, can be oil-filled
• Body: Molded hard plastic, painted mustard yellow, over 70 separate parts including interior, seats, gearshift, handbrake, dashboard, metal grille insert with lenses for all signal lights, lights can be illuminated with optional LED light kit, separate purchase
• Receiver Box: Plastic fuel cell type
• Wheels: Black finish 1.9" five lug wagon 0.98" (25mm) wide, 0.43" (11mm) back spacing
• Tires: Super grip Dirt Grabber X3 compound with foam inserts
• Bumpers: Front and rear, constructed of machined billet aluminum
• Warranty: RC4WD warrants the product to be free from defects when new. Limited warranty does not cover damages due to normal wear and tear, user error of assembly or installation, user modifications, user's failure to perform routine maintenenace and addition of aftermarket parts or optional parts.

• RTR Gelande II Truck with Cruiser Body, Body Trim, Interior, 3-ch 2.4GHz Radio, Outcry ESC, 45T Motor, Tires, Wheels, Decals,
• Instruction Manual

• AA Batteries: Eight for transmitter
• Battery: 6-cell NiMH or 2S LiPo
• Battery Charger: To match selected battery
• Building and track equipment

Vehicle:

• Wheelbase: 10.8" (275mm)
• Length: 18.3" (466mm)
• Width: 8.5" (216mm)
• Height: 10.6" (270mm)
• Ground Clearance: 2.3" (58mm)
• Final Drive Ratio: 31.9:1
• Weight: 8.02lbs / 3.64kg

Body:

• Length: 16.7" (425mm)
• Width: 8.5" (218mm)
• Height: 7.2" (183mm)
• Weight: 42.4oz (1077g)
