  • SUPER STR.SERVO ARM JR DUB671

SUPER STR.SERVO ARM JR DUB671

  • Código: 28325
  • Marca: DUBRO
  • Estoque: Indisponível
  • $16,00

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.

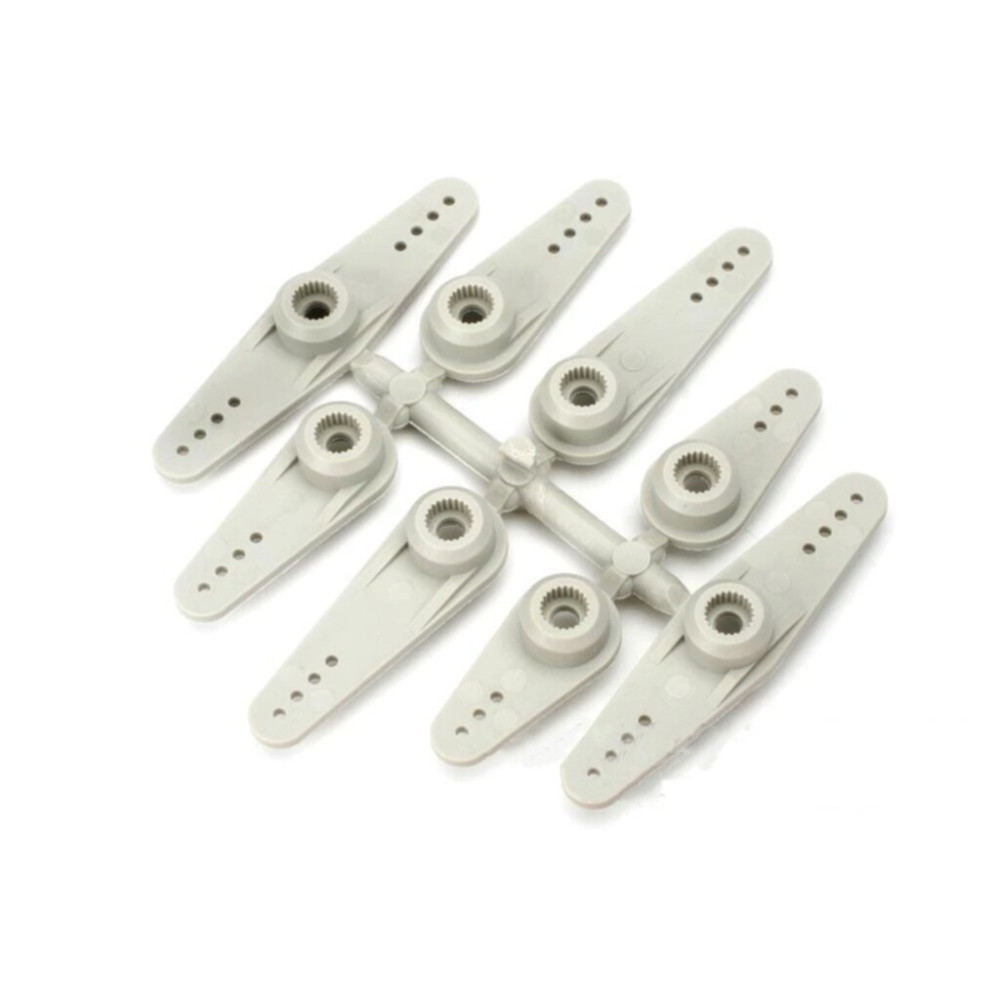

For those requiring a really heavy duty servo arm, the Dubro "Super Strength" arms will fit the bill.



Features:


  • Fits JR servos with splined output shafts. Grey composite plastic servo arms.



Includes:


  • 2 each of short, medium and long servo arms the extend in one direction from the servo center.
  • Also has two long arms that extend in two opposing directions from the servo center.



Specs:


  • Short : Mounting holes at: 12, 15 and 18mm. Total length-23mm.
  • Medium: Mounting holes at: 15, 19, 22 and 25mm. Total length-30mm.
  • Long : Mounting holes at: 23, 25, 28 and 32mm. Total length-36mm.
  • Dual : Mounting holes at: 15, 19, 23 and 26mm. Total length-28mm.



  • All measurements are from the center of the arm.
  • The dual is only from one side to center.
  • Actual overall length- 56mm. JLP 8/894 updt jxs 6/16/03
