SPINNER 2 1/2" ALUMINIO DAVE BRONW S225

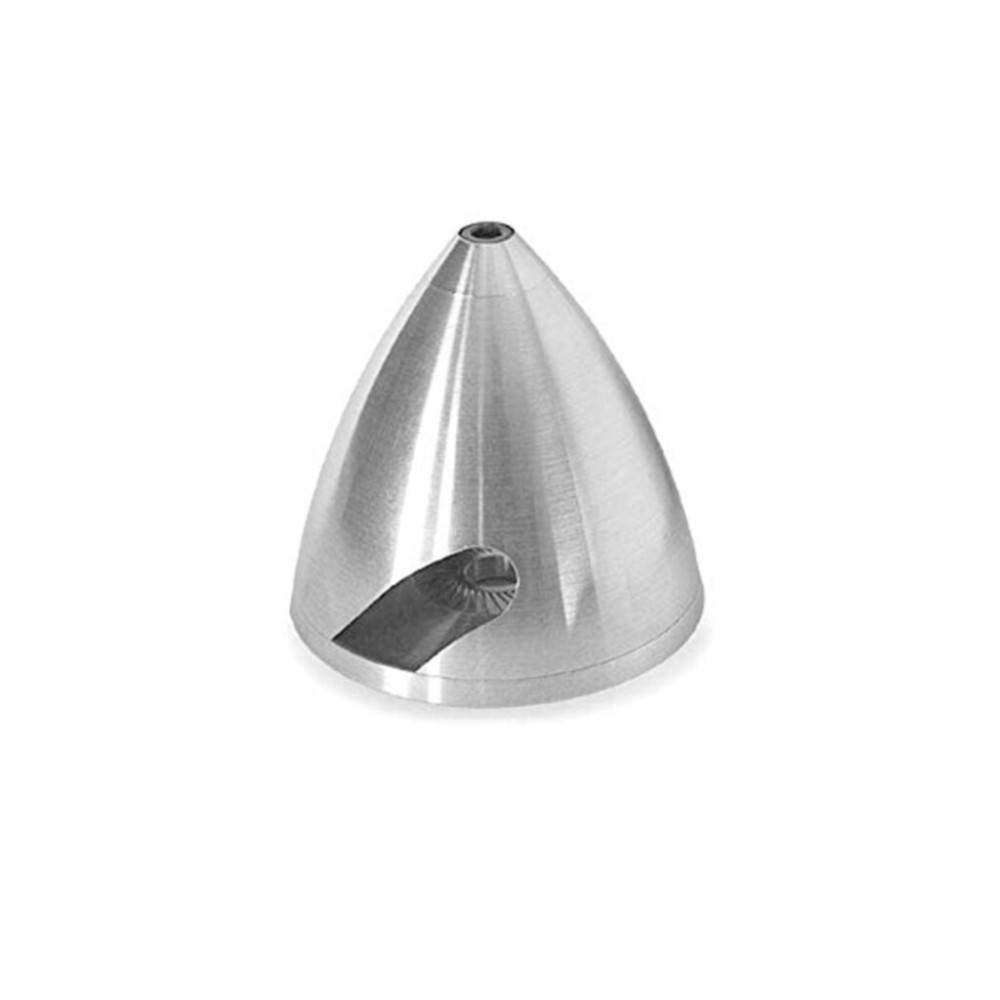

This is a Vortech 2-1/2" Aluminum Two-Blade Spinner from Dave Brown.

FEATURES:

Light-Weight Aluminum Construction

Polished, Brushed Aluminum Color

Includes Four Plastic Backplate Bushings, So The Backplate Will Fit

Securely Around Any Ordinary Crankshaft

Designed for Two-Bladed Prop

INCLUDES:

One Two-Blade Aluminum Spinner (For Sizes See SPECS)

One Aluminum Backplate

One 10-32 x 3/4" Cap Head Mounting Bolt

Four Plastic Backplate Adapter Bushings

One Instruction/Information Header Card

REQUIRES:

Vortech Adapter Nut

4mm Allen Wrench (For The Cap Screw)

SPECS:

Spinner Backplate Diameter: 2-1/2" (64mm)

Spinner Backplate Mounting Ring Thickness: 3/16" (4mm)

Spinner Backplate Hole Diameter: 3/8" (9.5mm)

Length From Back Of Backplate To Front Of Cone: 2-7/16" (61mm)

Weight: 2.0 oz

COMMENTS:

To Attach the Spinner to the Engine, the Modeler Must Use One of the Following Adapter Nut Sets.

Note: Use A Short Adapter With Spinners 2-1/2" And Under.
