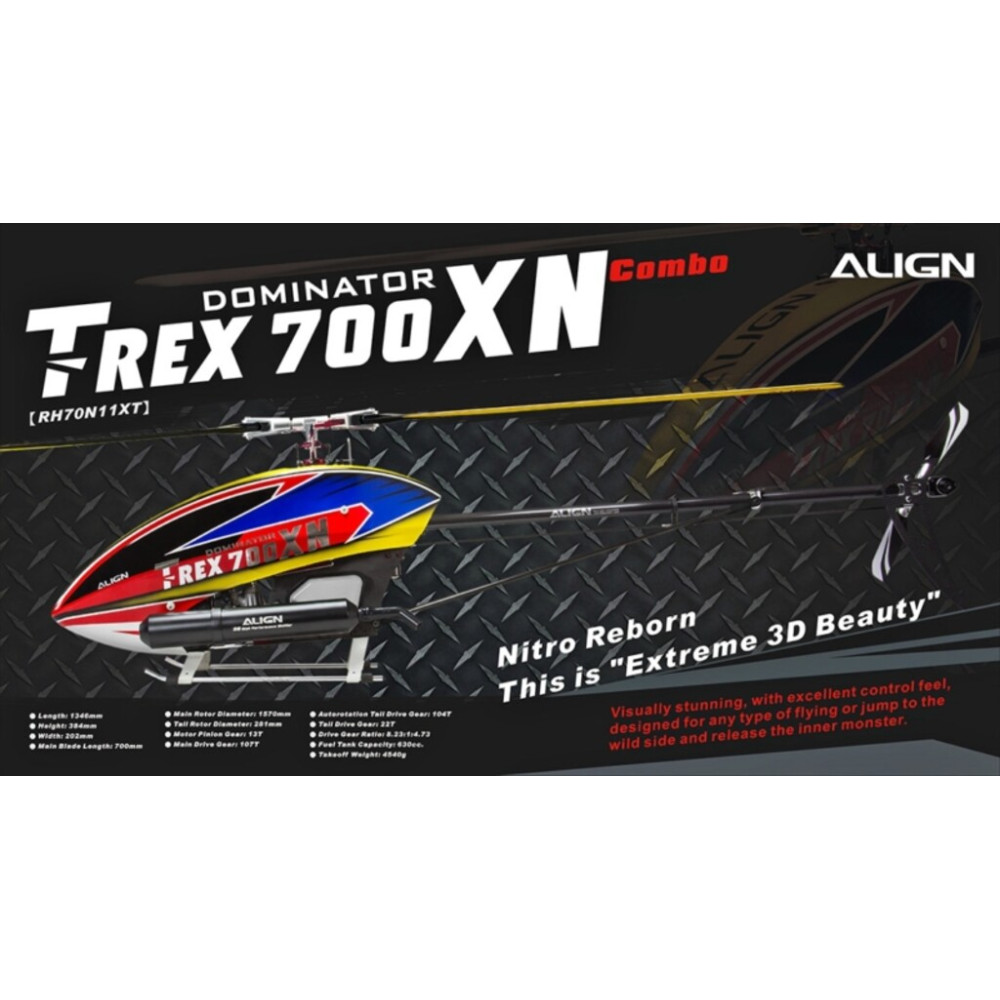

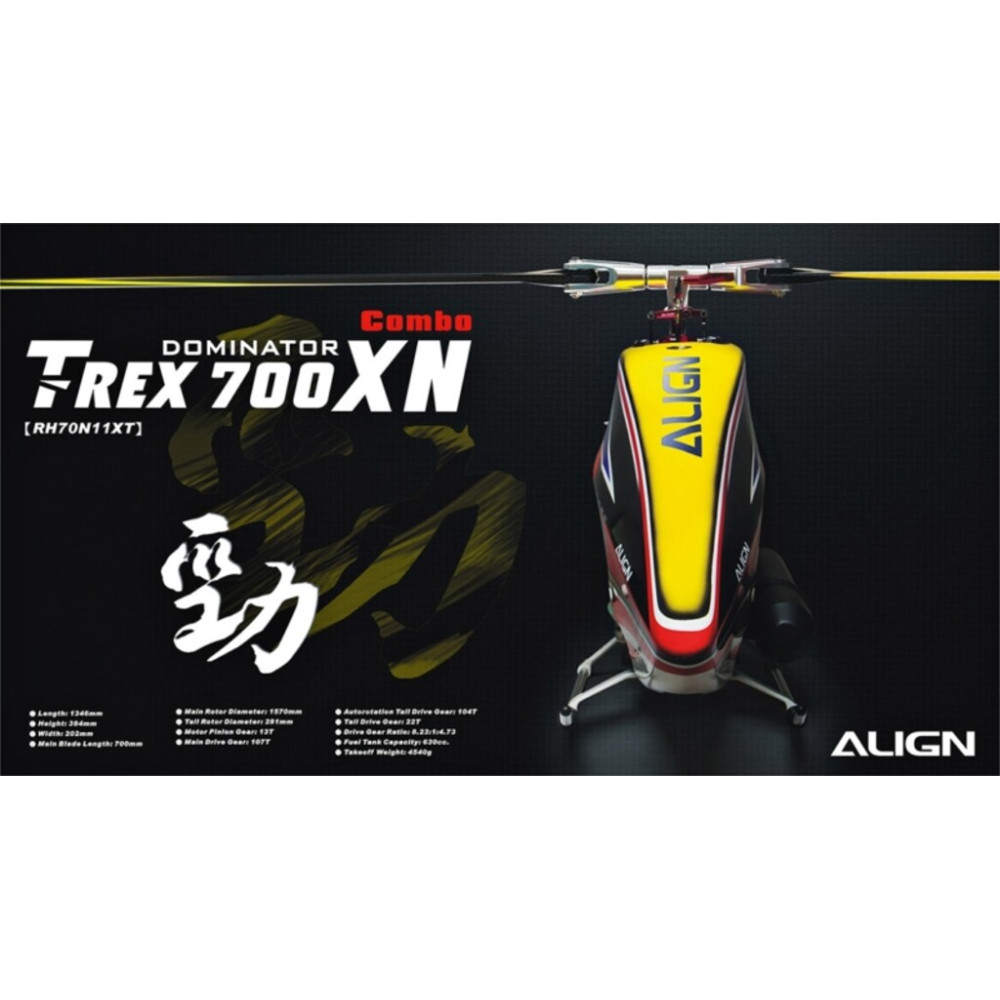

T-REX 700XN NITRO COMBO RH70N11XT

T-Rex 700XN is a perfect blend of technology created by a new combination of innovation, steel, light weight material, and precision manufacturing.
T-REX 700XN adopts the new direct to swashplate servo design, compared with previous generation T-REX 700N double push-pull mode control, providing precise and fast control! The 700EFL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. Designed to maintain a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior and stable flight performance. Engineered Narrow Body Design efficiently decreases gear abrasion and frame deformation during flight. T-REX 700XN maintain the proper Center of Gravity CG, moving the engine forward allowing the fuel tank to be positioned in the center of the main shaft to maintain consistent CG as the fuel level changes during flight.
The new steel alloy clutch liner is durable with temperature control to avoid damage to clutch liner or clutch housing, the lifetime is over 1000 flights. Receiver mount provides cable and wiring protection, easy to maintain and assemble by removing a few screws from the mainframe.
For electronic equipment, high voltage output: 6A 7.4V BEC with down / regulation system for stable power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos. The brand new DS820M/DS825M high voltage brushless servo and brushless motor for fast speed, high torque, and superior, efficient reaction time allows the Align 700XN precise, fast performance. The new CNC machined aluminum case design is aesthetically appealing while acting as a highly efficient heat sink.
The new generation of T-REX 700XN has a number of innovative designs, detonating your inner soul and brings out your passion to fly!

After performing many tests to determine the most efficient aerodynamic canopy we are pleased to release this brand new lightweight canopy! This ultimate canopy made of glass and carbon fiber is lightweight and achieves best dynamic performance. Also a new unique paint scheme for the newest member of the T-REX family.

Specifically designed for a nitro helicopter to provide superior flight stability, and enhance the power for better control. A new blonde yellow layering paint scheme creates a stylish look.

Landing skid is tilted 5 degree forward which improves crashworthiness.

Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The Align T-REX new narrow body design is stronger and increases flight durability.

The new direct to swashplate servo design provides precise and fast control. Designed to maintain a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior and stable flight performance.

Align Advanced Metal Swashplate strongly connects to the rotor holder grips preventing rotor head disengagement during intense flight. Two optional linkage ball mounting holes allow for personal selection of resolution based on desired flight performance.

Two new CNC blade holder arms are extraordinarily clean and smooth in appearance. After several modifications, we are releasing the new 3D Blade Holder Arms allowing for excellent fine accuracy control and effectively doubling flight stability, stimulating infinite flight possibilities.

Receiver mount provides cable and wiring protection, easy to maintain equipment by removing a few screws from the mainframe.

Maintaining the proper Center of Gravity CG is important for helicopters. After extensive Research and Development, moving the engine forward allowed the fuel tank to be positioned in the center of the main shaft. This optimum location for the fuel tank permits the 700XN to maintain consistent CG as the fuel level changes during flight.

The idler pulley helical gear improves rotation stability and effectively reduces the load from the gears while increasing bearing capacity. The gears made of steel alloy are high strength and wear resistant.
The new steel alloy clutch liner is durable with temperature control avoiding the exploding clutch liner or breaking clutch housing.

CNC metal reinforcement plate and brace align with frame mounting bolts effectively increasing the torsional strength of the mainframe. Under extreme 3D maneuvers, you can feel the improved reinforcement to the mainframe. Also, the plate helps with engine cooling and adds additional protection for the motor.

Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and superior, efficient reaction time allows the Align 700XN precise, fast performance. The brand new DS820M high voltage brushless servo has a with a new CNC machined aluminum case. The new aluminum case design is aesthetically appealing while acting as a highly efficient heat sink for superior protection of the servo.

High voltage output: 6A 7.4V BEC with down / regulation system for stable power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos.

An integrated motor mounting bracket allows for efficient heat dissipation from the motor. The superior Cooling Motor Mount is CNC from high strength aluminum alloy, and anodized for aesthetically pleasing appearance.

Electric component included:
