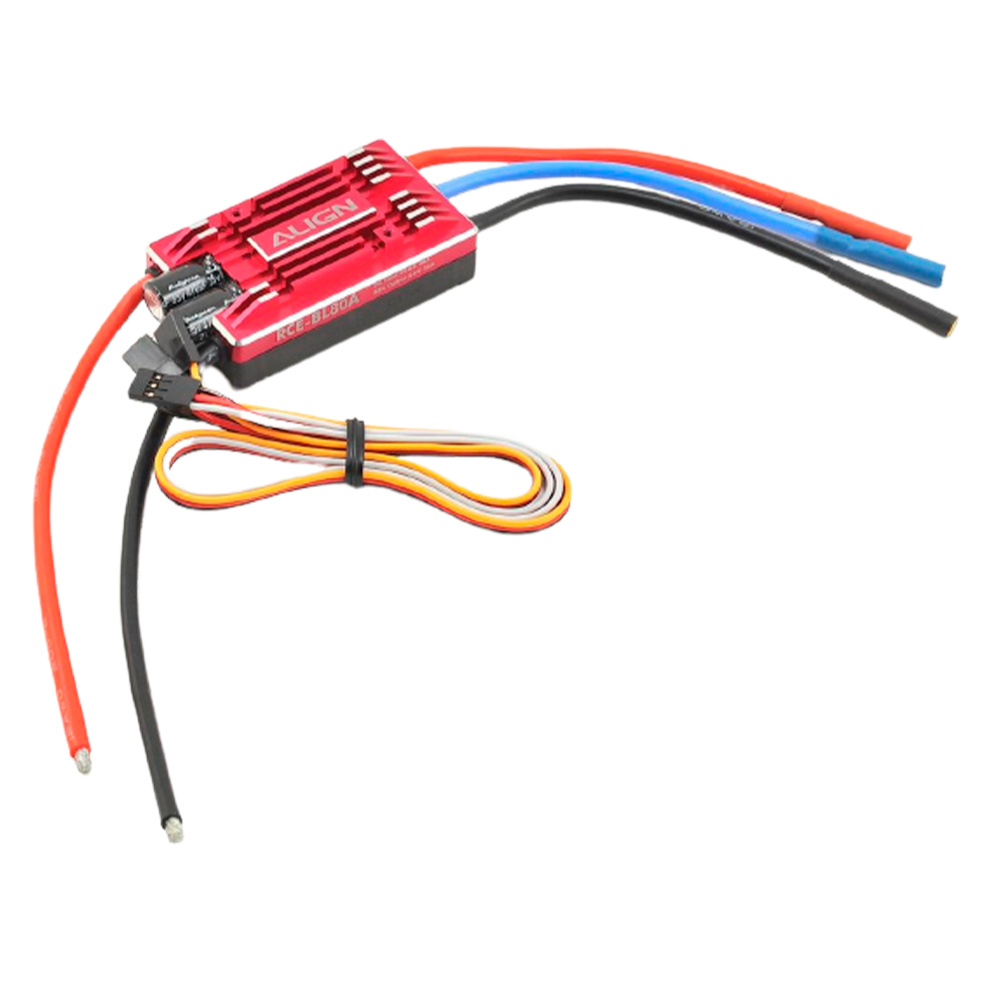

SPEED ALIGN RCE-BL80A HES08003T

Product:

Instructions:

Brand new ESC controller is built-in with BEC voltage setting, allow for continuous current 10A and more, also support surge current support up to 25A, much powerful and precision. Moreover, it utilize with high quality 32 bit M4 ARM processor and superior governor performance, support the best flight performance for all pilots in every level.

Specifications:

• 1. Superior 32 bits M4 ARM Processor
• 2. High Quality MOSFET
• 3. Adjustable Voltage and 10A Large BEC
• 4. Excellent Governor Function
• 5. Cool ESC Temperature Keep it Much Reliable
• 6. Support ASBOX Multifunction Programmer Set Up Suitable for T-REX 500X/500L/500PRO DFC

Features:

• For more detailed information, please refer to the Power Tip
• Contimuous current: 80A
• Surge current: 100A
• Supporting input voltage: 3S~6S LiPo / 11.1V~22.2V
• Supporting battery types: Li-Poly 3~6 cells
• BEC output: 5~8V, Continuous 10A / Surge 25A
• Size: 70x38.2x20.4mm
• Weight: Approx. 97g Accessories: ?Heat shrink tube x 2 (Red, Black)
• Hook and loop tape x 2
