MOTOR HPI .18 NITRO STAR G3.0 15105

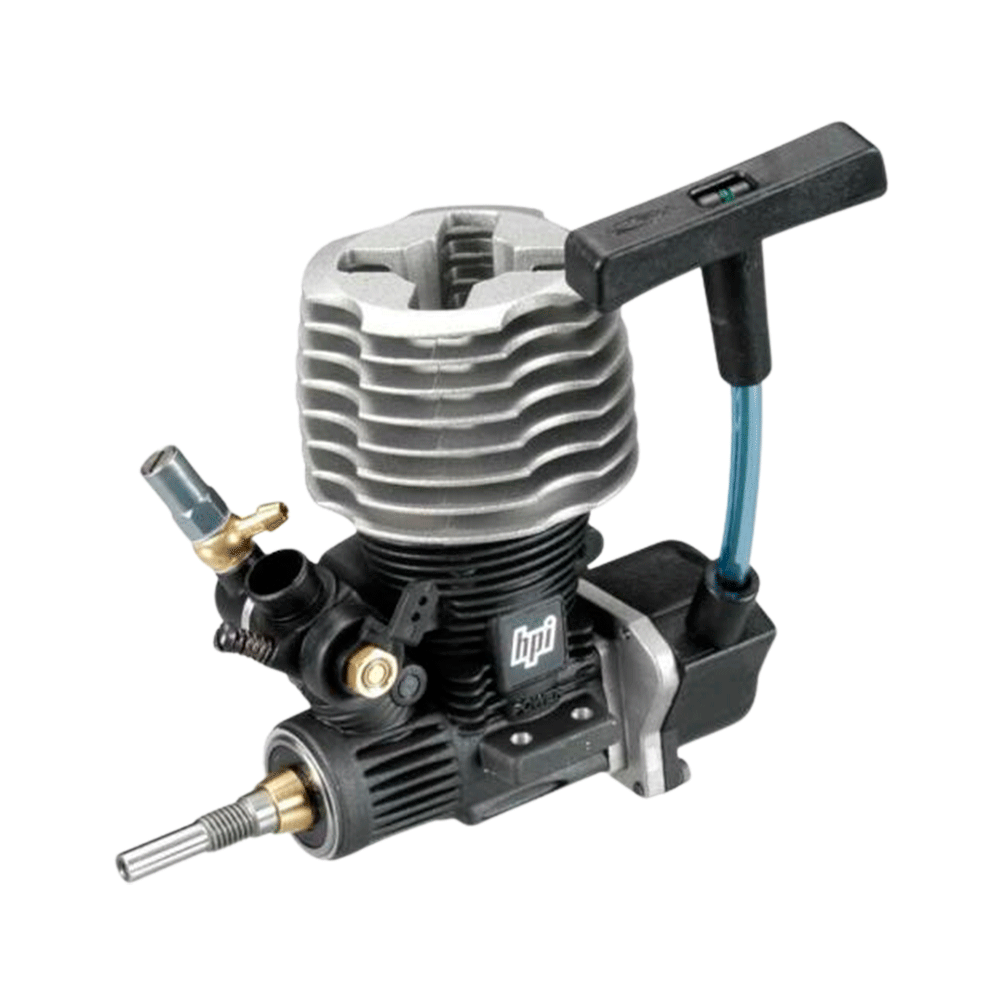

This is the HPI Nitro Star G3.0 Engine with Pull Starter used in the HPI Fire Storm HPIC0510.

FEATURES:

• Composite body rotary valve carburetor with 5.5mm bore
• Silver colored cooling head SG (pilot) type crankshaft
• Two year limited warranty

INCLUDES:

• HPI Nitro Star G3.0
• Engine with Pull Start
• instruction manual
• R5 cold glow plug (HPIG1504)
• foam air cleaner assembly with four zip ties
• brass collet

REQUIRES:

• Fuel: Car blend with 20-25% nitro content
• Misc Items: Fuel tubing and track equipment

SPECS:

Specs such as horsepower, bore, stroke and RPM were not provided

High Speed Needle Setting:

• Turn clockwise in 1/8 turn increments to lean fuel mixture.
• Do not exceed 2-1/2 turns from flush

Idle Adjustment:

• Adjust for about 0.04" (1mm) gap between slide valve and carb body at bore opening Low Speed Needle: No adjustment recommended
• Displacement: .18 cu in (3.0cc)

• Distance Between Mounting Holes Same Side: 0.43" (11mm)
• Distance Between Mounting Holes Opposite Side: 1.22" (31mm)
• Height/Bottom Mounting Flanges to Top of Cylinder Head: 2.99" (76mm)
• Height/Bottom of Crankcase to Top of Cylinder Head: 3.5" (89mm)
• Length from Pull Starter to End of Crankshaft: 4.13" (105mm)
• Length from Pull Starter to Front Bearing: 3.3" (75.3mm)
• Length from Center of Crankcase to End of Crankshaft: 2.96" (75mm)
• Diameter of Carburetor Bore: 0.21" (5.5mm)
