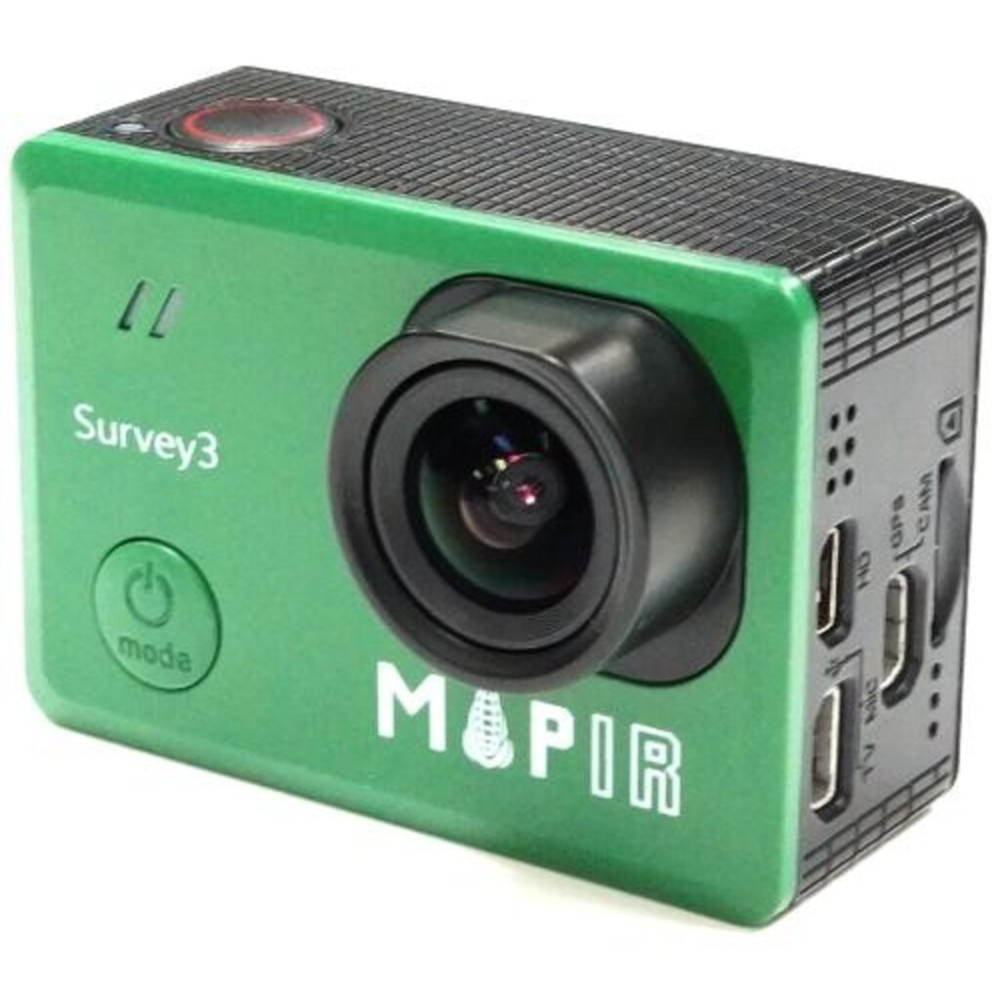

MAPIR SURVEY 3W VISIBLE LIGHT RGB

  • Código: 265577
  • Marca: MAPIR
  • Estoque: Disponível

0 comentários / Escreva um comentário

  • $449,99

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.


The Survey3 is the newest in our line of simple to use survey cameras. Every Survey3 camera includes an external USB GPS receiver to automatically geo-tag each captured image. Its 12MP sensor and sharp non-fisheye lens allows you to easily capture aerial media. It captures photos on the default timer trigger or can be sent a PWM signal through the HDMI port (see below). If you supply power to the USB port it will power on the camera automatically. Sized similar to a GoPro® Hero these small survey cameras can be attached to your aerial drone platform using our various mounts.

This RGB model captures visible light just like our eyes do. A visible light camera for surveying is commonly used for capturing a reference color image that can be used to compare to a NDVI graded one. It can also be used for orthophotography where many photos are combined to generate a 3D model.

The Survey3 cameras have a faster interval timer: 1.5 seconds for JPG mode and 2.75 seconds for RAW+JPG mode. (Capture speed depends on the speed of the microSD card used). You can also trigger the photo capture using a PWM signal through the HDMI port (see triggering information below).

PWM can also be used to mount the camera's memory card to a computer connected via USB.



Specifications

  • Image Resolution: 12 MegaPixel (4,000 x 3,000 px), 8MP
  • Image Format: RAW+JPG, JPG (RAW is 12bit per channel, JPG is 8bit per channel)
  • Video Resolution: 2160p24, 1440p30, 1080p60, 720p60
  • Video Format: MP4 (H.264 Codec)
  • Lens Optics: 87° HFOV (19mm) f/2.8 Aperture, -1% Extreme Low Distortion (Non-Fisheye) Glass Lens
  • Ground Sample Distance (GSD): 5.5 cm/px (2.17in/px) at 120 m (~400 ft) AGL
  • Sensor: Sony Exmor R IMX117 12MP (Bayer RGB)
  • Chipset: Novatek NTK96663
  • GPS/GNSS (External): ublox UBX-G7020-KT
  • Capture Speed: RAW+JPG: 2.75 Seconds / Photo. JPG: 1.5 Seconds / Photo
  • Remote Trigger: PWM via HDMI Port (see below)
  • Battery: Removable Li-ion (1200mAh) (Not Required When USB Powered)
  • Power Draw: 5.2V 0.2A (Without Battery), 5.2V 0.4A (With Battery)
  • Weight: 50g (1.8 oz) (Without Battery), 76g (2.7 oz) (With Battery)
  • Dimensions: 59 x 41.5 x 36mm (Length x Height x Depth)
  • Memory Storage: Micro SD (Up To 128GB Card) (64GB Card ≈ 15,000 JPG, 2,200 RAW+JPG)
  • White Balance: Auto / Daylight / Cloudy / Tungsten / Fluorescent / Blue / Light Blue / Red / Light Red / Custom*
  • Capture Interval: 0.5sec*, 1sec, 2sec, 5sec, 10sec, 30sec, 1min, 5min, 10min, 30min, 1hour, 2hours, 6hours, 12hours, 24hours
  • ISO: 50* / 100 / 200 / 400, Auto
  • Shutter Speed (s): 1/2000, 1/1000, 1/500*, 1/250, 1/125, 1/90, 1/60, 1/30, 1/15, 1/8, 1, 2, 3, 5, 10, 15, 20, 30, 60, Auto
  • Exposure: +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0
  • Metering: Average / Center* / Spot
  • Color: Normal* / Black and White / Sepia / Vivid
  • Sharpness: Strong / Medium* / Soft
  • Capture Mode: Single* / 3 Sequence / 10 Sequence
  • LCD: 2.0” Ultra Bright Color LCD Touch Screen
  • Video Out: HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)
  • TV Mode: NTSC* / PAL
  • Power Input: Battery, USB (Micro-A Cable Included, Optional Micro USB FPV Cable)
  • Auto Power On (When Power Applied to USB Port): ON* / OFF
  • OSD Language; English*, French, Spanish, Portuguese Brazil, Dutch, Czech, Polish, German, Italian, Chinese, Russian, Japanese, Korean
  • Frequency: 60Hz* / 50Hz
  • OSD Display: ON* / OFF
  • Date Stamp: ON / OFF*
  • Sound: ON* / OFF
  • Quick Capture: ON / OFF*
  • Auto Power Off: OFF* / 1min / 3min / 5min / 10min / 15min / 30min / 60min
  • Auto Sleep LCD: 1min* / 3min / 5min / OFF
  • Vertical Rotate: ON / OFF*

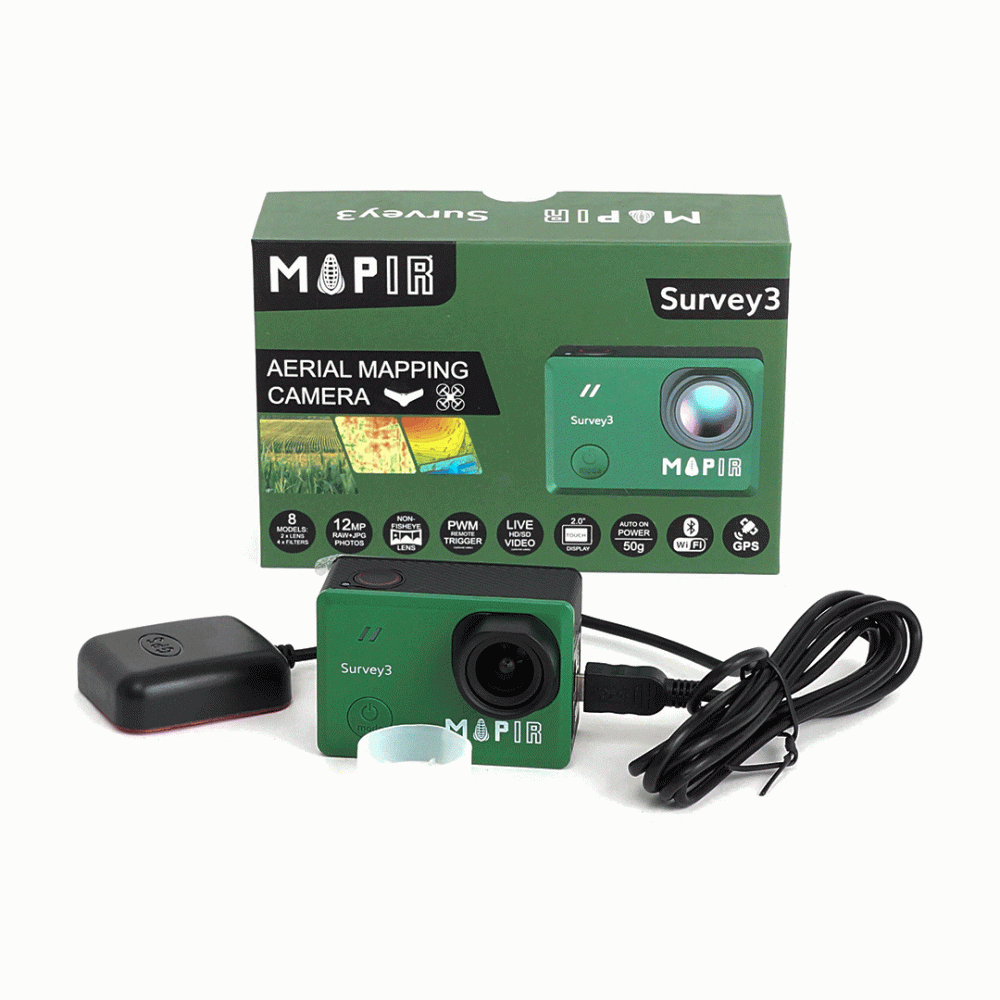

  • Included Accessories: USB GPS Receiver, Battery, Lens Cap, USB Charge Cable, Manual



Included:

  • (1) Survey3 Standard GPS Receiver (we recommend upgrading ABOVE to the Advanced GPS for better results)
  • (1) Survey3 Camera Battery
  • (1) Protective Silicone Lens Cap
  • (1) USB Charging Cable



Recommended:

  • Reflectance Calibration Target - Normalize Your Results
  • PWM Shutter Trigger Cable
  • USB FPV Power Cable
  • Survey3/2 Glass Lens Protector
  • Memory Card
