R8CH RG812BPX DMSS XBUS JRPR03461

Overview

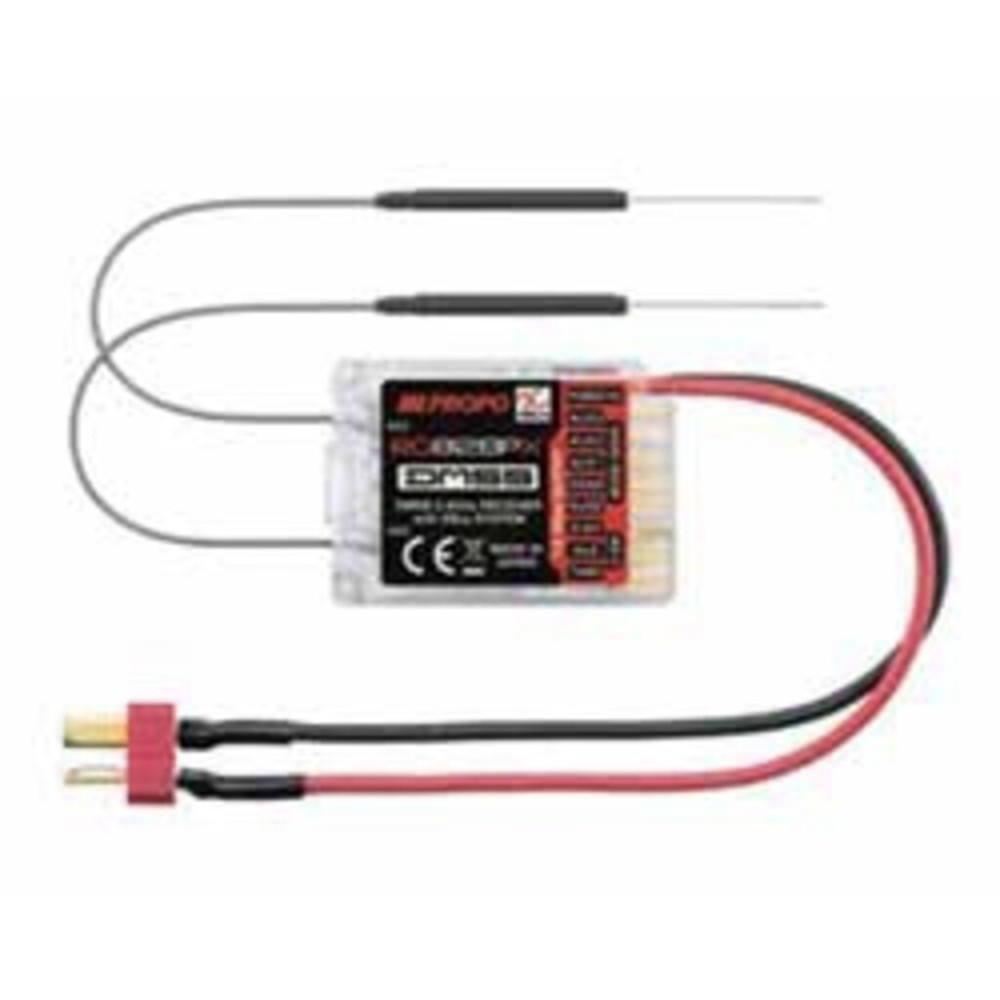

JR - JRPR03461 - RG812BPX 8CH 2.4GHz DMSS XBus Receiver

The new RG812BPXs 8-channel DMSS receiver not only offers the benefits of a power buss power distribution security, but also features a unique “hybrid port” system that allows all 8 servo ports to be used either as conventional PWM servo ports, or as a direct XBus serial connection, eliminating the need for an XBus connection hub.

Ideal for small gas or large electric airplanes where weight and simplicity are desired, the RG812BPXs heavy-duty 18 AWG power leads with Deans Ultra connector will provide constant voltage even in high-current applications such as extreme 3D flight. As an added layer of safety, the RG812BPX features a built-in soft switch designed to fail ‘on so that should the switch fail in flight, power to the receiver will not be interrupted.

The RG812BPX utilizes JRs robust DMSS modulation system that combines attribute from both DSSS and FHSS modulation into a wide-band transmission system with high-speed response and high resistance to RF noise. Also unique to DMSS is JRs Intelligent Output System (IOS), which automatically selects control signals that need to be transmitted simultaneously and delivers the data as one complete signal frame. IOS ensures there is no time delay when commanding servos used for critical functions such as a CCPM swashplate on a helicopter or with an aircraft with multiple servos ganged on a single control surface. This gives a stronger connection in flight and can reduce wear on components, keeping your model flying better, longer.

Not only does this receiver listen, but it talks back as well. DMSS is a bi-directional communication system that delivers real-time telemetry information. Receiver voltage telemetry is standard with every DMSS receiver, and add-on sensors are available to monitor nearly every metric vital to the operation of your mode.

Features

JR - JRPR03461 - RG812BPX 8CH 2.4GHz DMSS XBus Receiver

• Heavy duty power input leads with Deans Ultra connector provide constant voltage to the
• servos in power-hungry, high-current demand setups
• JRs patented Intelligent Output System (IOS) which sends data from all channels as one
• complete signal frame, eliminating lag.
• Supports real-time telemetry data
• Cross-modulation restricted; robust DMSS link is highly resistant to noise from FHSS or
• DSSS modulation transmitters and other RF noise
• Failsafe support on all channels
• Status condition LEDs
• Compact, lightweight (30g) design
• Receiver Voltage Telemetry: Standard
