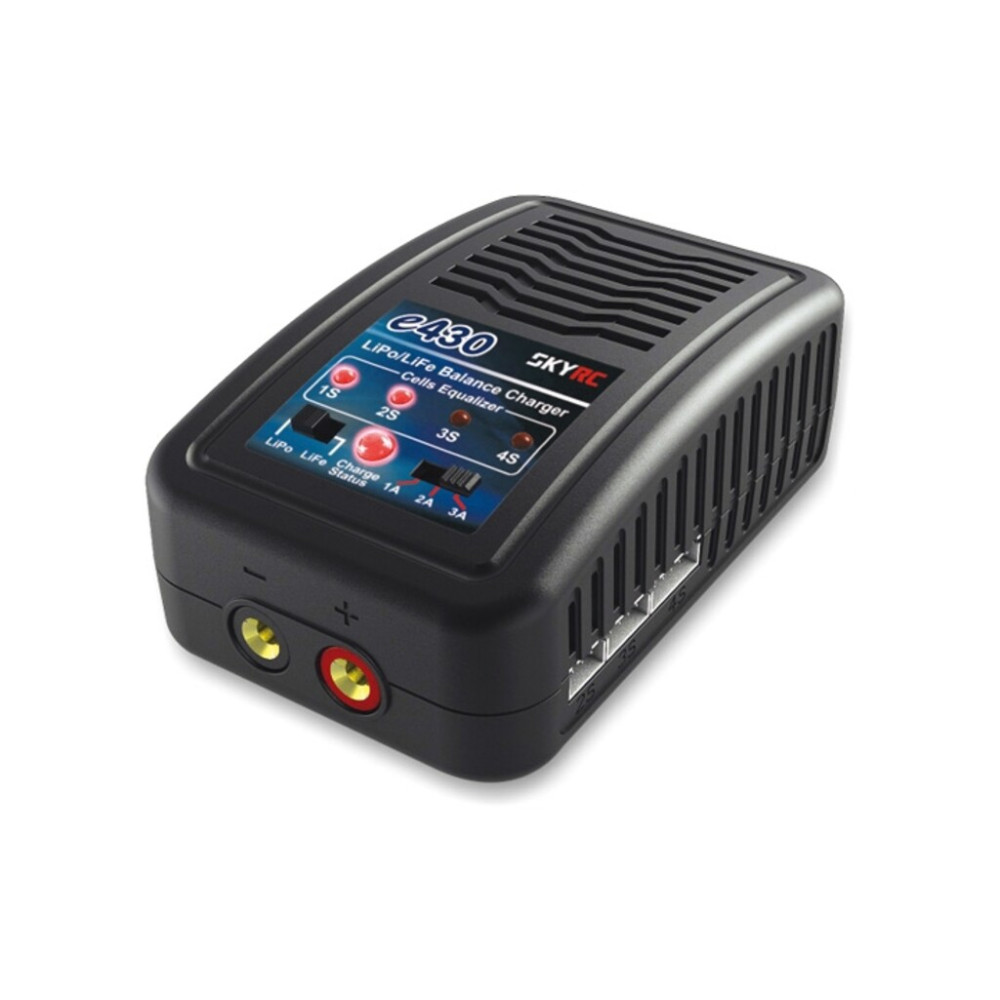

IMAX CHARGER E430 LIPO/LIFE 2-4S AC SK-100107-02

Description:

The SkyRC e430 charger is a high quality economical 100-240VAC charger designed to charge 2-4 cell LiPo and LiFe batteries in balanced mode. The circuit power is 30W and the maximum charging current can reach 3A. There are three types of charging current 1A / 2A / 3A can be selected. You can select the appropriate charging current according to the battery capacity.

Explanation of LED Status

Charge Status LED

• LED green blinking The charger is ready to charge.
• LED glows constant red The charger is charging in CC mode.
• LED glows constant orange The charger is charging in CV mode.
• LED glows constant green The charging process finishes.

Cell Status LED

• LED glows constant red The cell is charging.
• LED flashes red The cell is discharging.

Specifications

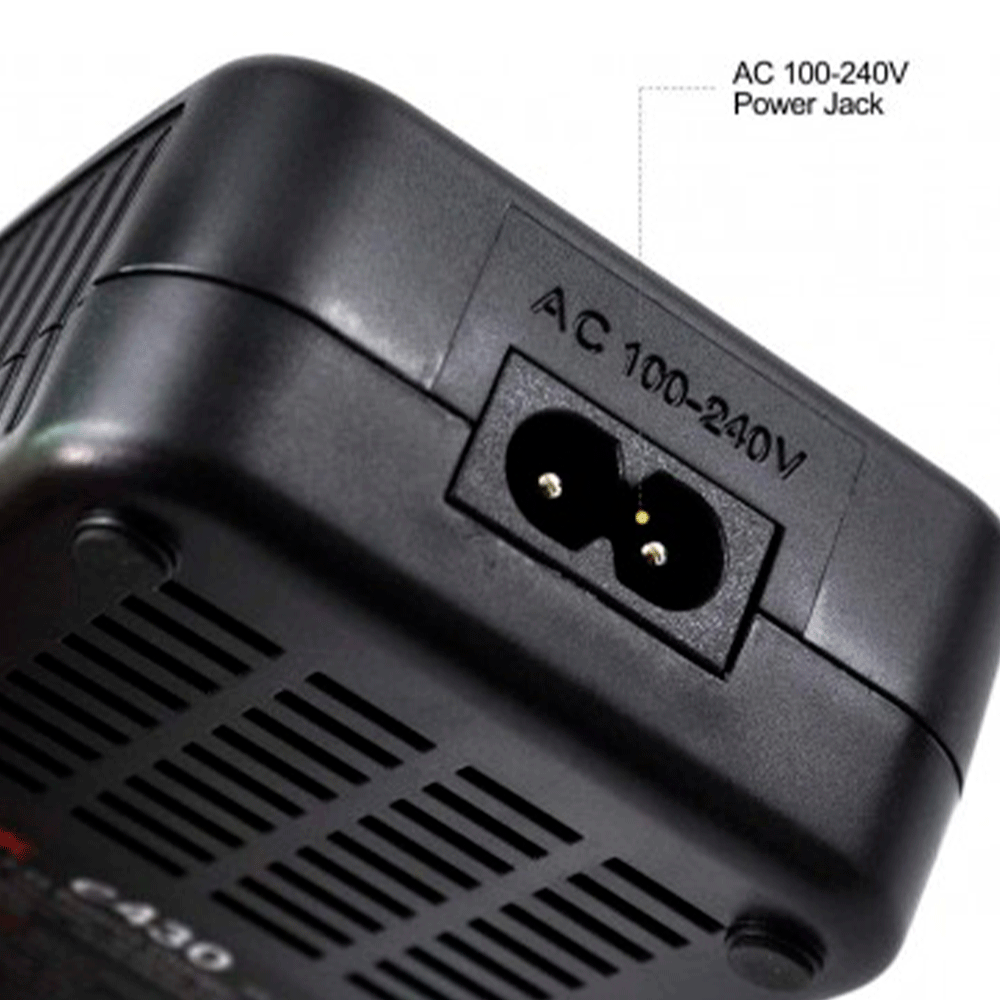

• AC Input - 100-240V
• Battery Type - LiPo/LiFe
• Cell Count - 2-4 cells
• Charge Current - 1A/2A/3A ± 10%
• Circuit Power - 30W
• Current Drain for Balancing - 200mA
• Weight - 193g
• Length ： 110.7mm
• Width  ： 69.4mm
• Height ： 40.5mm

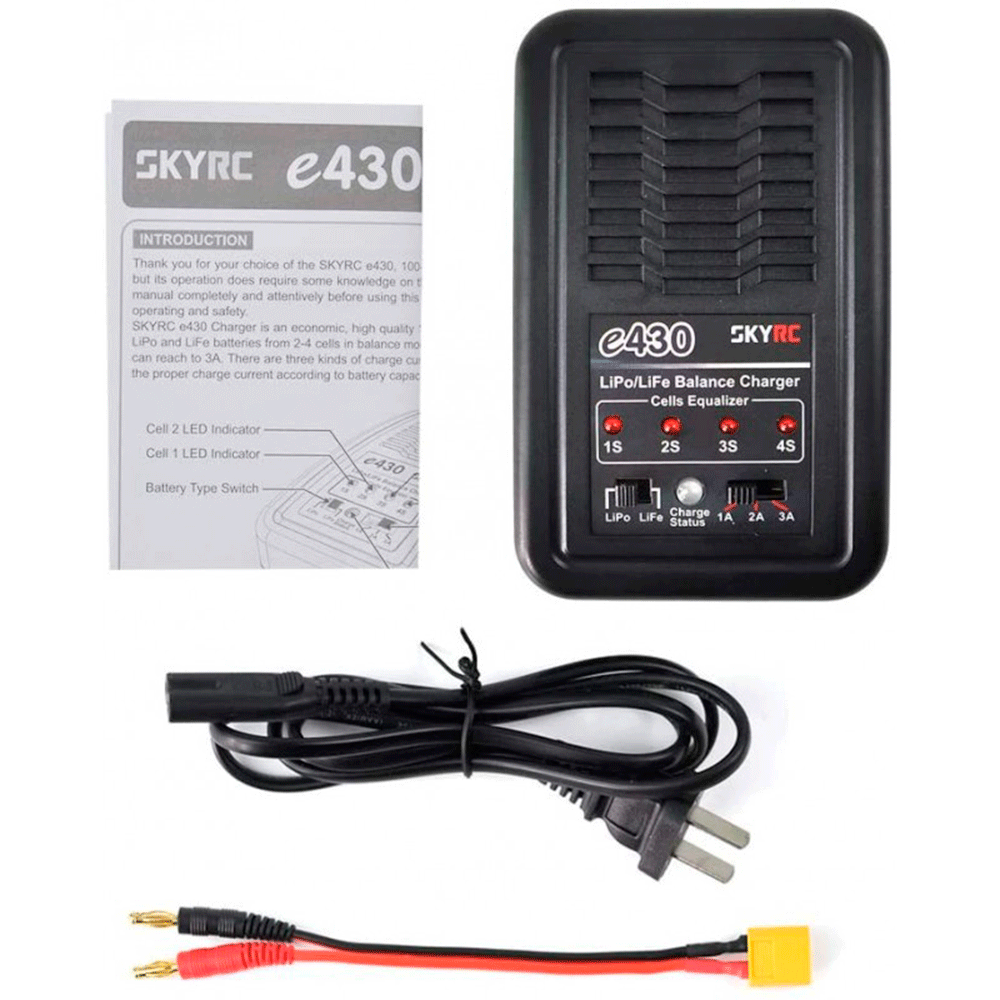

What’s in the Box

e430 Charger

AC Power Cord

XT60 Charging Cable

Instruction Manual
