COMPRESSOR CP101 AIRBR HOBBICO HCAR4051

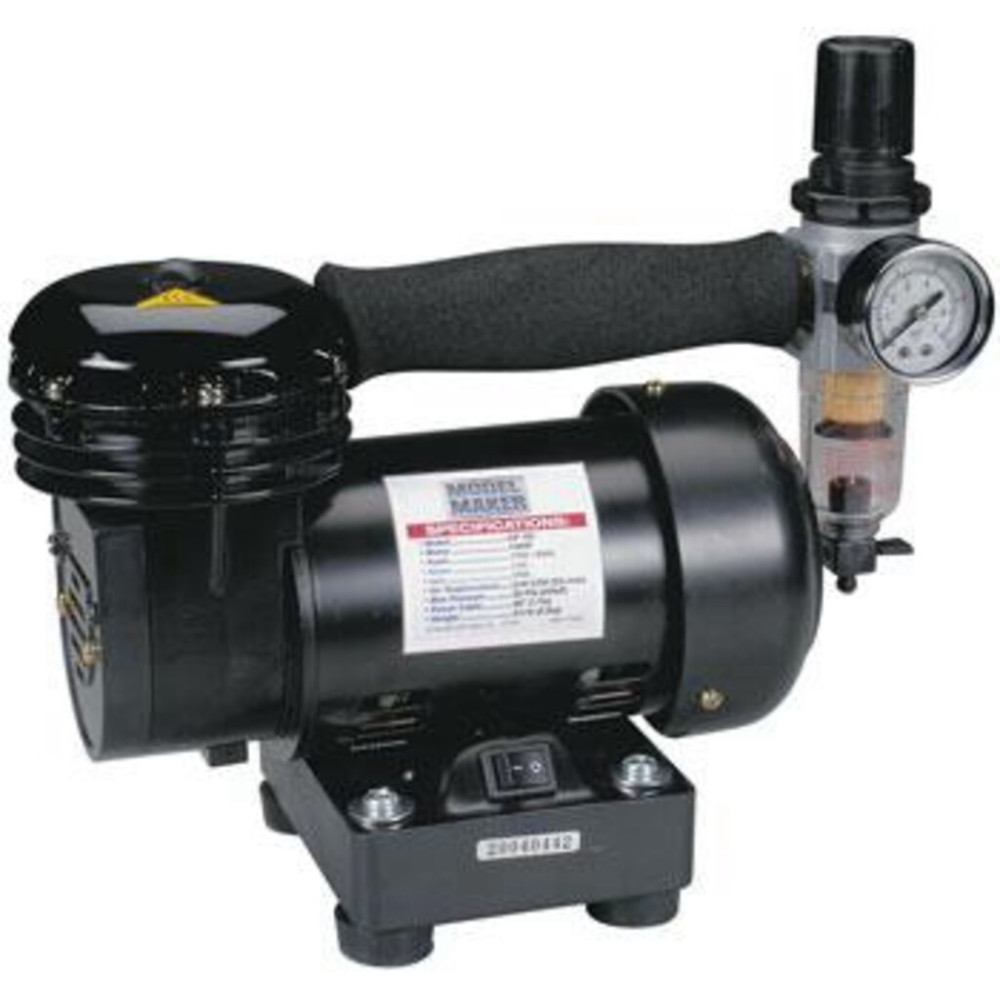

This is the CP101A Mini Air Compressor with Regulator from Model Maker.

FEATURES:

Quiet diaphragm-type compact design

Durable cast aluminum body

All moving parts use sealed oil-less bearings

Maintenance-free operation

Cushioned handle

Manual ON/OFF switch

Suitable for use with all airbrushes

Filters dirt and grime from air source

INCLUDES:

One CP101A compressor

One Regulator w/Filter & Water Trap

One 1/8" to ¼" adapter (male threads)

One ¼" to ¼" adapter (male threads)

One instruction sheet

REQUIRES:

Correct adapter for airbrush hose (SEE COMMENTS)

SPECS:

Horsepower: 1/8 HP

Input power: 110V/60Hz

Amps: 1.0A

RPM: 1700 rpm

Air Displacment: .90CFM (25L/min)

Max Pressure: 50psi (345kP)

Power Cable: 68" (1.7m)

Weight: 9.5lbs (4.3kg)

COMMENTS:

Adapters needed:

-Regulator to 5mm , use HCAR4105

-Regulator to 1/8", use HCAR4106

NNA 12/29/04
ir/jxs
