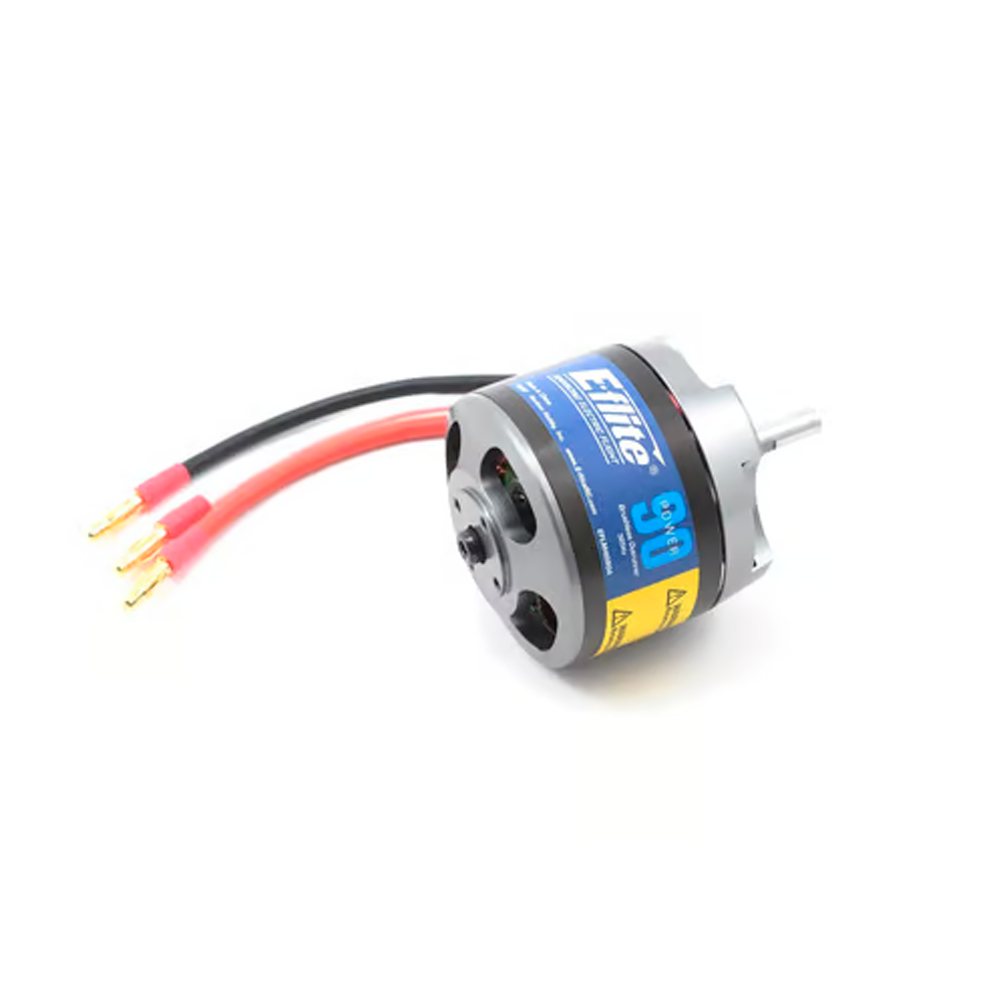

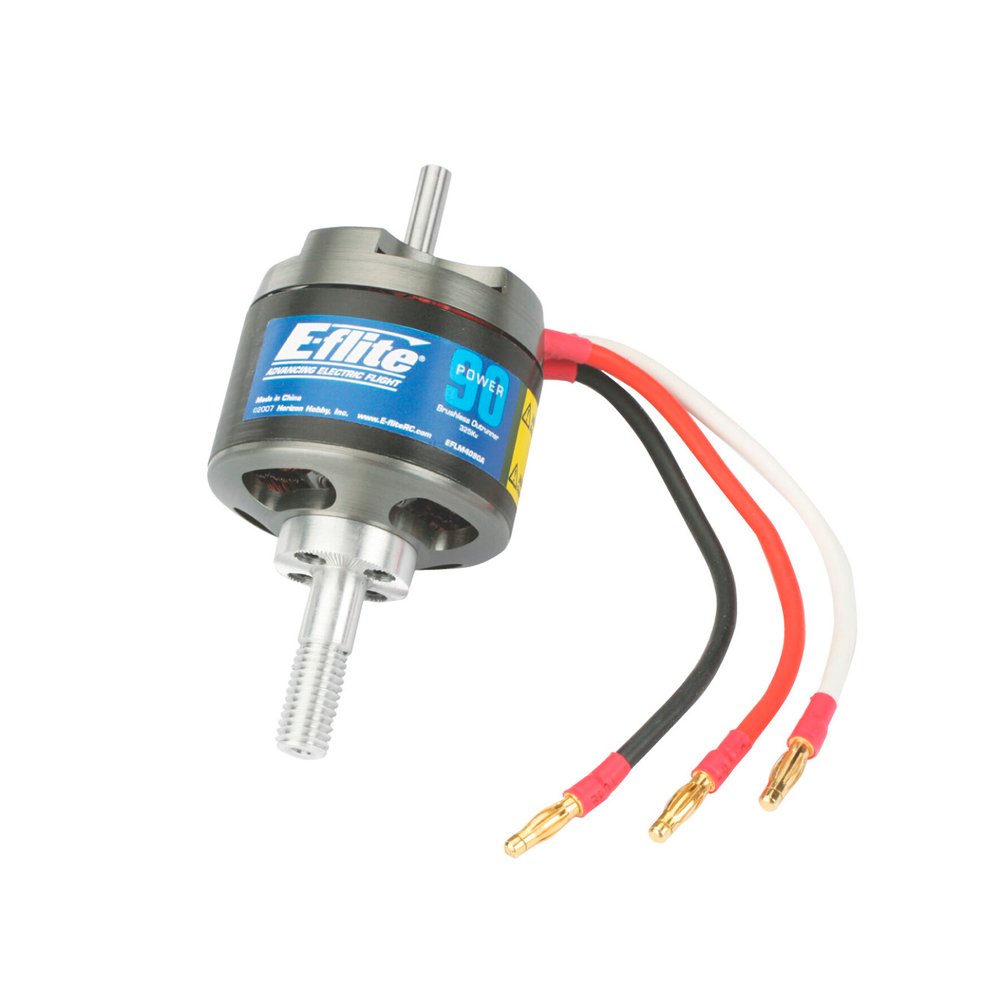

MOTOR E-FLITE POWER 90 BLX OUTRUNNER 325KV (4MM) EFLM4090A

  • Código: 240505
  • Marca: E-FLITE
  • Estoque: Disponível
  • $149,00

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.


Key Features

Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lb (3.6 to 5.9 kg)

Ideal for 3D airplanes weighing up to 10 lb (4.5 kg)

Ideal for models requiring up to 1800 watts of power

High torque, direct drive alternative to inrunner brushless motors

External rotor design for better cooling

High-quality construction with ball bearings and hardened 6mm steel shaft

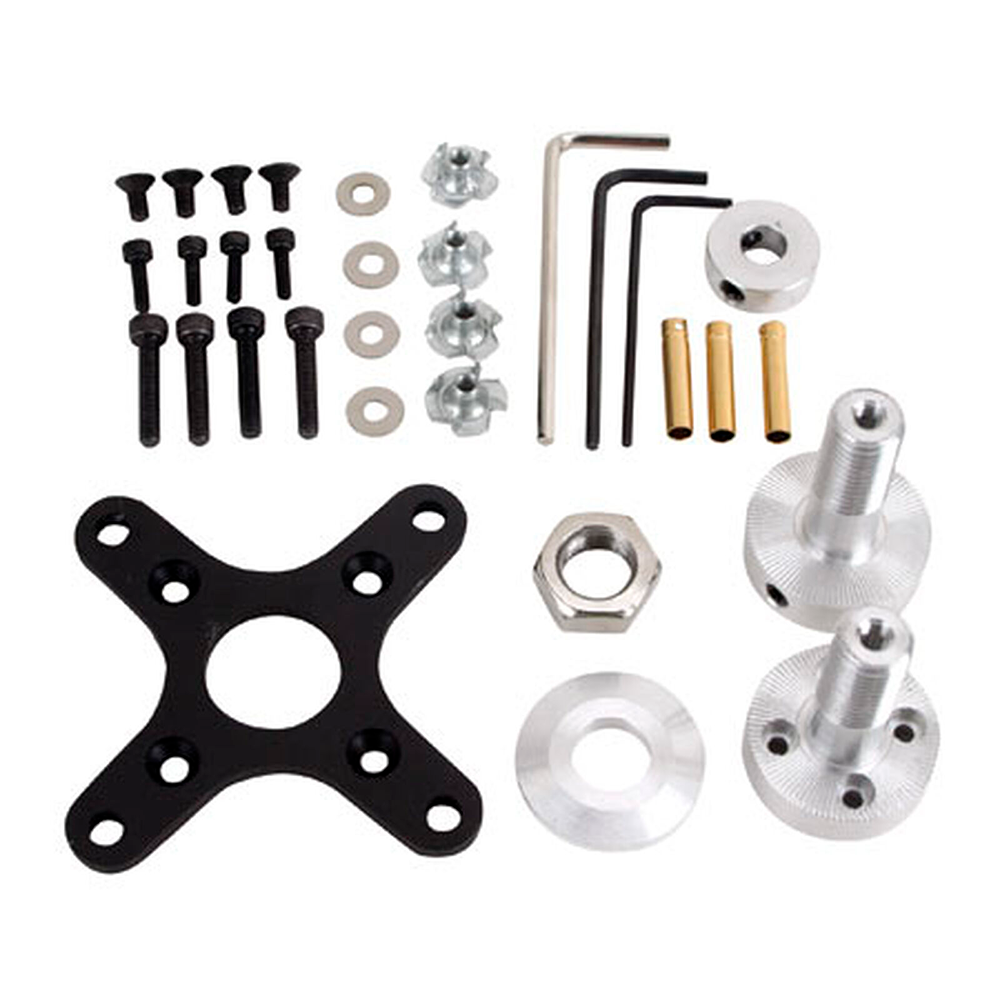

Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads

Slotted 14-pole outrunner design



Needed To Complete

6S–8S Li-Po or 18-26 Ni-MH /Ni-Cd

16x8 to 18x8 electric props

85A High Voltage Brushless ESC



Overview

Designed to deliver clean and quiet power equivalent to or surpassing the power of a 90-size 2-stroke glow engine for sport and scale airplanes weighing 8 to 13 pounds (3.6 to 5.9 kg), 3D airplanes up to 10 pounds (4.5 kg), or models requiring up to 1800 watts of power. It will provide excellent 3D performance for the Hangar 9 Frenzy 100 ARF, ShowTime 4D 90 ARF, Funtana X 100 ARF and other similar class models. The Power 90 also provides great power and performance for the Seagull Ultimate Bi-Plane 90 ARFs.



Specs

Bearings or Bushings: One 6 x 19 x 6mm bearing and One 6 x 15 x 5mm Bearing

Cells: 6S–8S Li-Po or 18–26 Ni-MH/Ni-Cd

Idle Current (Io): 2.00A @ 10V

Overall Diameter: 56mm (2.20 in)

RPM/Volt (Kv): 325Kv

Recommended Prop Range: 16x8 to 18x8

Resistance: 02 ohms

Shaft Diameter: 6mm (.24 in) (Includes two 10mm threaded prop shaft adapters with 1.5 pitch)

Size: 60-110 Electric

Speed Control: 85A High Voltage Brushless

Voltage: 21.6–31.2V

Wire Gauge: 13 AWG
