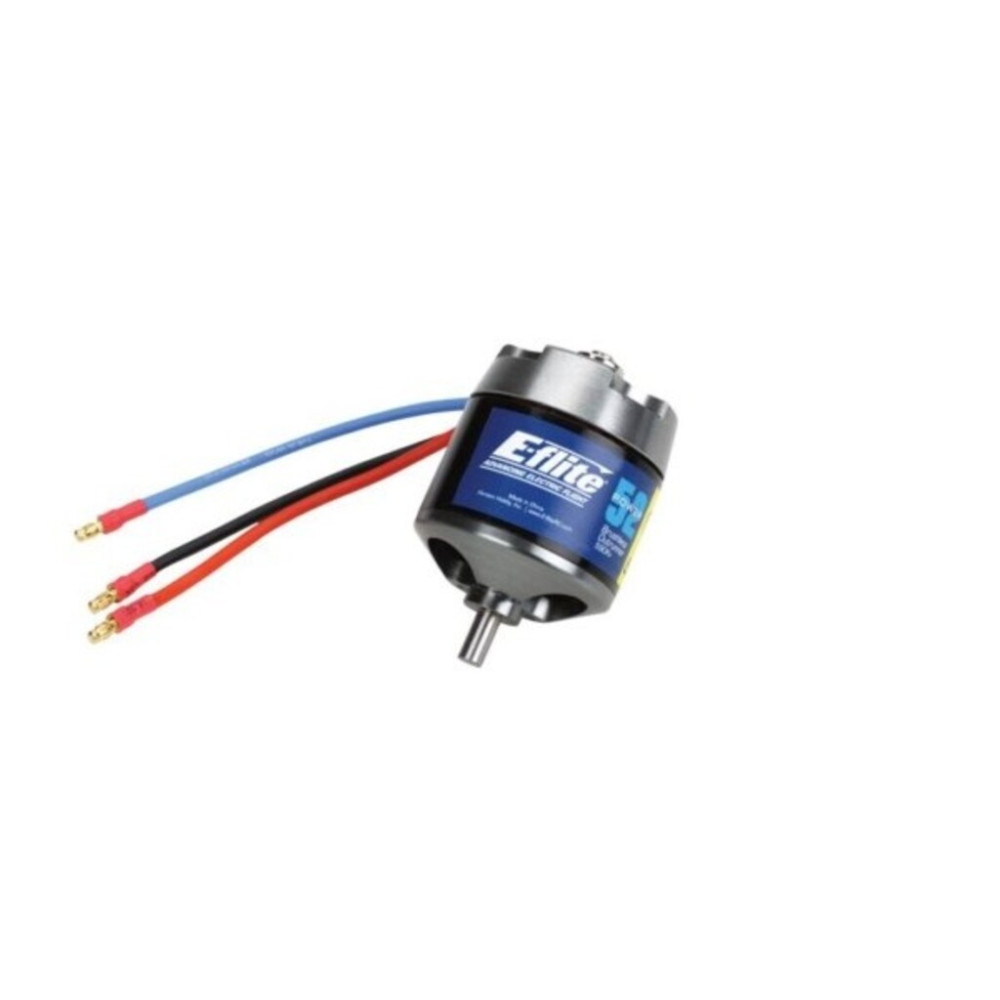

MOTOR E-FLITE POWER 52 BLX OUTRUNNER 590KV (4MM) EFLM4052A

  • Código: 240482
  • Marca: E-FLITE
  • Estoque: Indisponível
  • $119,99

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.


Key Features

Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.

Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)

Ideal for models requiring up to 1650 watts of power

High-torque, direct drive alternative to inrunner brushless motors

Includes mount, prop adapters and mounting hardware

Quiet, lightweight operation

External rotor design 6mm shaft can easily be reversed for alternative motor installations

High-quality construction with ball bearings and hardened steel shaft

Slotted 14-pole outrunner design



Needed To Complete

80-Amp brushless ESC

4S–6S Li-Po or 14- to 16-cell Ni-MH/Ni-Cd Battery

14 x 7 to 12 x 8 Propeller



Overview

Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power.




Specs:

Adjustable Timing: No

Cells: 14–20 Ni-MH/Ni-Cd or 4–6S Li-Po

Connector Type: 4mm Bullet

Idle Current (Io): 2.3A @ 18.5V

Input Voltage: 14.8–22.2V

Input Watts: Up to 1650

Motor Type: Brushless Sensorless Outrunner

Overall Diameter: 2.00 in (50mm)

RPM/Volt (Kv): 590

Recommended Prop Range: 4S: 14 x 7 - 15 x 8; 5S: 13 x 8 - 15 x 7; 6S: 11 x 10 - 12 x 8

Recommended Speed Control: 80-Amp

Resistance: 0.016Ω

Shaft Diameter: 6mm

Shaft Length: 3.1 in (80mm)

Size: Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine
