S9177SV DIGIT SBUS HIGH TORQUE 01102266-3

FEATURES

For airplane usage

Dual ball bearing output

Metal gears

May be connected to a PC by using the CIU-2 USB adapter

not included, separate purchase required

May be used in SBus and SBus 2 ports

Aluminum center case for efficient heat dissipation

One year warranty through Hobby Services beginning at date of purchase

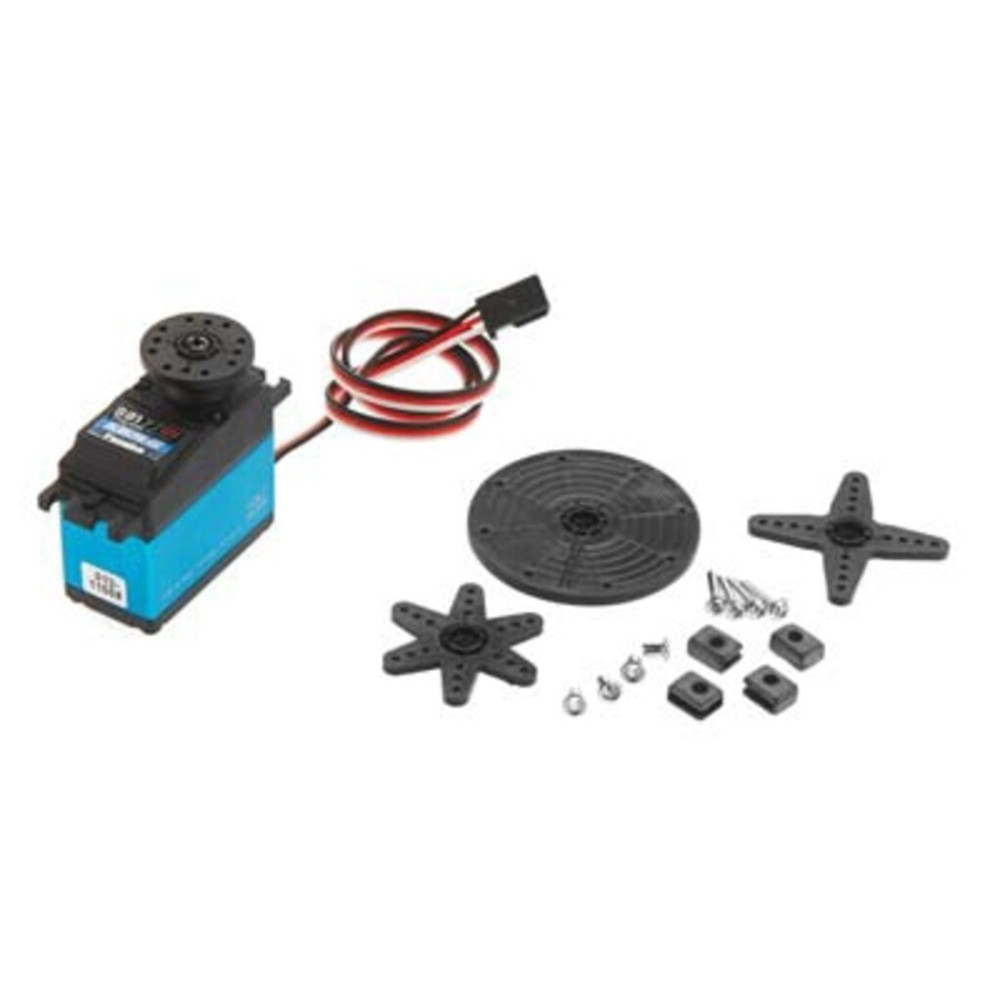

INCLUDES

S.Bus2 S9177SV Servo

0.83" (21mm) diameter Round Horn

1.8" (45mm) diameter Round Horn

1.5" (39mm) Four Point Horn

1.2" (32mm) Six Point Horn

Four each Grommets, Eyelets and Mounting Screws

Servo Horn Screw

Instruction Sheet

SPECIFICATIONS

6.0V 6.6V 7.4V

Torque: 466 oz-in 512 oz-in 569 oz-in
33.6 kg-cm 36.8 kg-cm 41 kg-cm

Speed: 0.13 sec 60° 0.12 sec 60° 0.11 sec 60°

Dimensions: 1-5/8 x 13/16 x 1-1/2" (41 x 21 x 37mm)

Weight: 2.6oz (74g)
SBus Programmable Defaults

Dead Band Degree: 0.36

Damper Factor: 144

Stretcher Gain: 1

Boost: 5

Neutral Offset Degree: 0

Travel Adjust Percentage: 100%

Reverse (Normal/Reverse): Nor

Stop Mode (Free/Hold): Hold

Buzzer (On/Off): Off

Smoother (On/Off): On

Boost (On/Off): Off

Soft Start: 3.0
