CARREGAD.BALANC. LIPO EQUINOX GPMM3160

Is a full charge too much to ask?
ElectriFly doesn't think so

Sometimes, all it takes to turn jitters before a maneuver into an "Ahhh!" afterwards is just a little bit more power from your pack. That requires getting the most from each cell – and that's where ElectriFly excels.

Top-quality Power Series LiPo packs discharge at an impressive 20C rate. And now, they're available in balanced packs which allow you to equalize (balance) the voltage of each cell in a pack.

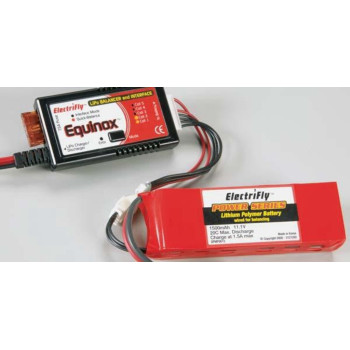

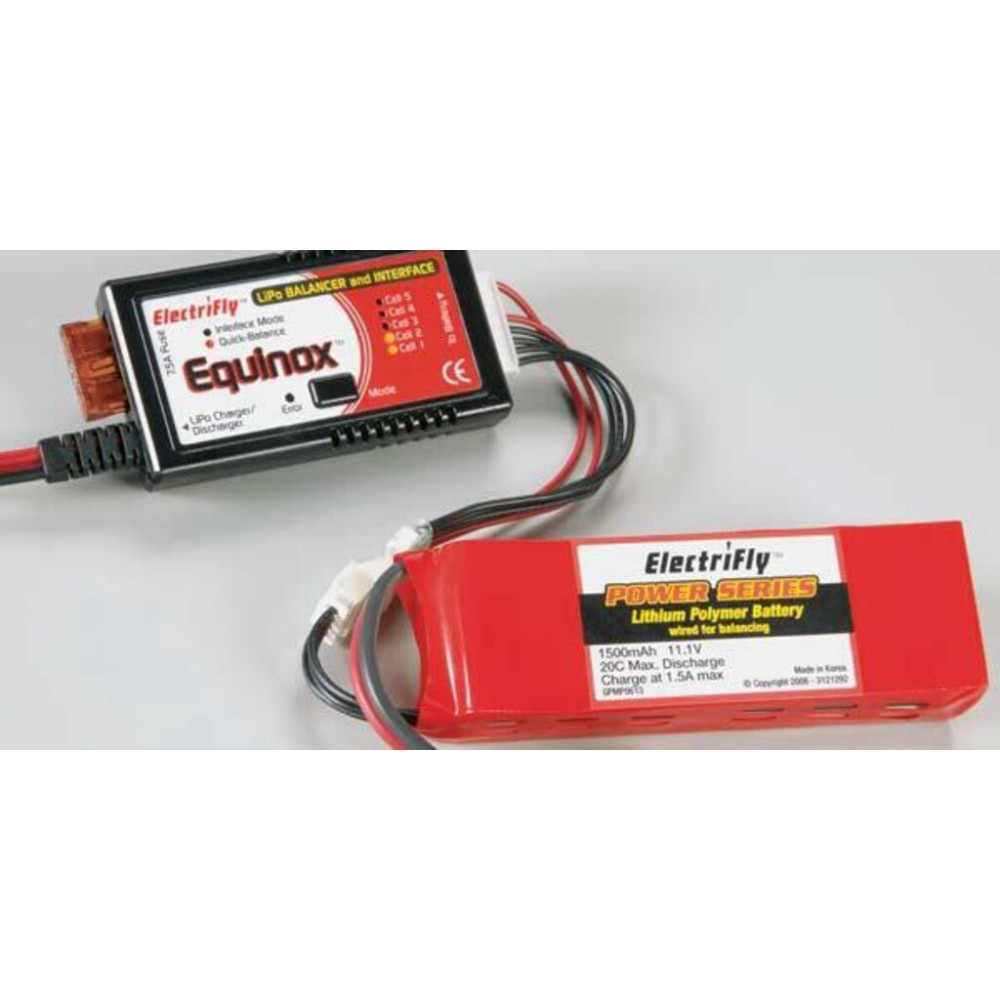

The Equinox LiPo Cell Balancer offers two easy ways to equalize cells and maximize pack performance. Connect it directly to a balanced pack, and it's a gentle cell-by-cell discharger. It starts by bringing the voltages of all cells into balance, and then monitors each cell until it's completely discharged. As a result, the voltages of individual cells end up within just a few millivolts of each other. Connect the Equinox between a balanced pack and a LiPo charger, and it brings all cells into balance at the same voltage, before charging each cell to its absolute, individual peak of power. Using the Equinox LiPo Cell Balancer to discharge or charge is good. Doing both not only ensures maximum voltage from the pack, but longer pack life, as well.

• Easy, push-button operation
• Automatically checks for "bad" cells
• Charges at up to 3A (or 6A w/GPMM3163 [available separately])
• Adapters for 7.4V and 11.1V packs included. (Adapters for 14.8V and 18.5V packs available separately [GPMM3162])
• 8 status LEDs for easy monitoring
• Includes gold-plated banana plugs
• Compact: 3.2 x 1.6 x 0.6 in (82 x 40 x 15 mm)
• Lightweight: 1.55 oz (44 g)
• Overload-protected

Stock Number: GPMM3160
Connect the Equinox to a 2-5 cell (7.4V-18.5V) pack in "Quick-Balance Mode", and it simultaneously balances cell voltages while discharging each cell at a gentle 120mA rate. Discharging terminates when each cell reaches 2.75V. Works with all LiPo packs series-wired for balancing.

In "Interface Mode", the Equinox balances and maintains voltages until each cell reaches its maximum charge (4.2V!). More volts mean more power and more performance for every model, including 3D aerobats! Because cells are balanced, individual cells can't be overcharged. This not only prevents pack failures, but helps packs last longer, too. It eliminates the need for special "balancing" LiPo chargers — and works with all of the chargers shown below. DTXP4170 DuraTrax® IntelliPeak™ ICE™
GPMM3015 ElectriFly PolyCharge™4
GPMM3153 ElectriFly Triton2™
GPMM3152 ElectriFly Triton Jr.
HCAP0280 Hobbico® Accu-Cycle™ Elite
HCAP0290 Hobbico Quick Field Charger MkII

Whether used during charging or discharging, the Equinox Balancer brings the voltage of all cells in a pack to within a few millivolts of each other and then keeps them balanced throughout the process.

Optional adapters: GPMM3161 - Equinox 2S-3S Replace Adapters
GPMM3162 - Equinox 4S-5S Adapters
GPMM3163 - Equinox 2S-5S Hi Power Adapters
GPMM3180 - Equinox 2S Adapters FlightPower
GPMM3181 - Equinox 3S Adapters FlightPower
GPMM3182 - Equinox 4S Adapters FlightPower
GPMM3183 - Equinox 5S Adapters FlightPower
GPMM3185 - Equinox 2S Hi Power Adapters FlightPower
GPMM3186 - Equinox 3S Hi Power Adapters FlightPower
GPMM3187 - Equinox 4S Hi Power Adapters FlightPower
GPMM3188 - Equinox 5S Hi Power Adapters FlightPower
Compatible chargers/dischargers: LiPo chargers and dischargers ONLY
(operation based on nominal cell voltage of 3.7V per cell) Cell balancing range: 2-series to 5-series LiPo packs (7.4 - 18.5V) Discharge cut-off voltage: 2.75V per cell in Quick-Balance Mode
3.0V per cell in Interface Mode (with separate discharger) Quick-Balance discharge current: 120mA Interface Mode maximum current: 3A (or 6A w/GPMM3163 adapter available separately) Overload protection: 7.5 amp auto (spade) fuse Dimensions: 3.23 x 1.57 x 0.59 in. (82 x 40 x 15 mm) Weight: 1.55 oz. (43.8 g)

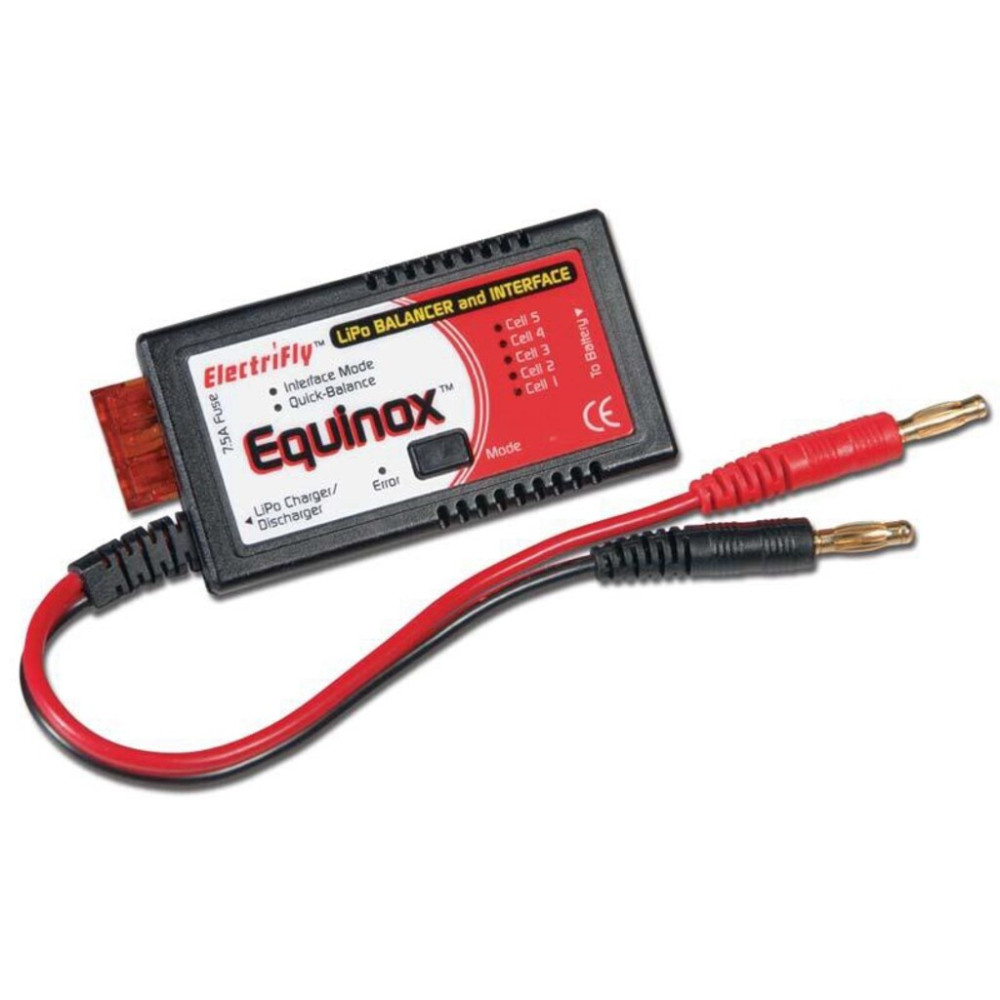

This is the Great Planes ElectriFly Equinox LiPo Balancer. For LiPo (Lithium Polymer) battery packs with 2 to 5 cells, assembled IN SERIES and wired for Balancing. NOT Compatible with LiPo packs having a 2-pin Charge lead.

FEATURES: Regulates voltages of all cells in a Lithium Polymer pack to very tight tolerances during Charge and Discharge functions and provides a safe Charging and Discharging platform which is critical when handling LiPo batteries Eight status LEDs and pushbutton control Gold plated banana plugs on input for easy connection to Charger/ Discharger Automatically checks for poor quality cells Maximum current handling capacity is 3A (current of up to 6A maximum is possible by using high-power adapters available separately, such as GPMM3163).

Unlike some Balancers, Equinox has two separate functions: QUICK-BALANCE MODE: applies a small Discharge current to gently Balance voltages of all cells in a LiPo pack. INTERFACE MODE: allows the Equinox to be used with a separate Charger or Discharger whereby it will monitor and control how each cell in the LiPo pack is Charged or Discharged. Balanced packs typically charge to the fullest possible safe voltage, meaning more power to the motor system. Also, these packs generally last longer as no individual cell becomes overcharged. Overcharging is one reason why LiPo packs fail

INCLUDES: Great Planes ElectriFly Equinox LiPo Balancer with 2S and 3S battery adapters for ElectriFly, Venom, and ESky LiPos which are wired for Balancing Interface Mode and Connection Flowchart and instruction manual

REQUIRES: LiPo batteries with a compatible Balance Connector CANNOT BE USED WITH LiPo PACKS NOT WIRED FOR BALANCING

SPECS:

Compatible Input Devices: LiPo Chargers and Dischargers ONLY (operation based on nominal cell voltage of 3.7V per cell)

Cell Balancing Range: 2-series to 5-series LiPo packs (7.4-18.5V)

Max. Charge Current: 3A (over 3A requires special harness)

Discharge Termination: Auto-cut based on individual cell voltages 2.75V per cell in Quick-Balance Mode 3V per cell in Interface Mode (with separate Discharger)

Quick-Balance Mode Discharge Current: 120mA per cell

Overload Protection: 7.5A auto (spade) fuse

Dimensions: 3.23 x 1.57 x .59 in (82 x 40 x 15mm)

Weight: 1.55oz (43.8g)

COMMENTS: The following adapters are available; Equinox 2S-3S Replacement Adapters GPMM3161 Equinox 4S-5S Adapter Set GPMM3162 Equinox 2S-5S High Power Adapters GPMM3163 GPMM3180 EQUINOX 2S ADAPTERS FLTPOWER (3) GPMM3181 EQUINOX 3S ADAPTERS FLTPOWER (3) GPMM3182 EQUINOX 4S ADAPTERS FLTPOWER (3) GPMM3183 EQUINOX 5S ADAPTERS FLTPOWER (3) GPMM3185 EQUINOX 2S HI POWER ADAPTERS FLIGHTPOWER, THUNDERPOWER (3) GPMM3186EQUINOX 3S HI POWER ADAPTERS FLIGHTPOWER, THUNDERPOWER (3) GPMM3187EQUINOX 4S HI POWER ADAPTERS FLIGHTPOWER, THUNDERPOWER (3) GPMM3188EQUINOX 5S HI POWER ADAPTERS FLIGHTPOWER, THUNDERPOWER (3)
